DTMF MEMORY ENCODER

■ Programming a DTMF tone sequence

DTMF tone sequences are used for autopatching, controlling
other equipment, etc. The transceiver has 16 DTMF memory
channels (d0–d#) for storage of often-used DTMF tone se-
quences of up to 24 digits.
qPush and hold [TONE•DTMF] for 1 sec.
wRotate [DIAL] to select the
[MAIN•BAND].
eRotate [DIAL] to select the desired memory channel, then
push [MAIN•BAND].
• A total of 16 channels, "d0" to "d#" are available.
r Rotate the [DIAL] to select the desired code.

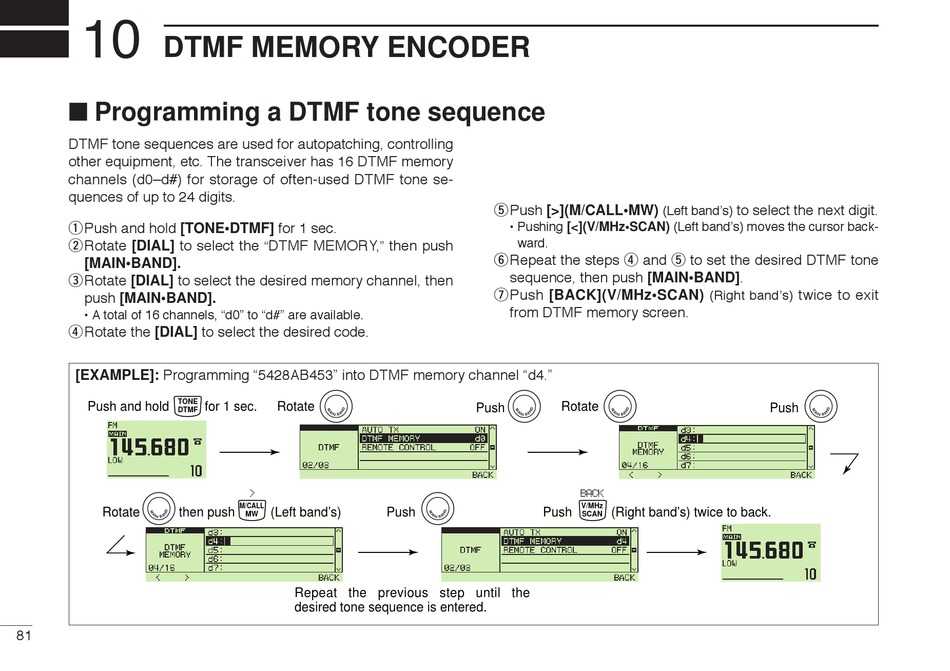

[EXAMPLE]: Programming "5428AB453" into DTMF memory channel "d4."
TONE
Push and hold
DTMF
Rotate then push
81
DTMF MEMORY,
" "
for 1 sec. Rotate
>
M/CALL
(Left band's)
MW
Repeat the previous step until the
desired tone sequence is entered.
t Push [>](M/CALL•MW)
• Pushing [<](V/MHz•SCAN) (Left band's) moves the cursor back-
ward.
then push
yRepeat the steps r and t to set the desired DTMF tone
sequence, then push [MAIN•BAND].
uPush [BACK](V/MHz•SCAN)
from DTMF memory screen.
Rotate
Push
Push Push
to select the next digit.
(Left band's)
(Right band's)
BACK
V/MHz
(Right band's) twice to back.
SCAN
twice to exit
Push
