Figure 1-6 Releasing The Xio Tri-Module - Silicon Graphics Octane2 Manual

007-4209-003
Warning:
The heat sinks on the XIO boards get very hot. Wait 5 minutes after
powering off your workstation before you remove the XIO Tri-Module. Test the
temperature of the heatsinks before handling any of the XIO boards.
2. Grasp the sliding handles and pull until the sliding portion of the XIO Tri-Module
protrudes about an inch from the chassis, as shown in Figure 1-6.
The sliding handles and XIO Tri-Module move out about one inch before the I/O
panels move.

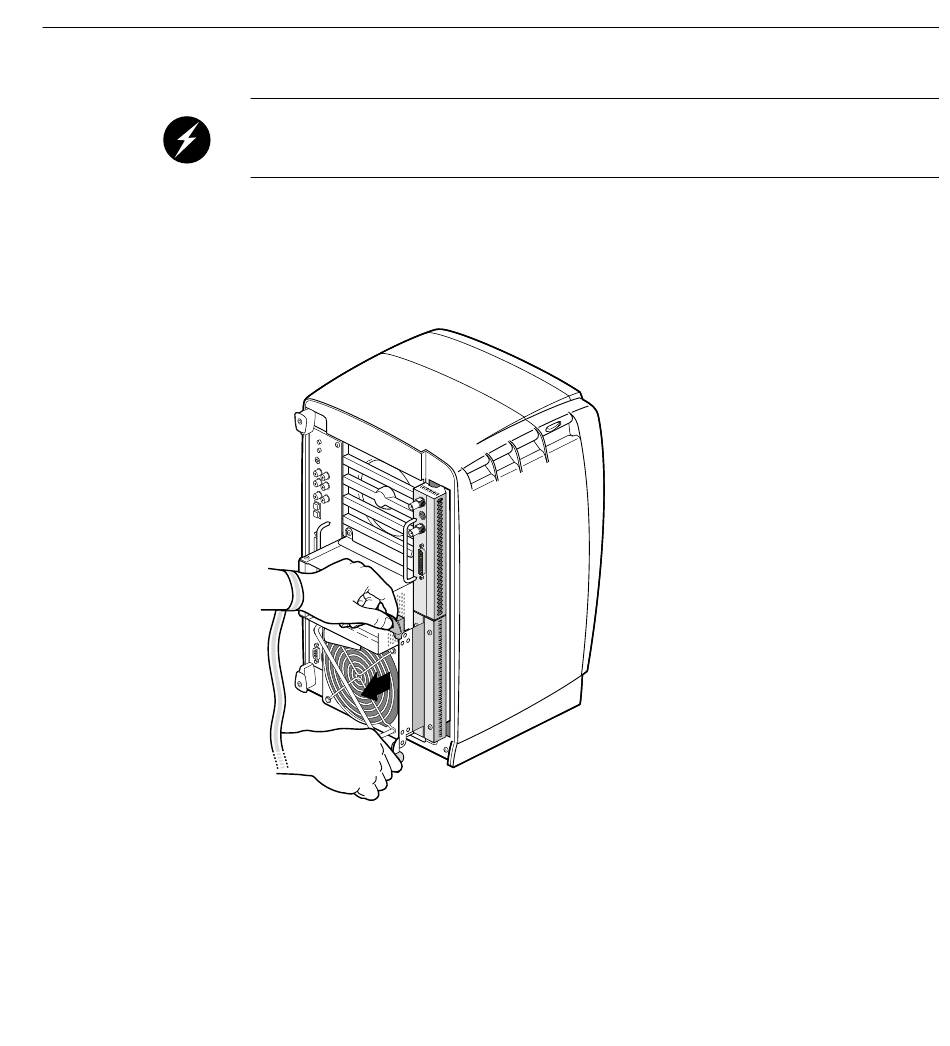

Figure 1-6 Releasing the XIO Tri-Module
