Server Management LAN Connector (GCM)

The main board provides an RJ45 connector for Server Management connection. Below are the pin
descriptions.

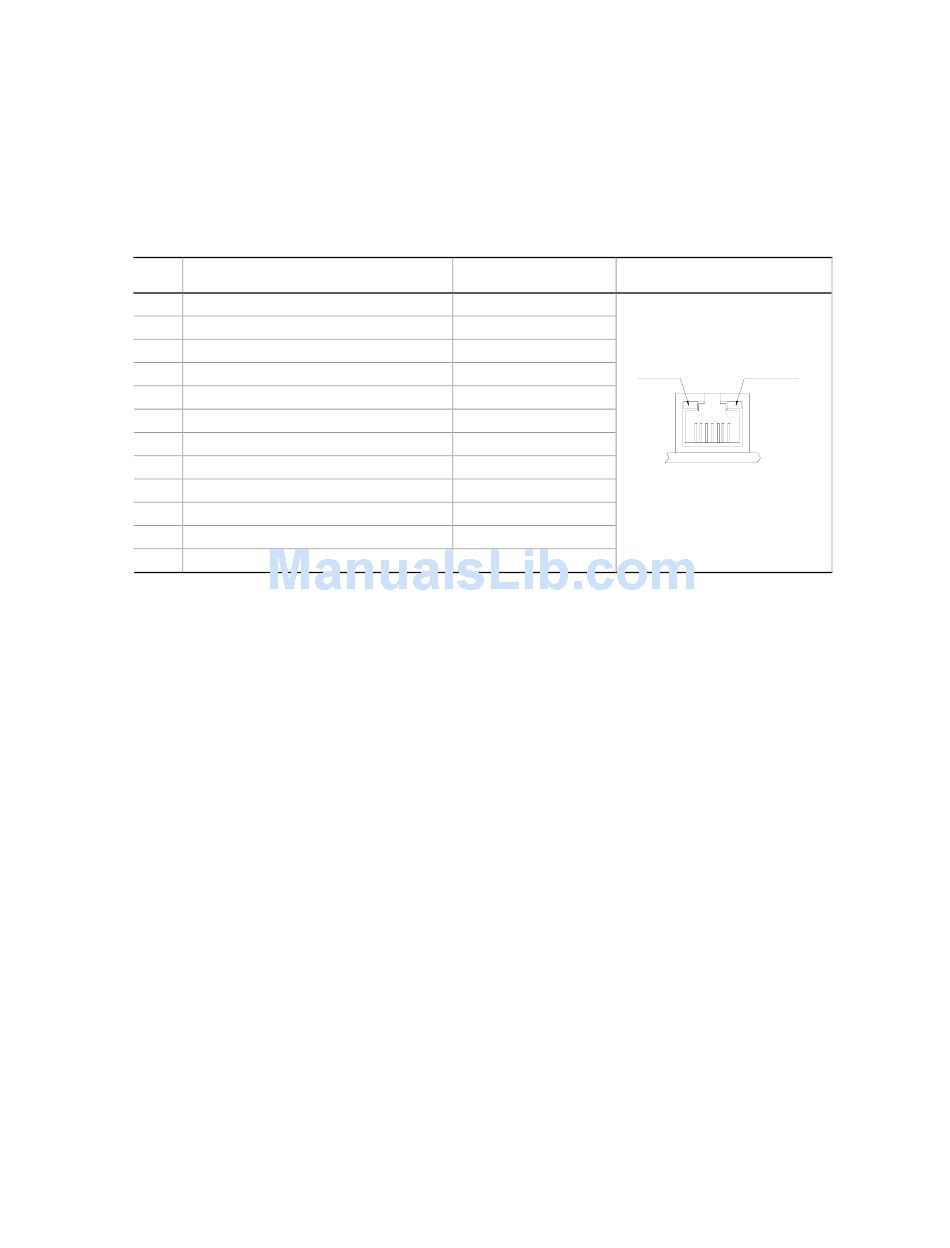

Table 18. Server Management Ethernet Connector
Pin
1 GCM_NIC_RDM
2 GCM_NIC_RDP
3
4
5
6
7 GCM_NIC_TDM
8 GCM_NIC_TDP
A1 TP_GMC_RJ45_YEL_LED_A
C1 TP_GMC_RJ45_YEL_LED_C
A2 GMC_NIC_ACTLED_N
C2 GMC_NIC_ACTLED_R_N
Signal
Magnetics Tap
Magnetics Tap
Magnetics Tap
Magnetics Tap
Yellow LED Anode
Yellow LED Cathode
Green LED Anode
Green LED Cathode
Description Server Management
Ethernet Connector
Green LED
Yellow LED
