Section 3: Instrument description
To turn the beeper on or off from the virtual front panel:
1. Press the MENU key, and then select BEEPER.
2. Select one of the following:
▪
ENABLE
▪
DISABLE
To turn the beeper on or off from the TSP command interface:
Set the beeper.enable attribute. For example, to enable the beeper, send:
beeper.enable = 1

Display mode

Use the DISPLAY key to scroll through the various display modes shown in the figure below. Refer to
Display operations
3-34
Model 2606B System SourceMeter® Instrument Reference Manual
(on page 3-35) for more information about the display.

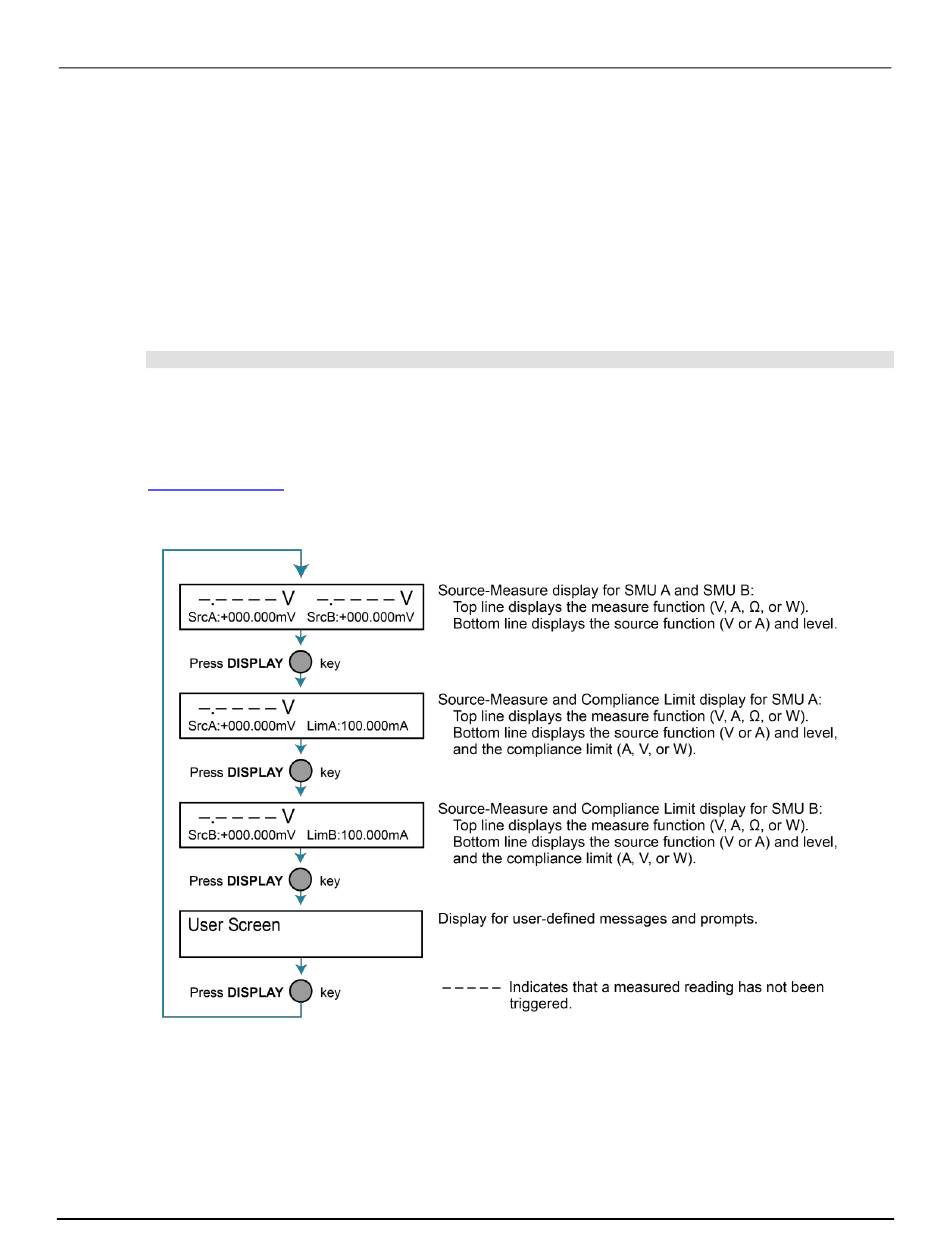

Figure 22: Display modes
2606B-901-01 Rev. C November 2021
