Section 3: Instrument description
LAN status LEDs

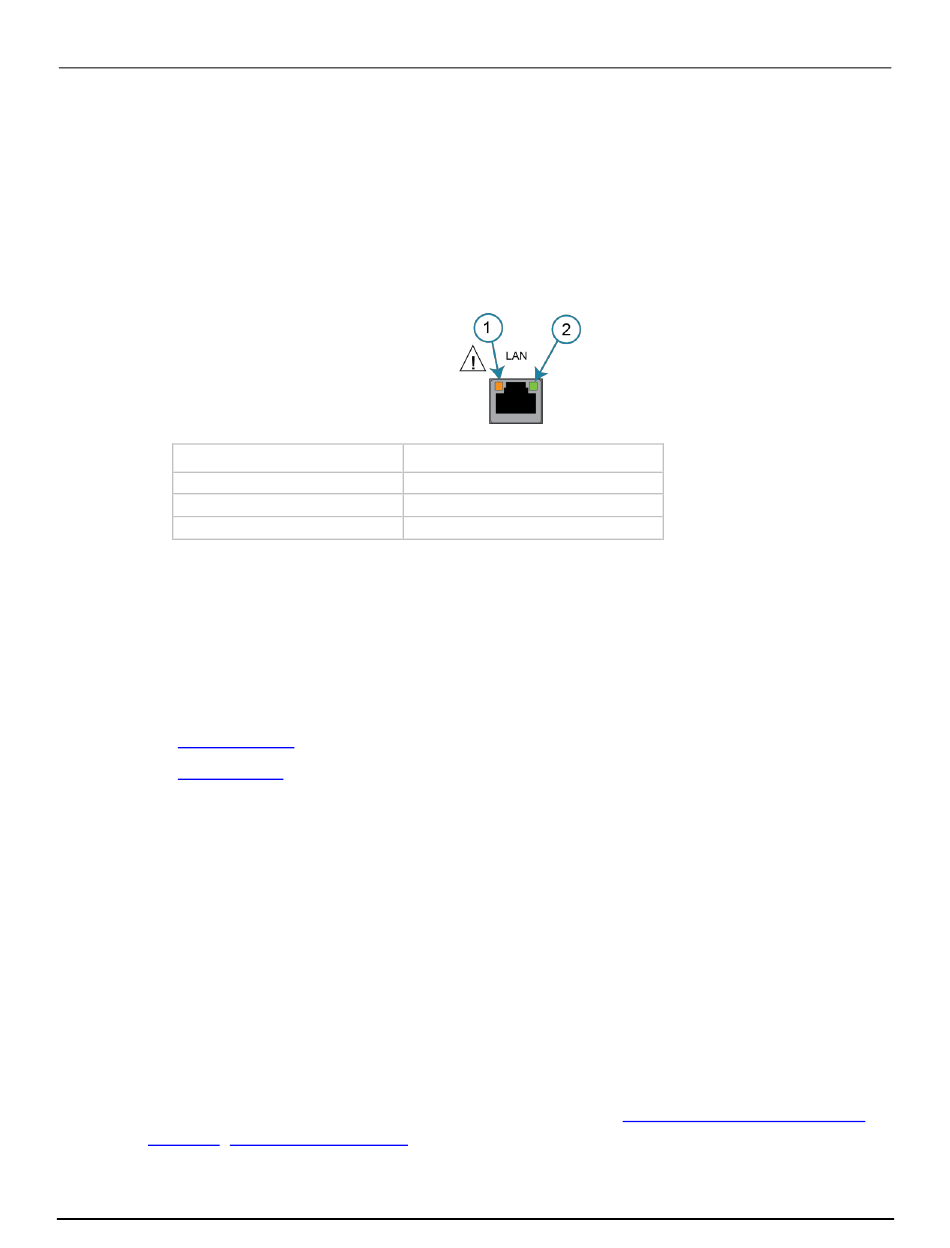

The figure below illustrates the two status light-emitting diodes (LEDs) that are on the LAN port of the
instrument. The table below the figure provides explanations of the LED states. The LED labeled 1
indicates the LAN port is connected to a 100 Mbps network. The LED labeled 2 indicates the LAN
port is connected to a 10 Mbps network.
When an LED is:
Off
On
Blinking
Monitoring the LAN
The lan.autoconnect command configures the instrument to monitor the LAN for lost connections.
All ethernet connections are disconnected if the LAN link is disconnected for longer than the time-out
value specified in the lan.linktimeout attribute.
For detail on these commands, refer to the following command descriptions:
•
lan.autoconnect
•
lan.linktimeout
Software components for applications and instrument drivers
The majority of software applications and all instrument drivers from Keithley Instruments depend on
the following software components:
•
NI-VISA
•
VISA shared components
•
IVI shared components
•
NI CVI runtime engine
•
NI IVI compliance package
•
Keithley instrument driver
These software components are available for download from the
web page (tek.com/product-support).
3-10
Model 2606B System SourceMeter® Instrument Reference Manual
Figure 14: LAN status
The network:
is not connected
is connected
is sending or receiving data
(on page 15-125)
(on page 15-133)
