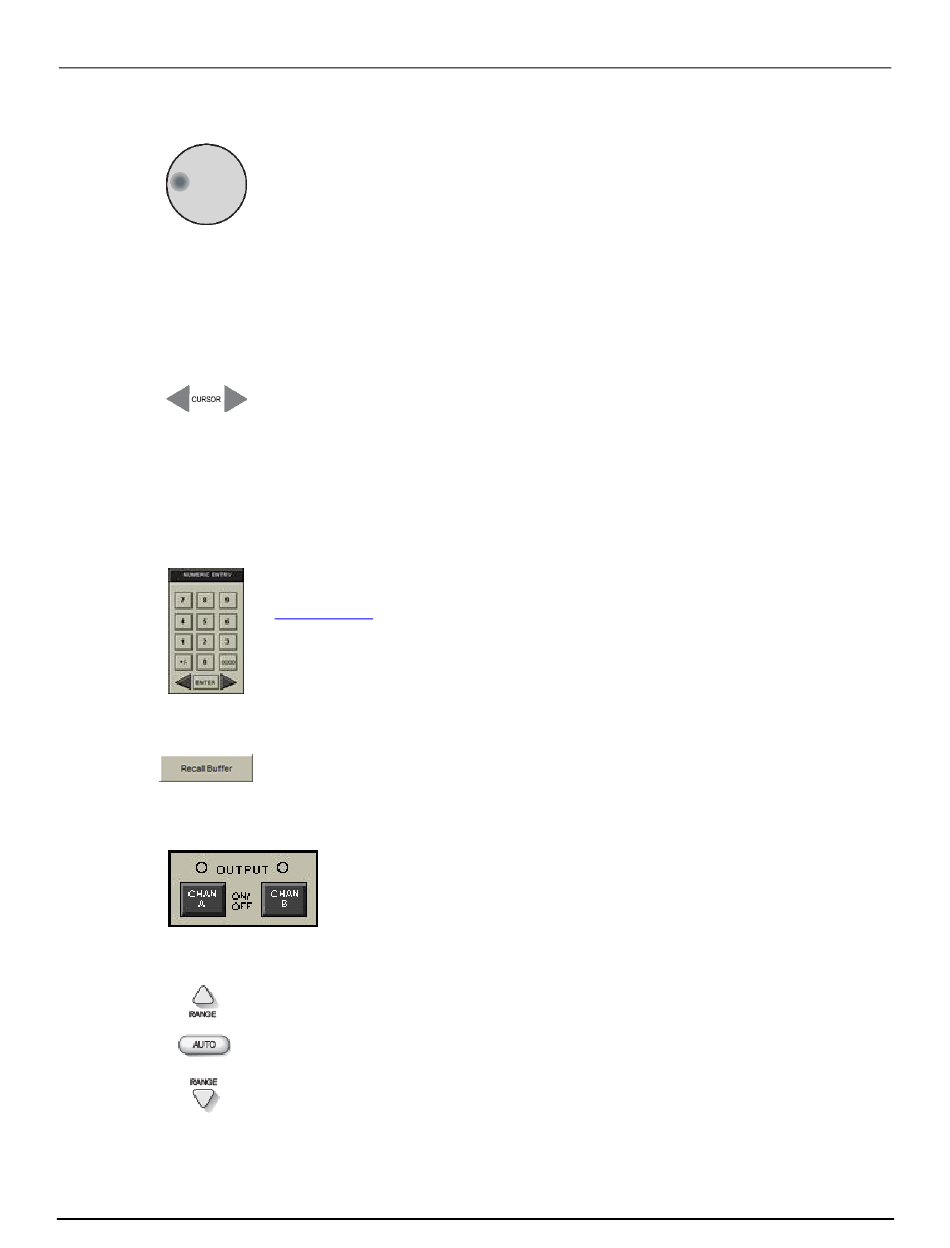

3. Navigation wheel
4. Cursor keys
5. Numeric Entry
6. Recall Buffer
7. Output control
8. Range keys
2606B-901-01 Rev. C November 2021
Turn the navigation wheel to:
▪
Move the cursor to the left and the right (the cursor indicates the selected value
or item)
▪
While in edit mode, increase or decrease a selected source or compliance value
Push the navigation wheel to:
▪
Enable or disable edit mode for the selected source or compliance value
▪
Open menus and submenu items
▪
Select a menu option or a value
Use the CURSOR keys to move the cursor left or right. When the cursor is on the
source or compliance value digit, press the navigation wheel to enter edit mode, and
turn the navigation wheel to edit the value. Press the navigation wheel again when you
finish editing.
Use the CURSOR keys or the navigation wheel to move through menu items. To view a
menu value, use the CURSOR keys for cursor control, and then press the navigation
wheel to view the value or submenu item.
When enabled and in EDIT mode, the number keys (0-9, +/-, 0000) allow direct numeric
entry. Press the navigation wheel to enter EDIT mode. For more information, see
Setting a value (on page 3-32).
Opens the Reading Buffers application, which you can use to download and save data
from the reading buffers.
Turns the source output on or off.
Selects the next higher source or measure range.
Enables or disables source or measure autorange.
Selects the next lower source or measure range.
In addition to selecting range functions, the up and down range keys change the format
for numbers that are not ranges, such as the limit value.
