Model 2606B System SourceMeter® Instrument Reference Manual
PulseVMeasureI()
This KIPulse factory script function performs a specified number of pulse V, measure I cycles.
Type TSP-Link accessible
Function No
Usage
PulseVMeasureI(smu, bias, level, ton, toff, points)
smu
bias
level
ton
toff
points
Details
If any parameters are omitted or nil, the operator is prompted to enter them using the front panel.
Data for pulsed current measurements, voltage levels, and timestamps are stored in
smuX.nvbuffer1.
To perform the specified number of pulse V, measure I cycles, this function:
Sets the smu to output bias volts and dwell for toff seconds
1.
Sets the smu to output level volts and dwell for ton seconds
2.
Performs voltage measurement with source at level volts
3.
Sets the smu to output bias volts for toff seconds
4.
Repeats steps 2 through 4 for the remaining points pulse-measure cycles
5.
Example
smua.measure.nplc = 0.001
PulseVMeasureI(smua, -1, 1, 1E-3, 2E-3, 20)
Also see
KIPulse factory script
2606B-901-01 Rev. C November 2021
Affected by
Instrument channel (for example, smua refers to SMU channel A)
Bias level in volts
Pulse level in volts
Pulse on time in seconds
Pulse off time in seconds
Number of pulse-measure cycles

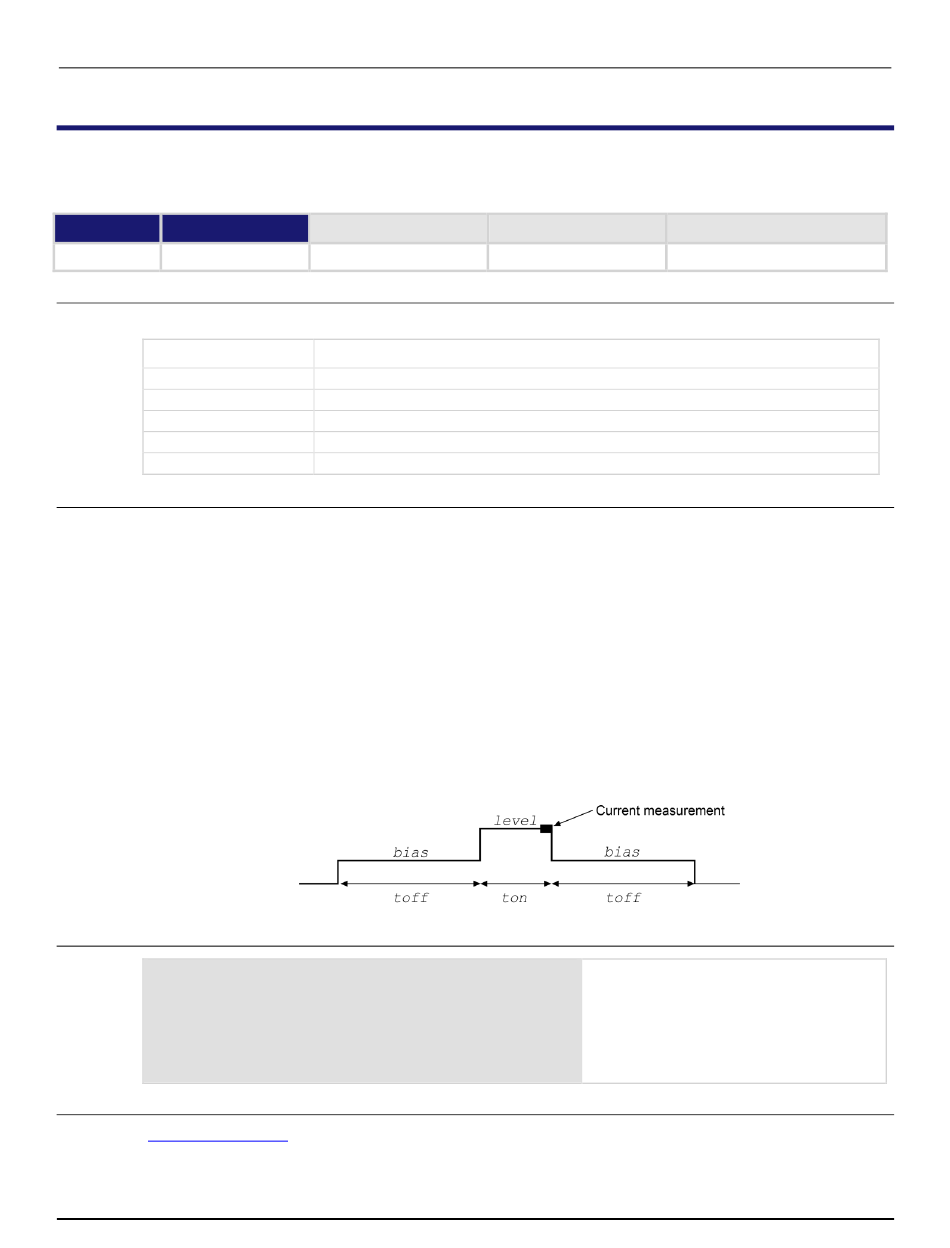

Figure 144: PulseVMeasureI()
(on page 13-20)
Section 15: TSP command reference
Where saved Default value
SMU A outputs −1 V and dwells for 2 ms,
outputs 1 V and dwells for 1 ms. The current
measurements occur during each 1 ms
dwell period. After the measurement, the
output returns to −1 V and dwells for 2 ms.
This pulse-measure process repeats 19
more times.
