Model 2606B System SourceMeter® Instrument Reference Manual
Also see
status.system4.*
System summary and standard event registers
SweepILinMeasureV()
This KISweep factory script function performs a linear current sweep with voltage measured at every step (point).
Type TSP-Link accessible
Function No
Usage
SweepILinMeasureV(smuX, starti, stopi, stime, points)
X
starti
stopi
stime
points
Details
Data for voltage measurements, current source values, and timestamps are stored
in smuX.nvbuffer1.
If all parameters are omitted when this function is called, this function is executed with the parameters
set to the default values.
Performs a linear current sweep with voltage measured at every step (point):
1. Sets the SMU to output starti amperes, allows the source to settle for stime seconds, and
then makes a voltage measurement.
2. Sets the SMU to output the next amperes step, allows the source to settle for stime seconds,
and then makes a voltage measurement.
3. Repeats the above sequence until the voltage is measured on the stopi amperes step.
The linear step size is automatically calculated as follows:
step = (stopi – starti) / (points – 1)
2606B-901-01 Rev. C November 2021
(on page 15-349)
Affected by
Source-measure unit (SMU) channel (for example, smua refers to SMU channel A)
Sweep start current in amperes
Sweep stop current in amperes
Settling time in seconds; occurs after stepping the source and before making
a measurement
Number of sweep points (must be ≥ 2)

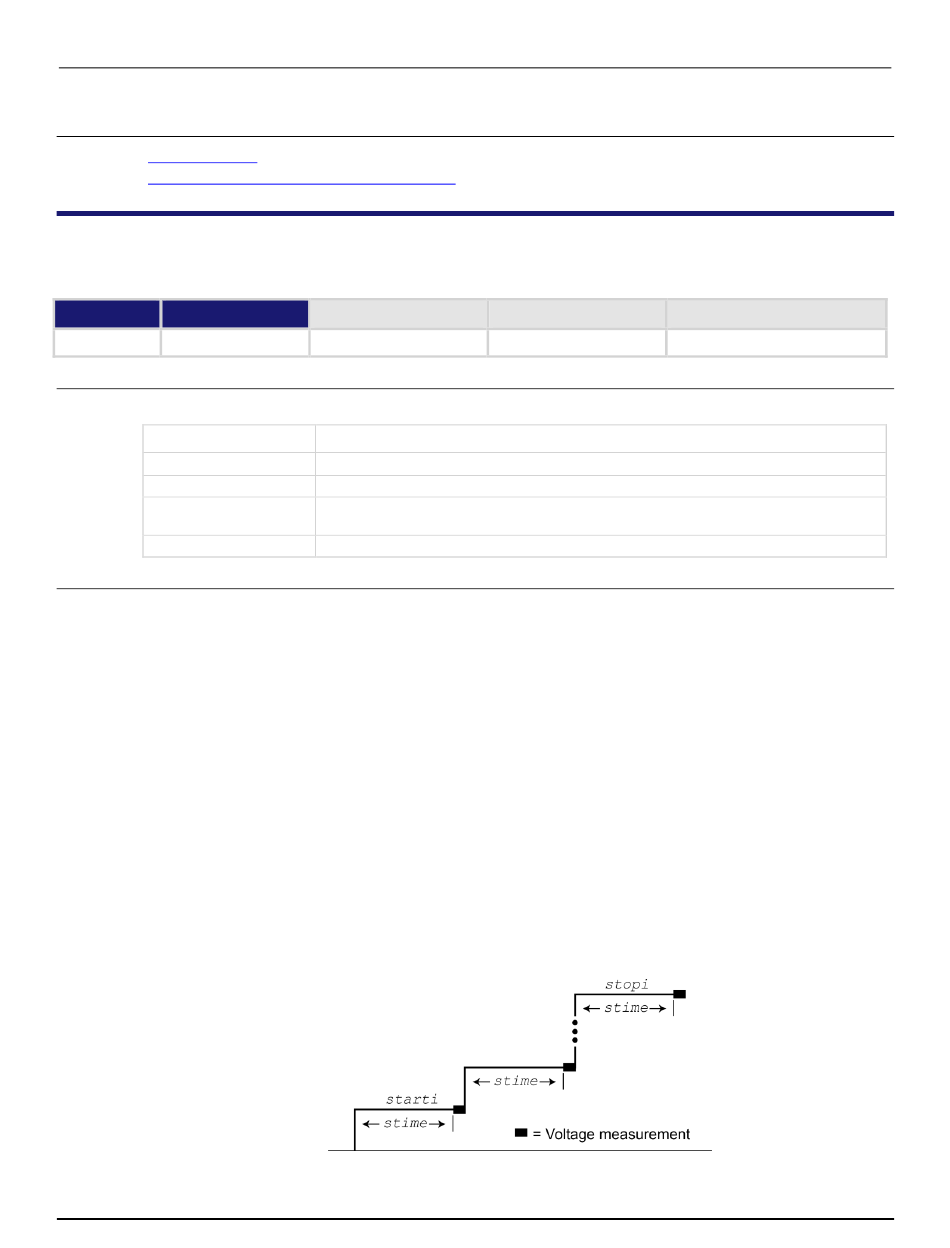

Figure 145: SweepILinMeasureV()
(on page 10-5)
Where saved
Section 15: TSP command reference
Default value
15-353
