Section 9: LAN concepts and settings

Viewing LAN status messages

To view the LAN status messages:
1. From the virtual front panel, press the MENU key and select LAN > STATUS > CONFIG/FAULT.
2. Press the ENTER key.
There are two types of LAN status messages:
•
LAN fault messages: Communicate issues related to physical connectivity.
•
LAN configuration messages: Communicate issues or events related to configuration.
The following table displays possible fault and configuration messages.
LAN CONFIG/FAULT messages
LAN message type
LAN fault
LAN configuration
9-8
Model 2606B System SourceMeter® Instrument Reference Manual

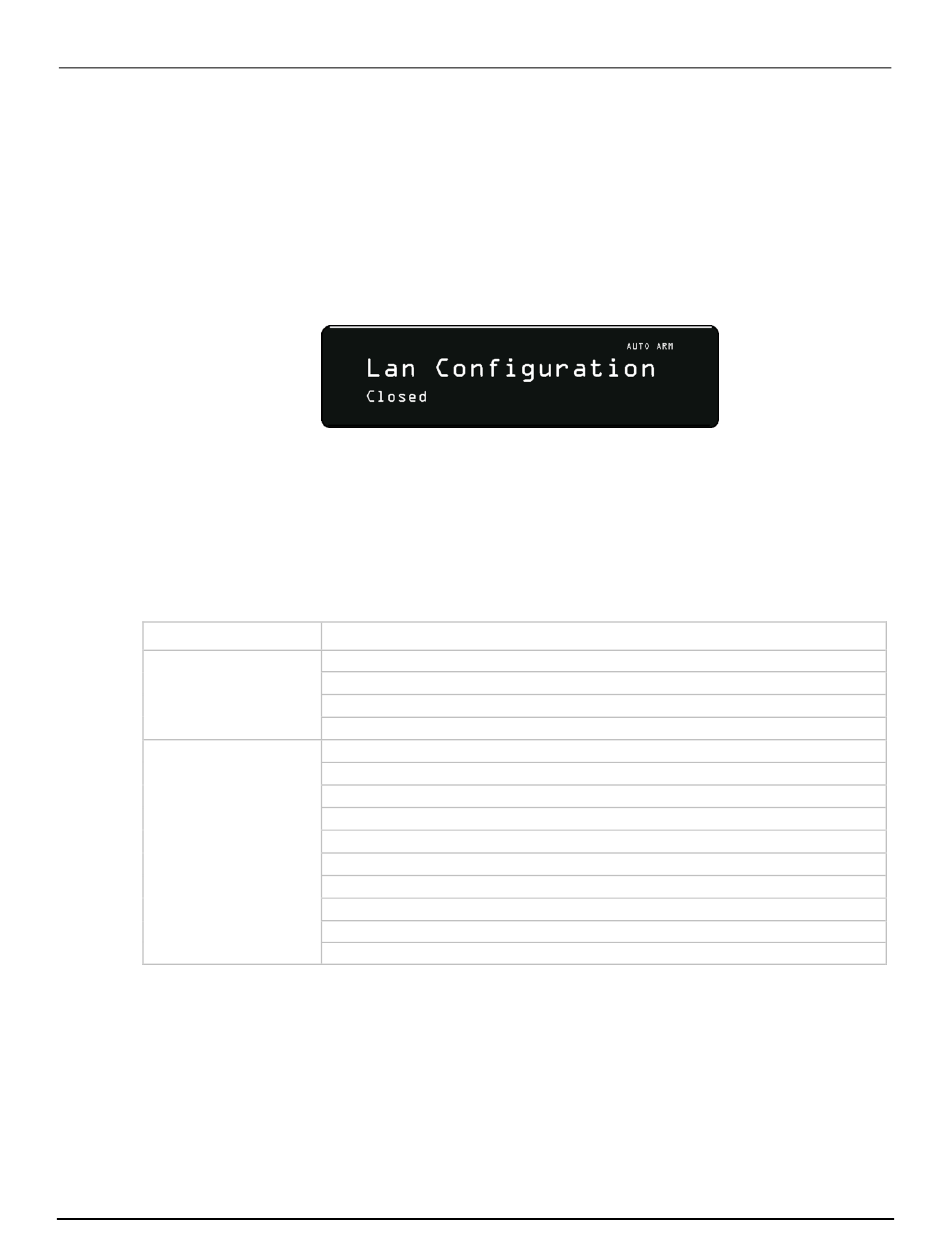

Figure 102: LAN CONFIG/FAULT
Possible messages
Could not acquire IP address
Duplicate IP address detected
DHCP lease lost
Lan Cable Disconnected
Starting DHCP Configuration
DHCP Server Not Found
DHCP configuration started on xxx.xxx.xxx.xxx
Searching for DNS server(s)
Starting DLLA Configuration
DLLA Failed
DLLA configuration started on xxx.xxx.xxx.xxx
Starting Manual Configuration
Manual configuration started on xxx.xxx.xxx.xxx
Closed
