Model 2606B System SourceMeter® Instrument Reference Manual Section 3: Instrument description
LAN communications
The 2606B is an LXI version 1.4 Core 2011 compliant instrument that supports TCP/IP and complies
with IEEE Std 802.3 (ethernet). The LAN ports for the modules are on the front panel of the 2606B
and support full connectivity on a 10 Mbps or 100 Mbps network.
Through the LAN interface, you can use a web interface to control the instrument.
TM
Once the 2606B is connected to the LAN, you can use the LXI Discovery Tool to identify the IP
addresses of instruments that are connected to the LAN and that support the VXI-11 discovery
protocol. You can also manually set up the IP address.
For detailed information about setting up your LAN interface, refer to LAN concepts and settings (on
page 9-1).
LAN cable connection
Use a LAN crossover cable (RJ-45, male to male) or a straight-through cable to connect your
®
equipment. The 2606B includes a cable that you can use for the TSP-Link network or LAN
communications. The instrument automatically senses which cable you have connected.
The following figure shows the location of the LAN port on the front panel of the instrument. Connect
the LAN cable between this connection and the LAN port on the computer.

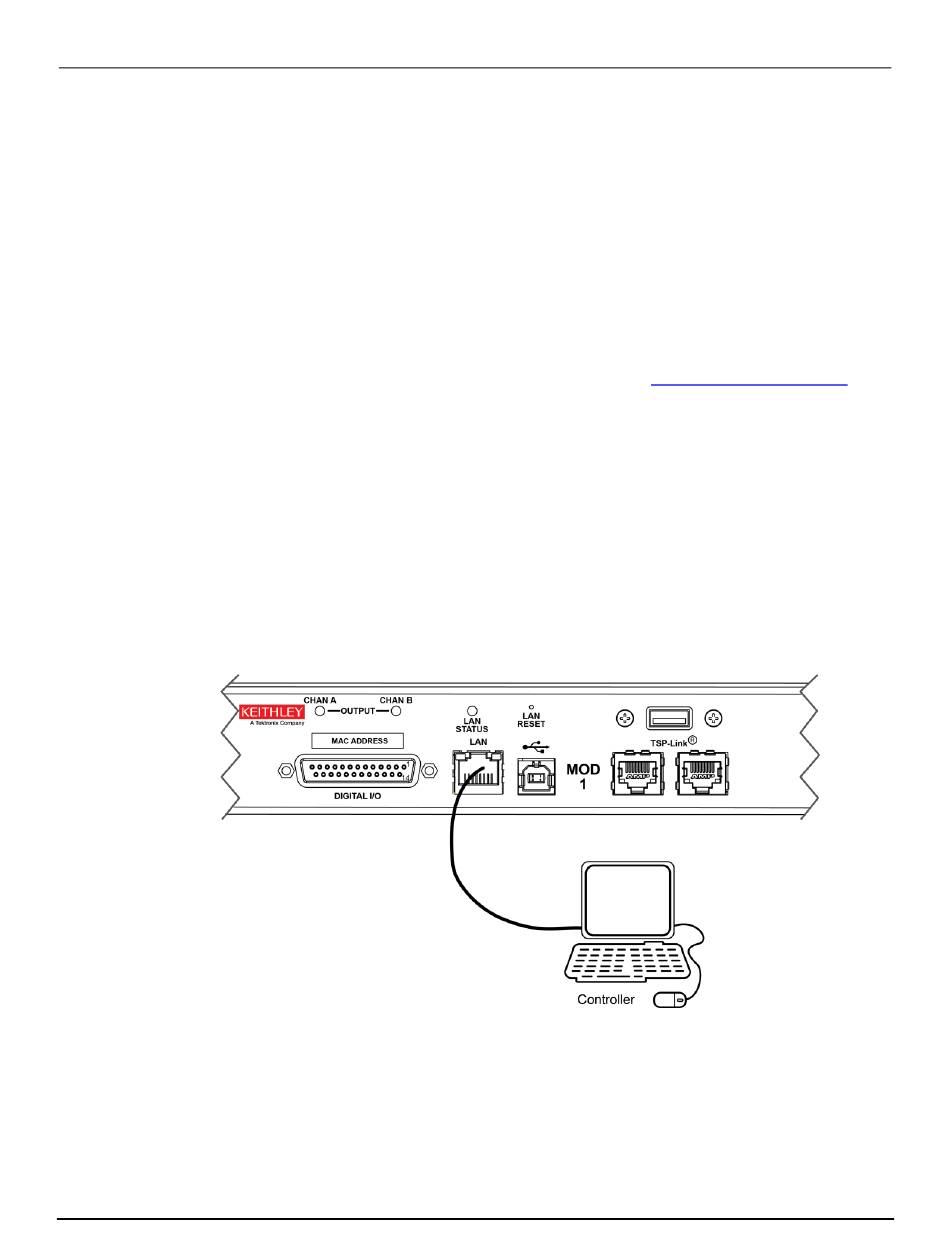

Figure 13: LAN connection
