Section 15: TSP command reference
Example
SweepILogMeasureV(smua, 0.01, 0.1, 0.001, 5)
This function performs a five-point linear current sweep starting at 10 mA and stopping at 100 mA. Voltage is
measured at every step (point) in the sweep. The source is allowed to settle on each step for 1 ms before a
measurement is made.
The following table contains log values and corresponding source levels for the five-point logarithmic sweep:
MeasurePoint
1
2
3
4
5
Also see
KISweep factory script
SweepVLinMeasureI()
This KISweep factory script function performs a linear voltage sweep with current measured at every step (point).
Type TSP-Link accessible
Function No
Usage
SweepVLinMeasureI(smuX, startv, stopv, stime, points)
X
startv
stopv
stime
points
15-356
Model 2606B System SourceMeter® Instrument Reference Manual

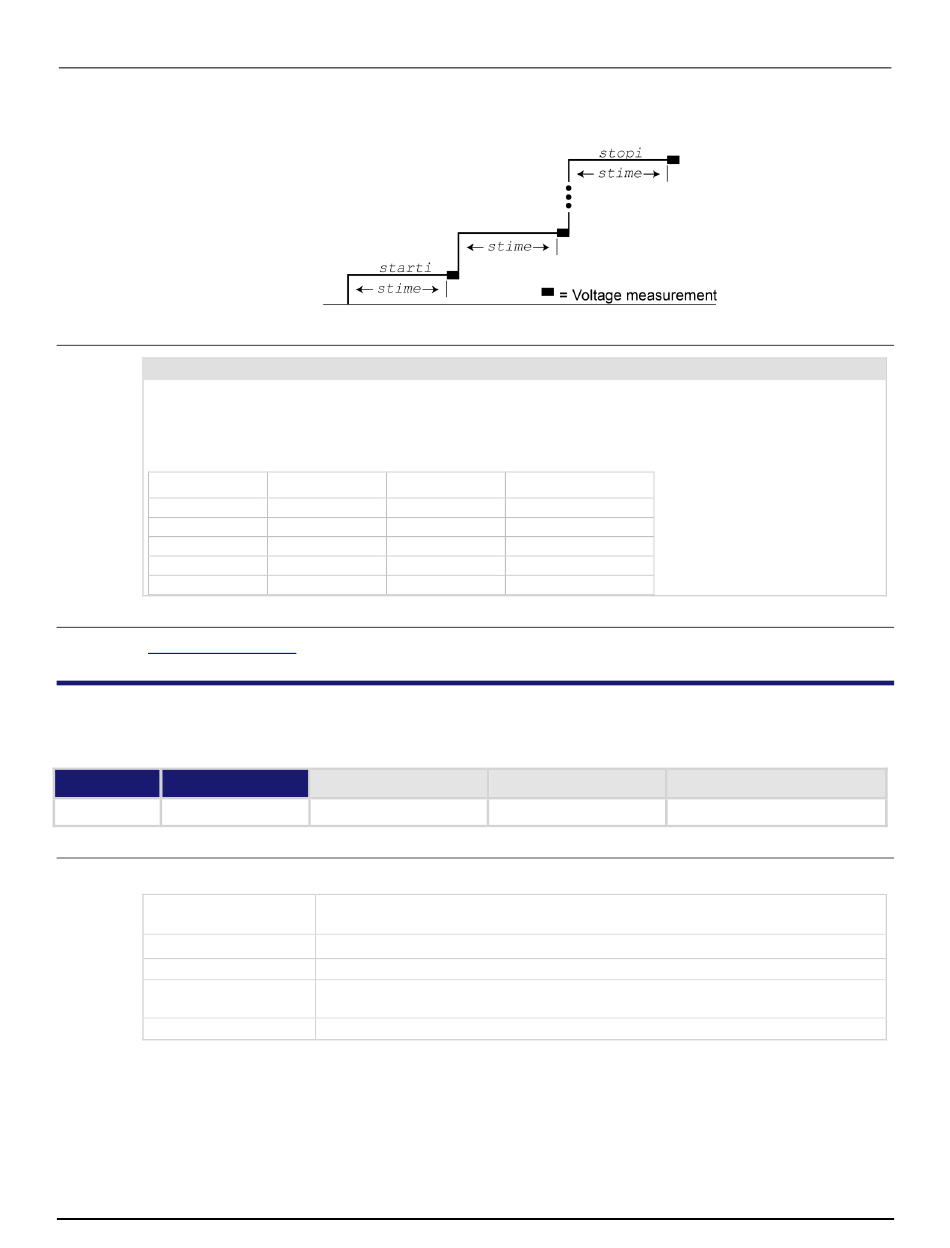

Figure 146: SweepILogMeasureV()
LogStepSize LogStep
0.25 0.0
0.25 0.25
0.25 0.5
0.25 0.75
0.25 1.0
(on page 13-20)
Affected by
Source-measure unit (SMU) channel (for example, smua.reset() applies to SMU
channel A)
Sweep start voltage in volts
Sweep stop voltage in volts
Settling time in seconds; occurs after stepping the source and before making
a measurement
Number of sweep points (must be ≥ 2)
SourceStepLevel
0.01 A
0.017783 A
0.031623 A
0.056234 A
0.1 A
Where saved Default value
