C8051F120/1/2/3/4/5/6/7 C8051F130/1/2/3

6.2.2. Tracking Modes

The AD0TM bit in register ADC0CN controls the ADC0 track-and-hold mode. In its default state, the ADC0
input is continuously tracked when a conversion is not in progress. When the AD0TM bit is logic 1, ADC0
operates in low-power track-and-hold mode. In this mode, each conversion is preceded by a tracking
period of 3 SAR clocks (after the start-of-conversion signal). When the CNVSTR0 signal is used to initiate
conversions in low-power tracking mode, ADC0 tracks only when CNVSTR0 is low; conversion begins on
the rising edge of CNVSTR0 (see Figure 6.3). Tracking can also be disabled (shutdown) when the entire
chip is in low power standby or sleep modes. Low-power track-and-hold mode is also useful when AMUX
or PGA settings are frequently changed, to ensure that settling time requirements are met (see
"6.2.3. Settling Time Requirements" on page 77
A. ADC Timing for External Trigger Source
CNVSTR0
(AD0CM[1:0]=10)
SAR Clocks
Low Power
ADC0TM=1
or Convert
ADC0TM=0
B. ADC Timing for Internal Trigger Sources
Timer 2, Timer 3 Overflow;
Write '1' to AD0BUSY
(AD0CM[1:0]=00, 01, 11)
SAR Clocks
Low Power
ADC0TM=1
or Convert
SAR Clocks
ADC0TM=0

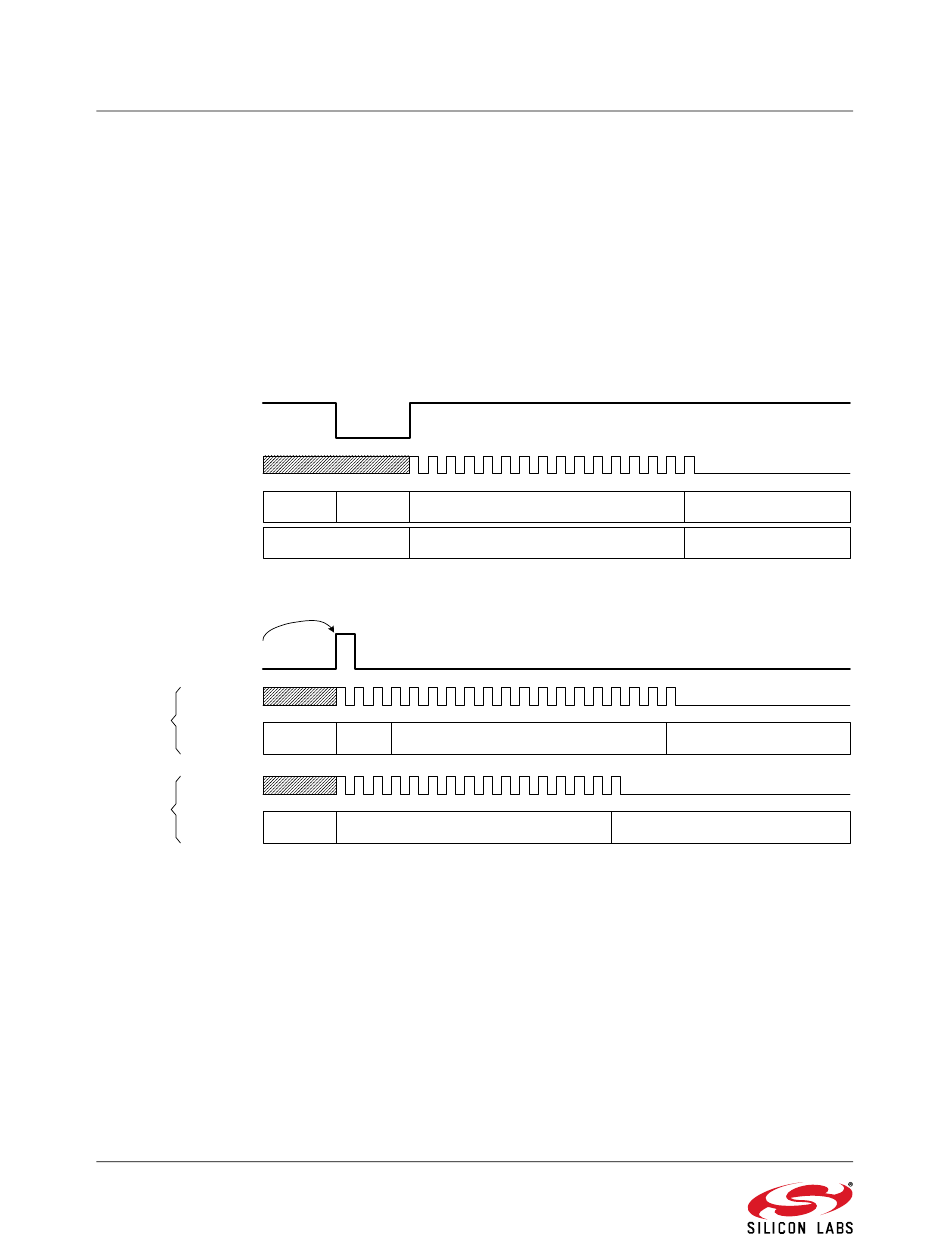

Figure 6.3. ADC0 Track and Conversion Example Timing

76
1 2 3
Track
Track Or Convert
1 2 3 4 5 6 7
Track
1 2 3 4 5 6 7
Track or
Convert
Convert
Rev. 1.4
).
4 5 6 7 8 9 10 11 12 13 14 15 16
Convert
Convert
8 9 10 11 12 13 14 15 16 17 18 19
Convert
8 9 10 11 12 13 14 15 16
Section
Low Power Mode
Track
Low Power Mode
Track
