Figure 4.3. Tqfp-100 Package Drawing - Silicon Laboratories C8051F12 Series Manual

C8051F120/1/2/3/4/5/6/7 C8051F130/1/2/3
100
PIN 1
DESIGNATOR
1
e
A2
L
D
D1
b

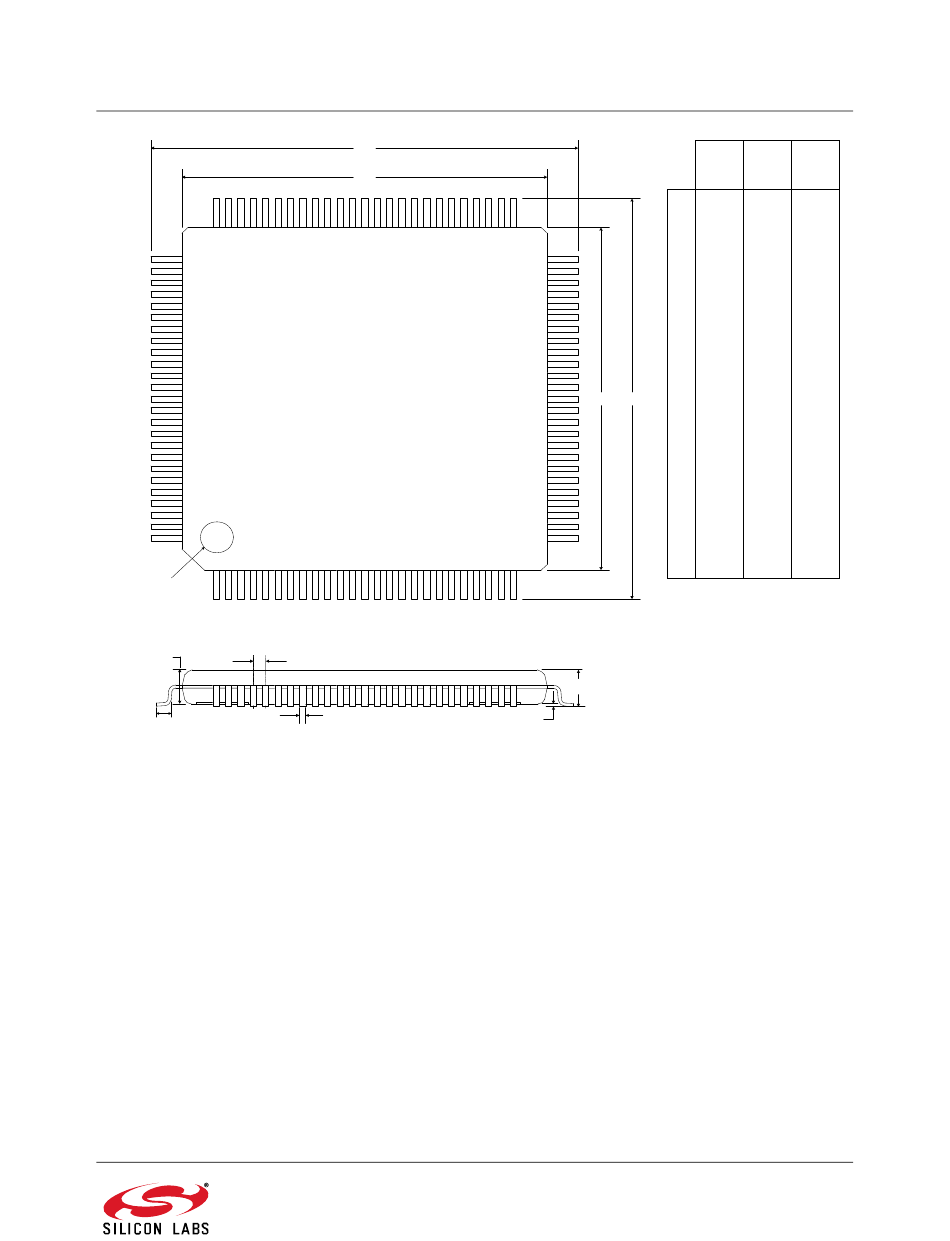

Figure 4.3. TQFP-100 Package Drawing

E1 E
A
A1
Rev. 1.4
MIN NOM MAX
(mm) (mm) (mm)
A - - 1.20
A1 0.05 - 0.15
A2 0.95 1.00 1.05
b 0.17 0.22 0.27
D - 16.00 -
D1 - 14.00 -
e - 0.50 -
E - 16.00 -
E1 - 14.00 -
L 0.45 0.60 0.75
