Figure 4.4. C8051F121/3/5/7 Pinout Diagram (Tqfp-64) - Silicon Laboratories C8051F12 Series Manual

C8051F120/1/2/3/4/5/6/7 C8051F130/1/2/3
CP1- 1
CP1+ 2
CP0- 3
CP0+ 4
AGND 5
AV+ 6
VREF 7
VREFA 8
AIN0.0 9
AIN0.1 10
AIN0.2 11
AIN0.3 12
AIN0.4 13
AIN0.5 14
AIN0.6 15
AIN0.7 16

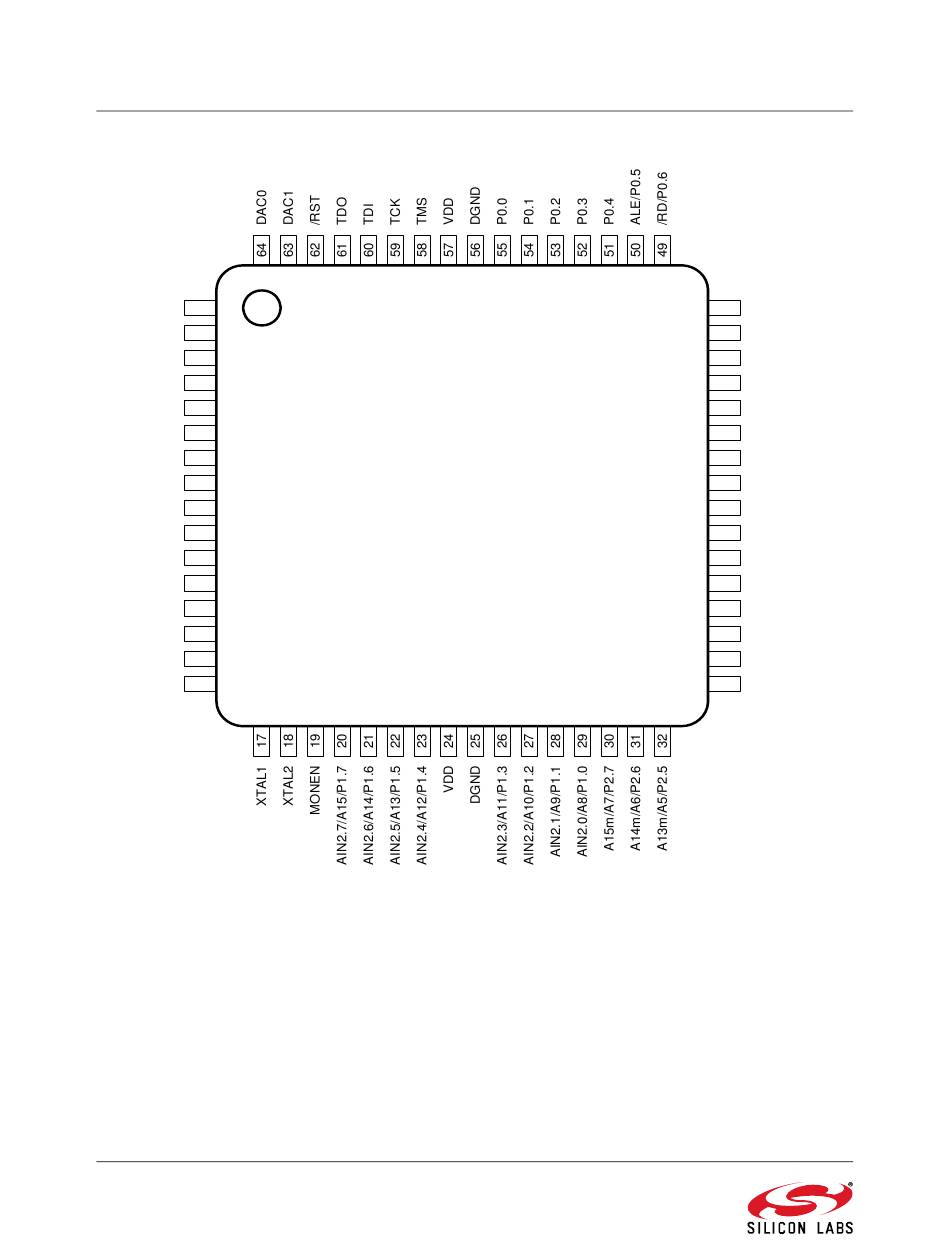

Figure 4.4. C8051F121/3/5/7 Pinout Diagram (TQFP-64)

52
C8051F121
C8051F123
C8051F125
C8051F127
Rev. 1.4
48 /WR/P0.7
47 AD0/D0/P3.0
46 AD1/D1/P3.1
45 AD2/D2/P3.2
44 AD3/D3/P3.3
43 AD4/D4/P3.4
42 AD5/D5/P3.5
41 VDD
40 DGND
39 AD6/D6/P3.6
38 AD7/D7/P3.7
37 A8m/A0/P2.0
36 A9m/A1/P2.1
35 A10m/A2/P2.2
34 A11m/A3/P2.3
33 A12m/A4/P2.4
