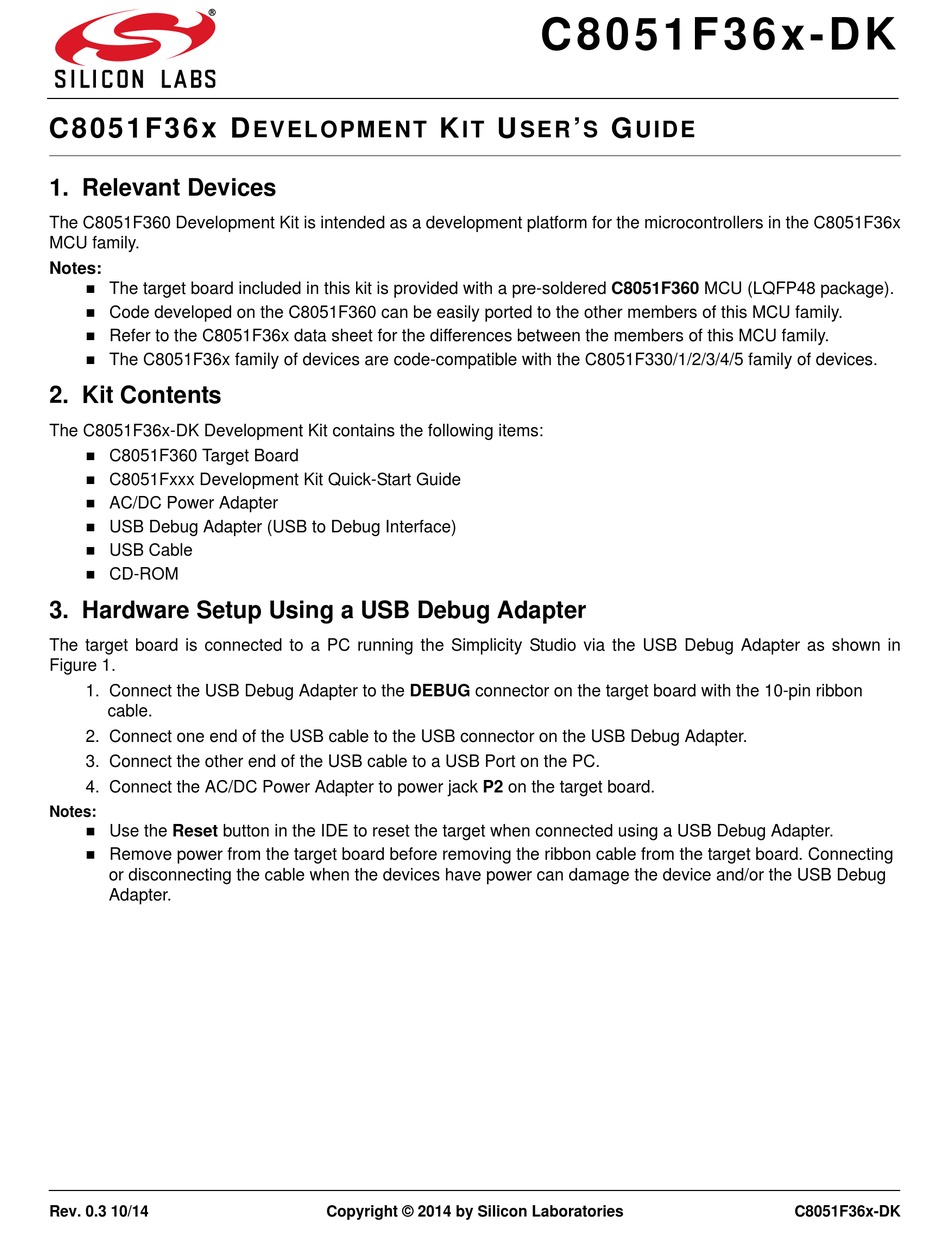

C8051F36x D
1. Relevant Devices
The C8051F360 Development Kit is intended as a development platform for the microcontrollers in the C8051F36x
MCU family.
Notes:

The target board included in this kit is provided with a pre-soldered C8051F360 MCU (LQFP48 package).

Code developed on the C8051F360 can be easily ported to the other members of this MCU family.

Refer to the C8051F36x data sheet for the differences between the members of this MCU family.

The C8051F36x family of devices are code-compatible with the C8051F330/1/2/3/4/5 family of devices.
2. Kit Contents
The C8051F36x-DK Development Kit contains the following items:

C8051F360 Target Board

C8051Fxxx Development Kit Quick-Start Guide

AC/DC Power Adapter

USB Debug Adapter (USB to Debug Interface)

USB Cable

CD-ROM
3. Hardware Setup Using a USB Debug Adapter
The target board is connected to a PC running the Simplicity Studio via the USB Debug Adapter as shown in
Figure 1.
1. Connect the USB Debug Adapter to the DEBUG connector on the target board with the 10-pin ribbon
cable.
2. Connect one end of the USB cable to the USB connector on the USB Debug Adapter.
3. Connect the other end of the USB cable to a USB Port on the PC.
4. Connect the AC/DC Power Adapter to power jack P2 on the target board.
Notes:

Use the Reset button in the IDE to reset the target when connected using a USB Debug Adapter.

Remove power from the target board before removing the ribbon cable from the target board. Connecting
or disconnecting the cable when the devices have power can damage the device and/or the USB Debug
Adapter.
Rev. 0.3 10/14
EVELOPMENT
Copyright © 2014 by Silicon Laboratories
C 8 0 5 1 F 3 6 x - D K
K
U
'
G
IT
S E R
S
UIDE
C8051F36x-DK

Advertisement

loading
Need help?

Need help?

Do you have a question about the C8051F36 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Silicon Laboratories C8051F36 Series

  • Page 1 Remove power from the target board before removing the ribbon cable from the target board. Connecting or disconnecting the cable when the devices have power can damage the device and/or the USB Debug Adapter. Rev. 0.3 10/14 Copyright © 2014 by Silicon Laboratories C8051F36x-DK...
  • Page 2 C8051F36x-DK P3.0 P3.1 RESET PORT_4 ACTIVE P3.0 SW3.0 AC/DC P3.1 SW3.1 P3.2 P3.2_LED Adapter P3.3 P3.3_LED PORT_3 P0.1 P0.2 SILICON LABS P3.4 POWER P3.5 www.silabs.com C8051F360 TB PORT_2 F360 Cable DEBUG PORT_0 PORT_1 Target Board USB Debug Adapter Figure 1. Hardware Setup using a USB Debug Adapter Rev.
  • Page 3: Software Setup

    C8051F36x-DK 4. Software Setup Simplicity Studio greatly reduces development time and complexity with Silicon Labs EFM32 and 8051 MCU products by providing a high-powered IDE, tools for hardware configuration, and links to helpful resources, all in one place. Once Simplicity Studio is installed, the application itself can be used to install additional software and documentation components to aid in the development and evaluation process.
  • Page 4 C8051F36x-DK 4.1. Running Blinky Each project has its own source files, target configuration, SDK configuration, and build configurations such as the Debug and Release build configurations. The IDE can be used to manage multiple projects in a collection called a workspace.
  • Page 5 C8051F36x-DK 4.3. CP210x USB to UART VCP Driver Installation The Target Board includes a Silicon Labs CP210x USB-to-UART Bridge Controller. Device drivers for the CP210x need to be installed before the PC software can communicate with the MCU through the UART interface. Use the drivers included CD-ROM or download the latest drivers from the website (www.silabs.com/interface-software).
  • Page 6: Target Board

    C8051F36x-DK 5. Target Board The C8051F36x Development Kit includes a target board with a C8051F360 device pre-installed for evaluation and preliminary software development. Numerous input/output (I/O) connections are provided to facilitate prototyping using the target board. Refer to Figure 3 for the locations of the various I/O connectors. 96-pin female connector Power connector (Accepts input from 7 to 15 VDC unregulated power adapter.) Analog I/O terminal block...
  • Page 7: Switches And Leds

    C8051F36x-DK 5.1. System Clock Sources The C8051F360 device installed on the target board features a calibrated programmable internal oscillator which is enabled as the system clock source on reset. After reset, the internal oscillator operates at a frequency of 3.0625 MHz (±1.5%) by default but may be configured by software to operate at other frequencies. Therefore, in many applications an external oscillator is not required.
  • Page 8 C8051F36x-DK 5.3. PORT I/O Connectors (J2 - J6) In addition to all port I/O signals being routed to the 96-pin expansion connector, each of the five parallel ports of the C8051F360 has its own 10-pin header connector. Each connector provides a pin for the corresponding port pins 0–7, +3.3 VDC and digital ground.
  • Page 9 5.5. USB to Serial Connector (P1) A USB-to-Serial bridge interface is provided. A USB B-type connector (P1), a Silicon Laboratories CP2102 USB-to- UART Bridge, and related circuits are provided to facilitate the serial connection between a PC and the C8051F360 microcontroller on the target board.
  • Page 10 C8051F36x-DK 6. Schematics Rev. 0.3...
  • Page 11 C8051F36x-DK Rev. 0.3...
  • Page 12: Document Change List

    C8051F36x-DK OCUMENT HANGE Revision 0.1 to Revision 0.2  Added Relevant Devices section.  Section 2 moved to Section 5.  Change section 3 to "Getting Started."  Updated section 3 to include latest VCP driver installation instructions.  Changed section 4 to "Software Overview." ...
  • Page 13 The products must not be used within any Life Support System without the specific written consent of Silicon Laboratories. A "Life Support System" is any product or system intended to support or sustain life and/or health, which, if it fails, can be reasonably expected to result in significant personal injury or death.
  • Page 14 Mouser Electronics Authorized Distributor Click to View Pricing, Inventory, Delivery & Lifecycle Information: Silicon Laboratories C8051F360DK...
