Figure 4.6. Tqfp-64 Package Drawing - Silicon Laboratories C8051F12 Series Manual

C8051F120/1/2/3/4/5/6/7 C8051F130/1/2/3
64
PIN 1
DESIGNATOR
1
A2
L
54
D
D1
e
b

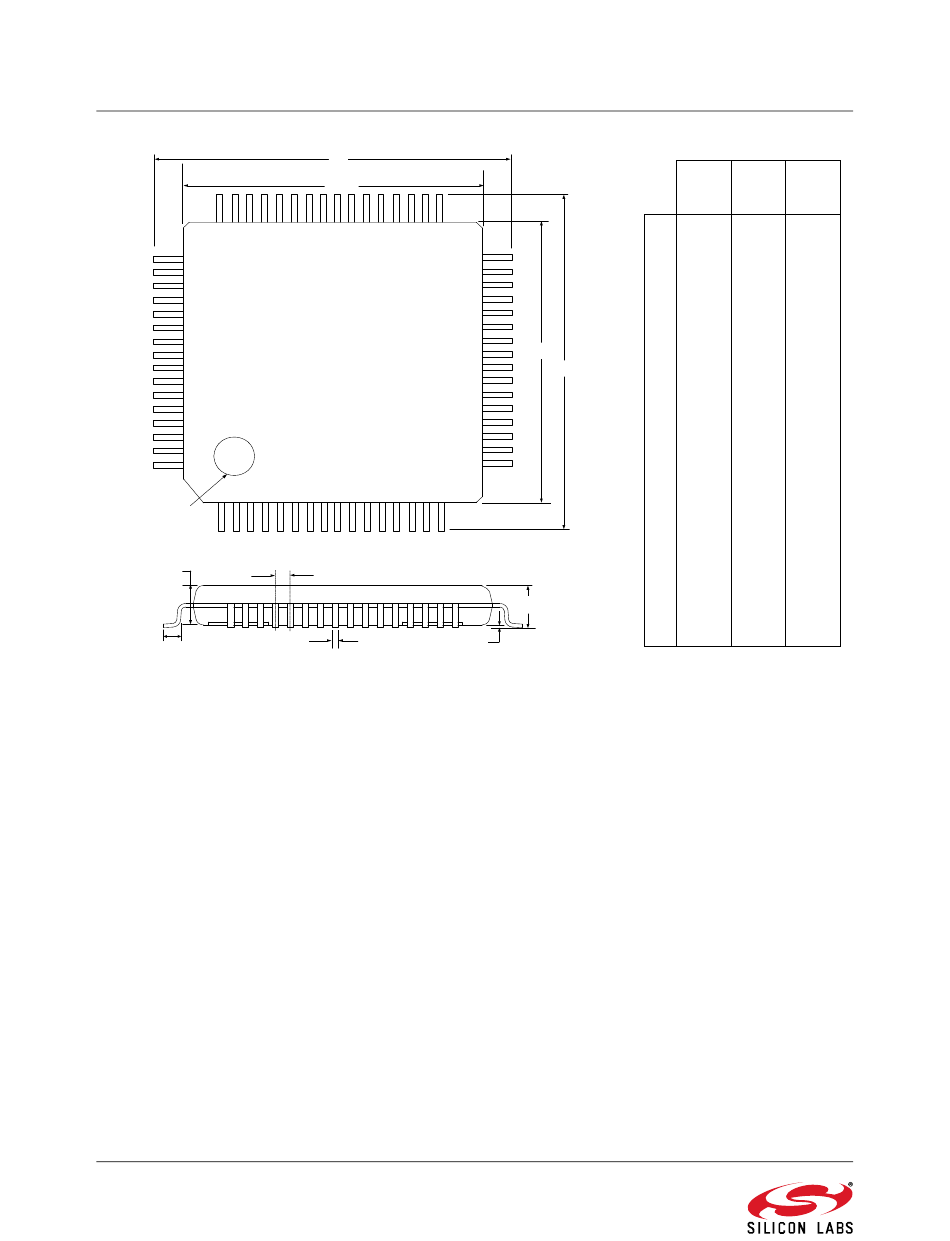

Figure 4.6. TQFP-64 Package Drawing

Rev. 1.4
E1
E
A
A1
MIN NOM MAX
(mm) (mm) (mm)
A - - 1.20
A1 0.05 - 0.15
A2 0.95 1.00 1.05
b 0.17 0.22 0.27
D - 12.00 -
D1 - 10.00 -
e - 0.50 -
E - 12.00 -
E1 - 10.00 -
L 0.45 0.60 0.75
