C8051F336 D
1. Relevant Devices
The C8051F338 Development Kit is intended as a development platform for the microcontrollers in the
C8051F336/7/8/9 MCU family.
Notes:
• The target board included in this kit is provided with a pre-soldered C8051F338 MCU (QFN24 package).
• Code developed on the C8051F338 can be easily ported to the other members of this MCU family.
• Refer to the C8051F336/7/8/9 data sheet for the differences between the members of this MCU family.
• The C8051F336/7/8/9 family of devices are code-compatible with the C8051F330/1/2/3/4/5 family of
devices.
2. Kit Contents
The C8051F336 Development Kit contains the following items:
• C8051F338 Target Board
• C8051Fxxx Development Kit Quick-Start Guide
• AC to DC Power Adapter
• USB Debug Adapter (USB to Debug Interface)
• USB Cable
• CD-ROM
3. Hardware Setup Using a USB Debug Adapter
The target board is connected to a PC running the Silicon Laboratories IDE via the USB Debug Adapter as shown
in Figure 1.
1. Connect the USB Debug Adapter to the DEBUG connector on the target board with the 10-pin ribbon cable.
2. Connect one end of the USB cable to the USB connector on the USB Debug Adapter.
3. Connect the other end of the USB cable to a USB Port on the PC.
4. Connect the ac/dc power adapter to power jack P1 on the target board.
Notes:
• Use the Reset button in the IDE to reset the target when connected using a USB Debug Adapter.
• Remove power from the target board and the USB Debug Adapter before connecting or disconnecting the
ribbon cable from the target board. Connecting or disconnecting the cable when the devices have power can
damage the device and/or the USB Debug Adapter.
J11
SW3
Rev. 0.3 2/14
EVELOPMENT
Target Board
P0.7
RESET
R14
P2
USB
J7
J8
J3
D4
P1.3
D7
CP
2102
U3
J6
J1
J4
J9
J10
U1
J5
F338
P1
SILICON LABS
www.silabs.com
J2
TB1
D6
+3VD
PWR
GND

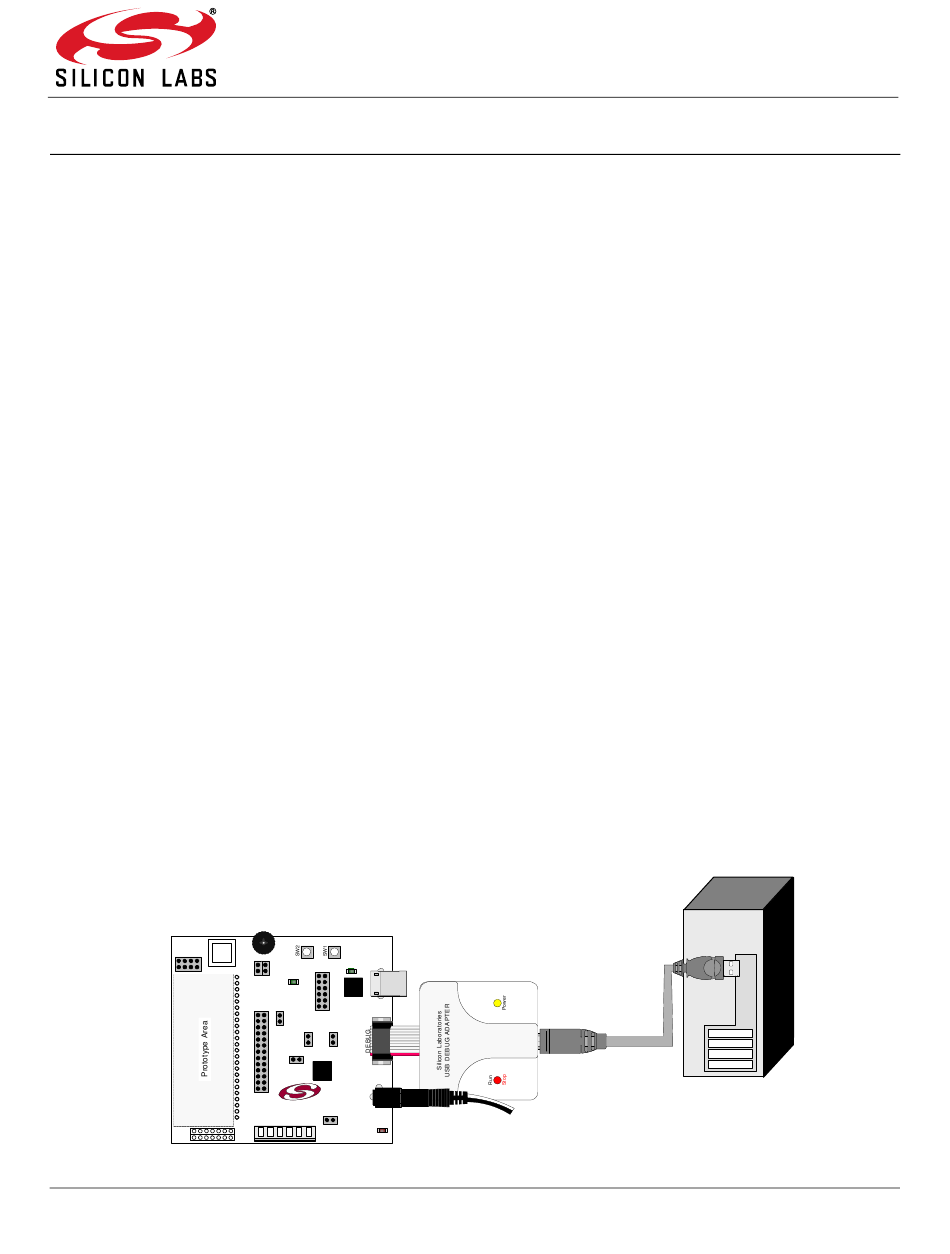

Figure 1. Hardware Setup Using a USB Debug Adapter
Copyright © 2014 by Silicon Laboratories
C 8 0 5 1 F 3 3 6 / 7 / 8 / 9
K
U
'
G
IT
S E R
S
USB Debug
Adapter
AC/DC
Adapter
UIDE
USB
Cable
C8051F336/7/8/9
