1. Kit Contents
The C8051F12x Development Kit contains the following items:
• C8051F120 Target Board
• C8051Fxxx Development Kit Quick-Start Guide
• C8051F12x Development Kit User's Guide (this document)
• Silicon Laboratories IDE and Product Information CD-ROM. CD content includes:
• Silicon Laboratories Integrated Development Environment (IDE)
• Keil 8051 Development Tools (macro assembler, linker, evaluation 'C' compiler)
• Source code examples and register definition files
• Documentation
• AC to DC Power Adapter
• Debug Adapter. Items include:
• EC2 Serial Adapter (RS232 to Debug Interface)
• RS232 Serial Cable
• 7" Ribbon Cable
OR
• USB Debug Adapter (USB to Debug Interface)
• USB Cable
2. Hardware Setup using an EC2 Serial Adapter
Connect the target board to a PC running the Silicon Laboratories IDE via the Serial Adapter as shown in Figure 1.
1. Connect one end of the RS232 serial cable to a serial (COM) port on the PC.
2. Connect the other end of the RS232 serial cable to the DB-9 connector on the Serial Adapter.
3. Connect the Serial Adapter to the JTAG connector on the target board using the 10-pin ribbon cable.
4. Connect the AC/DC power adapter to power jack P1 on the target board.
Notes:
• Use the Reset button in the IDE to reset the target when connected using an EC2 Serial Adapter.
• Remove power from the target board and the EC2 before connecting or disconnecting the ribbon cable from
the target board. Connecting or disconnecting the cable when the devices have power can damage the
device and/or the EC2.
PC
Serial Port

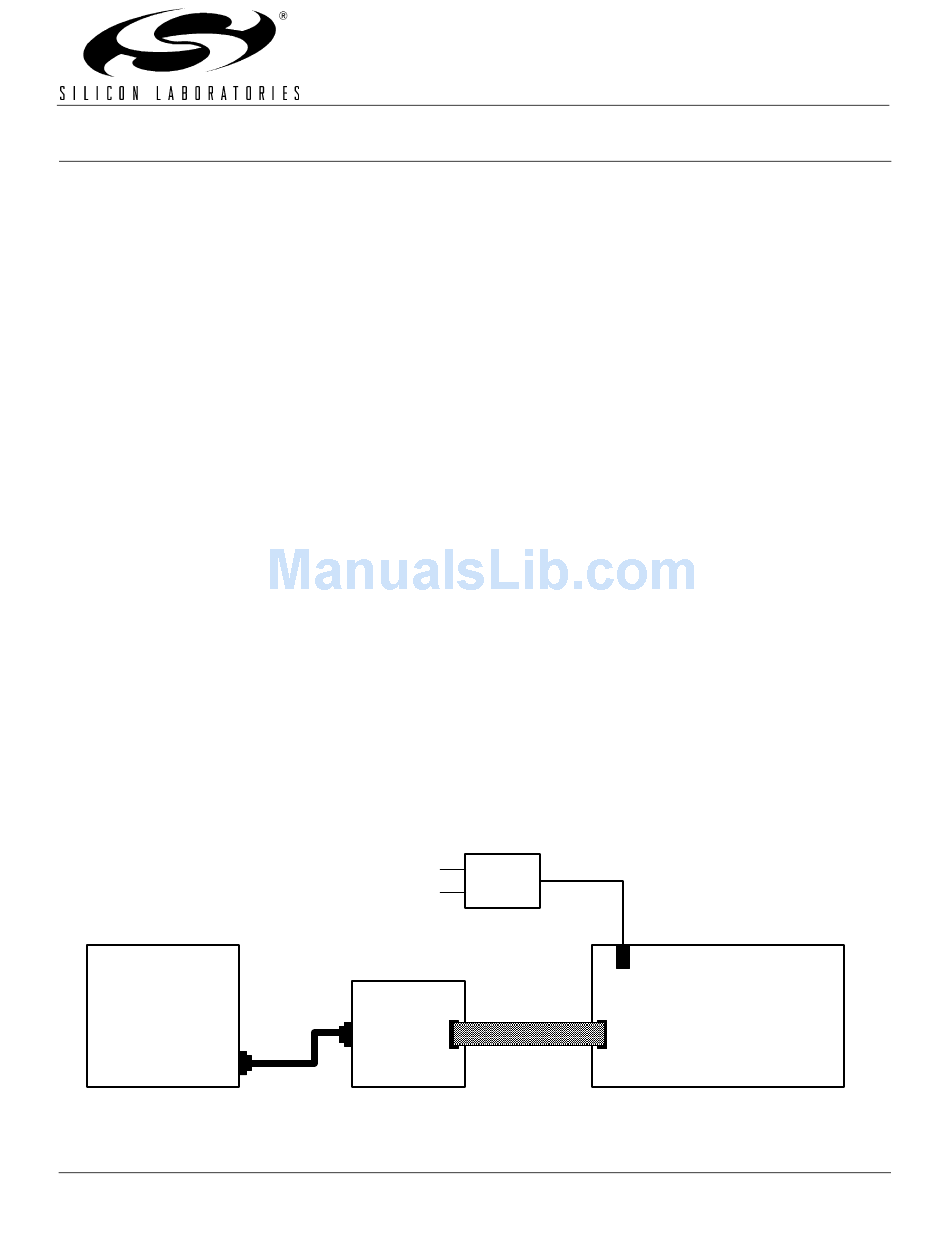

Figure 1. Hardware Setup using an EC2 Serial Adapter
Rev. 0.6 5/05
E V E L O P M E N T
Serial
Serial
Adapter
Cable
Copyright © 2005 by Silicon Laboratories
C 8 0 5 1 F 1 2 x - D K
K
U
'
G
I T
S E R
S
AC/DC
Adapter
Ribbon
Cable
U I D E
Target
Board
C8051F12x-DK
