1.9.

8-Bit Analog to Digital Converter

The C8051F12x devices have an on-board 8-bit SAR ADC (ADC2) with an 8-channel input multiplexer and
programmable gain amplifier. This ADC features a 500 ksps maximum throughput and true 8-bit linearity
with an INL of ±1LSB. Eight input pins are available for measurement. The ADC is under full control of the
CIP-51 microcontroller via the Special Function Registers. The ADC2 voltage reference is selected
between the analog power supply (AV+) and an external VREF pin. On the 100-pin TQFP devices, ADC2
has its own dedicated Voltage Reference input pin; on the 64-pin TQFP devices, ADC2 shares a Voltage
Reference input pin with ADC0. User software may put ADC2 into shutdown mode to save power.
A programmable gain amplifier follows the analog multiplexer. The gain stage can be especially useful
when different ADC input channels have widely varied input voltage signals, or when it is necessary to
"zoom in" on a signal with a large DC offset (in differential mode, a DAC could be used to provide the DC
offset). The PGA gain can be set in software to 0.5, 1, 2, or 4.
A flexible conversion scheduling system allows ADC2 conversions to be initiated by software commands,
timer overflows, or an external input signal. ADC2 conversions may also be synchronized with ADC0 soft-
ware-commanded conversions. Conversion completions are indicated by a status bit and an interrupt (if
enabled), and the resulting 8-bit data word is latched into an SFR upon completion.
Analog Multiplexer
AIN2.0
AIN2.1
AIN2.2
AIN2.3
8-to-1
AIN2.4
AMUX
AIN2.5
AIN2.6
AIN2.7
Configuration, Control, and Data Registers
Programmable Gain
Amplifier
AV+
+
X
-
External VREF
Pin
AV+

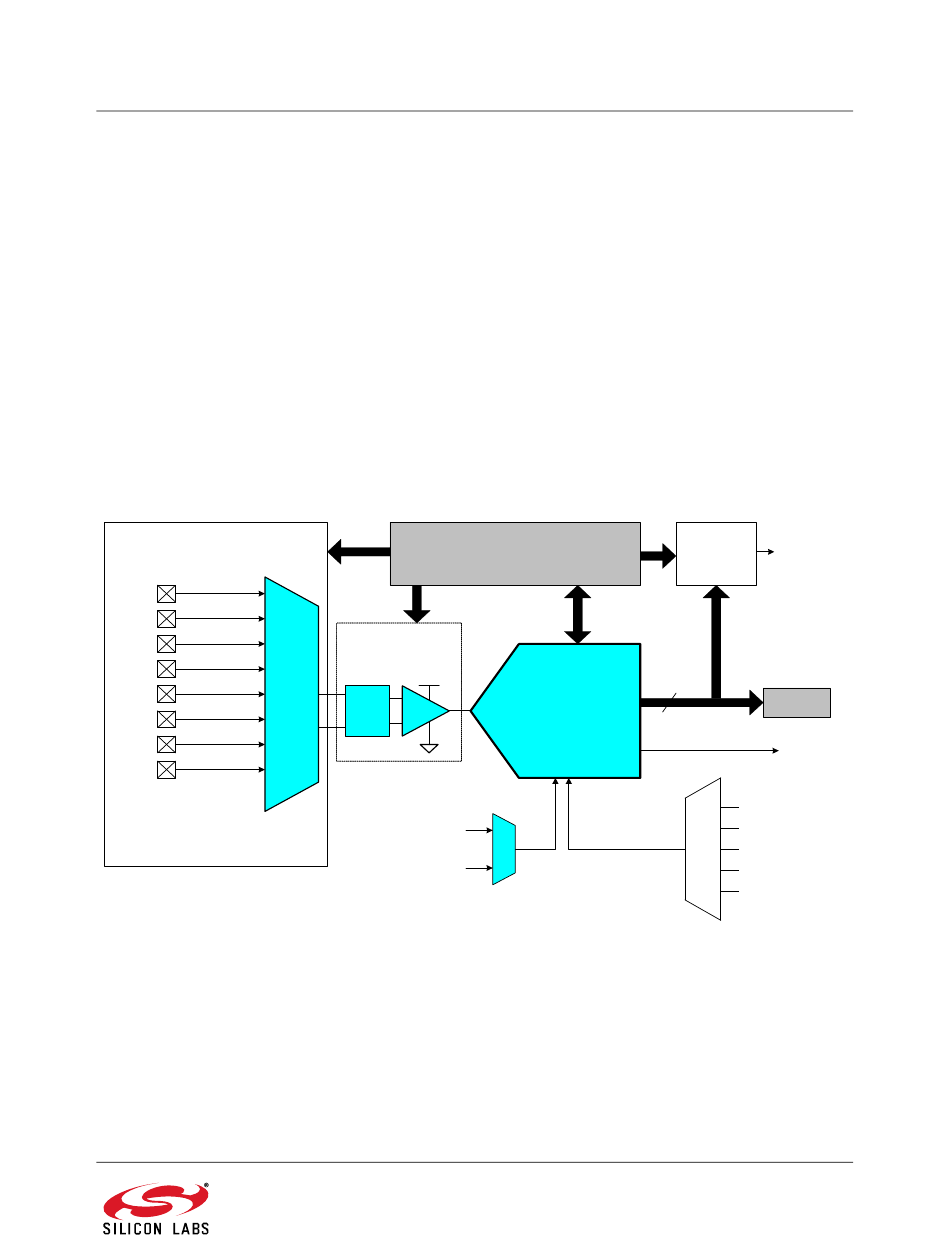

Figure 1.14. 8-Bit ADC Diagram
