Visually inspect the harness and connectors for damage, bent or dislocated pins, corroded terminals or
broken wires.
A.
If no damage is found, erase the fault code and continue operation.

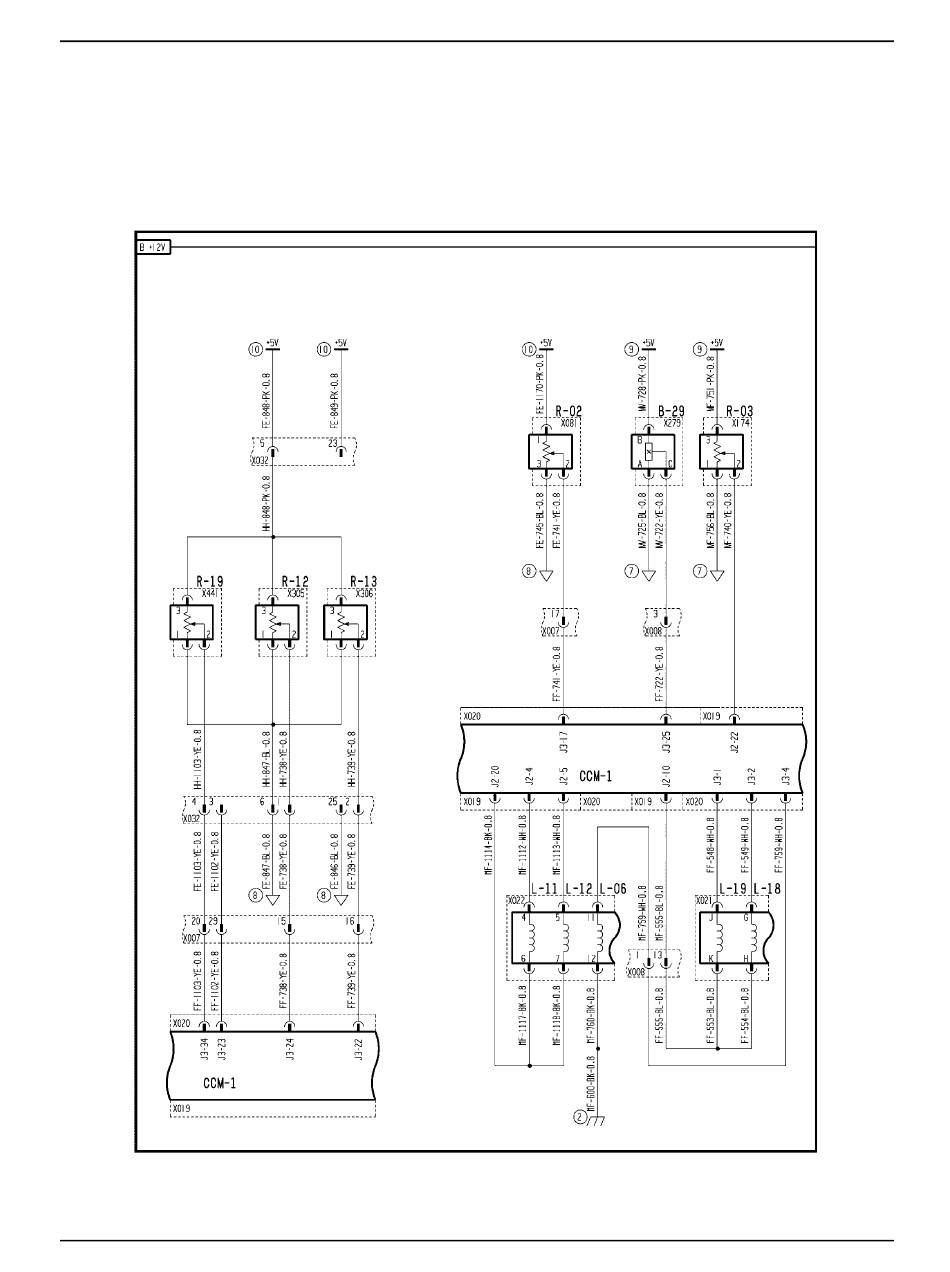

Wiring harness - Electrical schematic frame 13 (A.30.A.88 -
C.20.E.13)
TOOL POSITIONING - LIFTING
1
AFXSCHEM13-04
FRAME 13 - HEADER
9706 1 27/05/2004
