General Data Cache Functionality
When the data cache is used, the memory address space is split into two segments: a cacheable
segment and a non-cacheable segment. The cacheable area is determined by two parameters:
C_DCACHE_BASEADDR and C_DCACHE_HIGHADDR. All addresses within this range correspond
to the cacheable address space. All other addresses are non-cacheable.
The cacheable segment size must be 2
C_DCACHE_BASEADDR and C_DCACHE_HIGHADDR must comprise a complete power-of-two
range, such that range = 2
zero.
Figure 2-23
The cacheable data address consists of two parts: the cache address, and the tag address. The
MicroBlaze data cache can be configured from 64 bytes to 64 kB. This corresponds to a cache
address of between 6 and 16 bits. The tag address together with the cache address should match the
full address of cacheable memory. When selecting cache sizes below 2 kB, distributed RAM is used
to implement the Tag RAM and Data RAM, except that block RAM is always used for the Data
RAM when C_AREA_OPTIMIZED is set and C_DCACHE_USE_WRITEBACK is not set.
Distributed RAM is always used to implement the Tag RAM, when setting the parameter
C_DCACHE_FORCE_TAG_LUTRAM to 1. This parameter is only available with cache sizes 8 kB
or 16 kB and less, for 4 or 8 word cache-lines, respectively.
For example, in a MicroBlaze configured with C_DCACHE_BASEADDR=0x00400000,
C_DCACHE_HIGHADDR=0x00403fff, C_DCACHE_BYTE_SIZE=2048,
C_DCACHE_LINE_LEN=4, and C_DCACHE_FORCE_TAG_LUTRAM=0; the cacheable memory
of 16 kB uses 14 bits of byte address, and the 2 kB cache uses 11 bits of byte address, thus the
required address tag width is 14-11=3 bits. The total number of block RAM primitives required in
this configuration is 1 RAMB16 for storing the 512 data words, and 1 RAMB16 for 128 cache line
entries, each consisting of 3 bits of tag, 4 word-valid bits, 1 line-valid bit. In total, 2 RAMB16
primitives.
MicroBlaze Processor Reference Guide
UG081 (v14.7)
N
and the N least significant bits of C_DCACHE_BASEADDR must be
shows the Data Cache Organization.
0
Addr
Addr

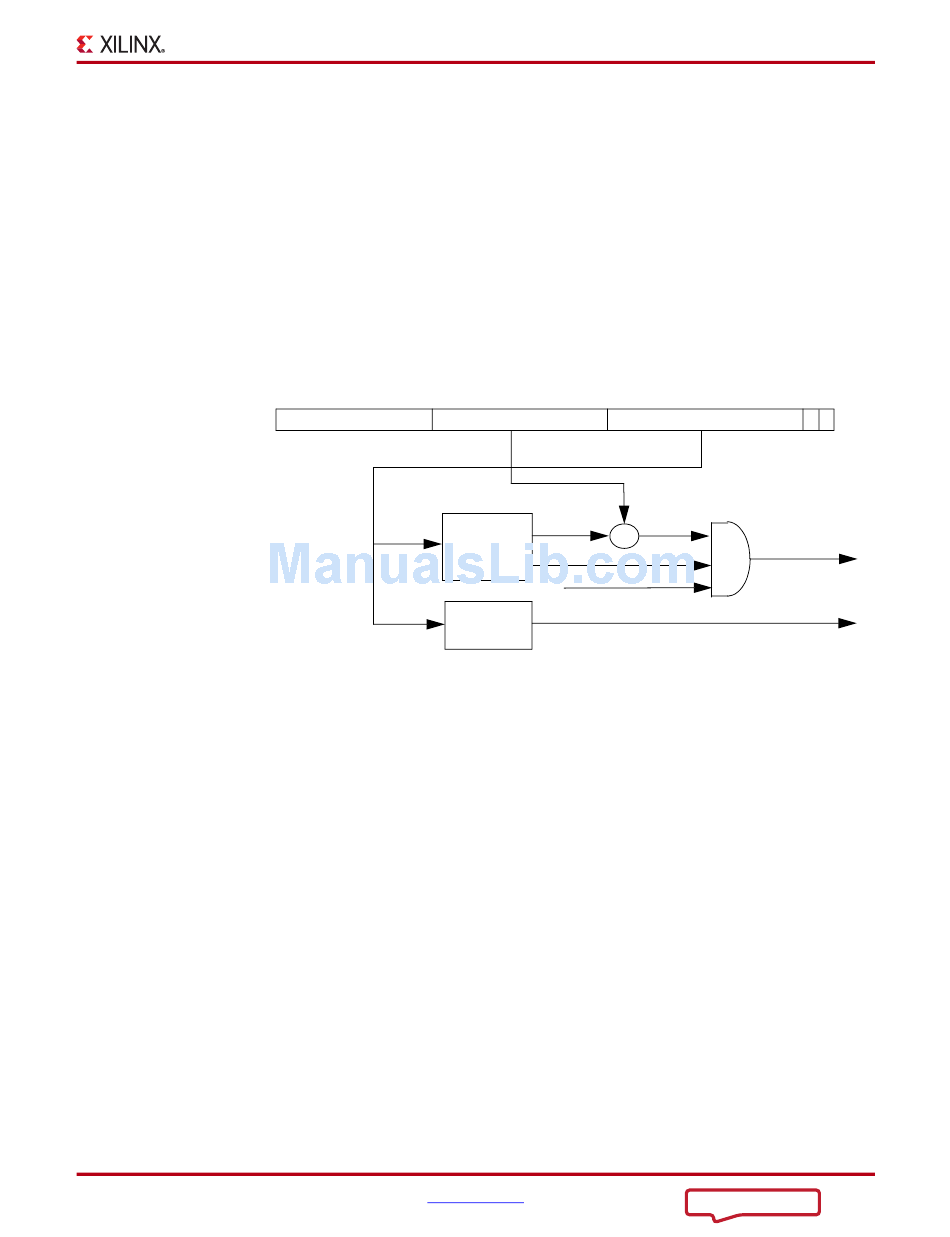

Figure 2-23: Data Cache Organization
www.xilinx.com
N
, where N is a positive integer. The range specified by
Data Address Bits
Tag Address
Cache Word Address
Tag
Tag
=
RAM
Valid
Load_Instruction
Data
RAM

Data Cache

30 31
- -
Cache_Hit
Cache_data
