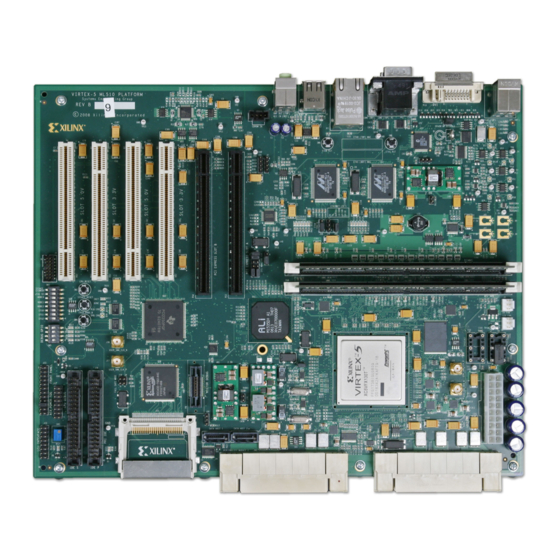

Xilinx ML510 Quick Start Manual

Xilinx inc. computer hardware user manual
Hide thumbs

Advertisement

ML510
QuickStart
August 2008

Advertisement

Table of Contents
loading

  Also See for Xilinx ML510

  Related Manuals for Xilinx ML510

  Summary of Contents for Xilinx ML510

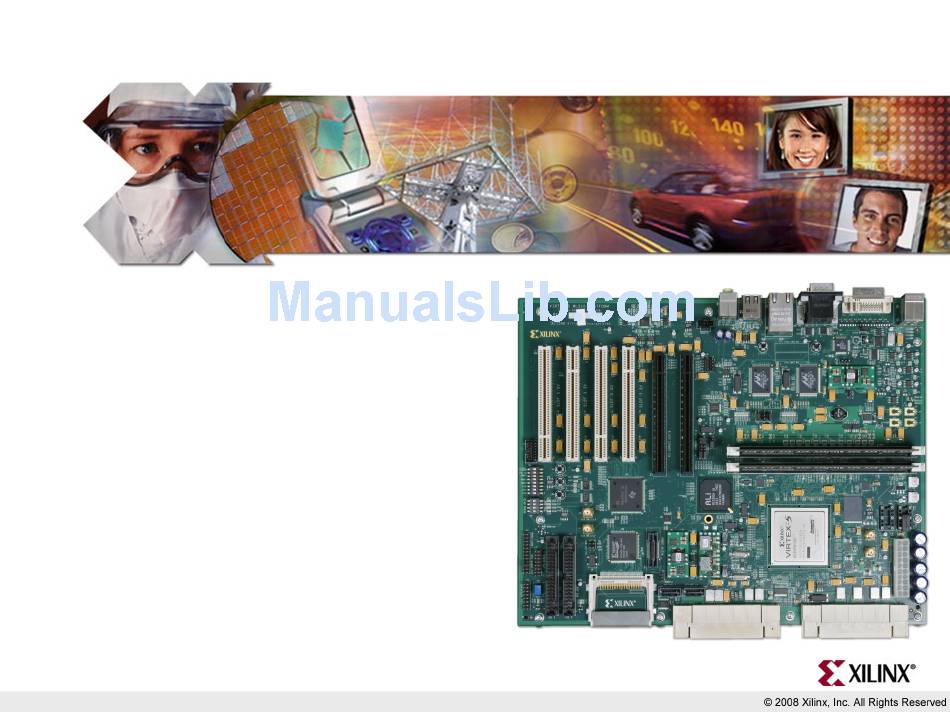

  • Page 1 ML510 QuickStart August 2008...
  • Page 2 Overview • Setup • Boot with ACE-loader ACE File • Observe LCD and Terminal messages • Load new Configuration • Re-load ACE-loader...
  • Page 3 – DDR2 Interface (512 MB) – BRAM – External Memory Controller (EMC) – Networking – UART – Interrupt Controller – GPIO – EEPROM (IIC and SPI) – Timer – System ACE CF Interface – PLB Arbiter Note: Presentation applies to the ML510...
  • Page 4 – DDR2 Interface (512 MB) – BRAM – External Memory Controller (EMC) – Networking – UART – Interrupt Controller – GPIO – EEPROM (IIC and SPI) – Timer – System ACE CF Interface – PLB Arbiter Note: Presentation applies to the ML510...
  • Page 5 ML510 BSB DIMM1 Hardware • The ML510 MicroBlaze design hardware includes: – DDR2 Interface (512 MB) – BRAM – Networking – UART – Interrupt Controller – Timer – System ACE CF Interface – PLB Arbiter Note: Presentation applies to the ML510...
  • Page 6 – DDR2 Interface (512 MB) – BRAM – External Memory Controller (EMC) – Networking – UART – Interrupt Controller – GPIO – EEPROM (IIC and SPI) – Timer – System ACE CF Interface – PLB Arbiter Note: Presentation applies to the ML510...
  • Page 7 – EEPROM (IIC and SPI) – System ACE CF Interface – PLB Arbiter • PPC440_1: – DDR2 Interface (512 MB) – BRAM (64 KB) – Networking – UART – Interrupt Controller – PLB Arbiter Note: Presentation applies to the ML510...
  • Page 8 • Refer to ml510_overview_setup.ppt for details on: – Software Requirements – ML510 Board Setup • Equipment and Cables • Software • Network – Terminal Programs • This presentation requires the 9600-8-N-1 Baud terminal setup Note: Presentation applies to the ML510...
  • Page 9: Hardware Setup

    • Connect the Xilinx Parallel Cable IV (PC4) to the ML510 board • Connect the RS232 null modem cable to the ML510 board Note: Presentation applies to the ML510 Hardware Setup...
  • Page 10 • The ML510 uses a DVI video interface • Connect a DVI monitor • Use a DVI/VGA adapter to connect a VGA monitor – http://www.belkin.com Note: Presentation applies to the ML510 Hardware Setup...
  • Page 11 Hardware Setup • USB Keyboard – www.dell.com Note: Presentation applies to the ML510...
  • Page 12: Software Setup

    Software Setup • Start a Terminal Program for each UART: Note: Presentation applies to the ML510...
  • Page 13 Factory CompactFlash • The CompactFlash shipped with the ML510 board has the following ace files preloaded: Note: Presentation applies to the ML510...
  • Page 14: Network Setup

    • Set PHY0 Jumpers • MII – Connect pins 1 & 2 on J50 and J28 • RGMII – Connect pins 1 & 2 on J50; connect Note: Refer to the ML510 User Guide – UG356 for details Network Setup...
  • Page 15: Compactflash Setup

    CompactFlash Setup • Insert the CompactFlash provided with the ML510 fully into the CompactFlash slot on the ML510 board...
  • Page 16: Equipment Setup

    Equipment Setup • Set SW3 DIP Switches to 00010101 (1 = ON) • Power-up the ML510 board Note: Presentation applies to the ML510...
  • Page 17 • The terminal window also reflects the ACE-loader application • Type the desired number in the terminal window to choose an application • After each demo, push the SysACE reset to return to bootload Note: Presentation applies to the ML510...
  • Page 18 CF1 – TestApp Peripheral • Type 1, to launch the TestApp Peripheral DIMM0 design – Set jumpers for MII; takes several minutes to complete Note: MicroBlaze DIMM0 Design...
  • Page 19 CF2 – VxWorks DIMM0 • Type 2, to launch the VxWorks on the Pcore DIMM0 design Note: PPC440 DIMM0 Design...
  • Page 20 CF3 – TestApp Peripheral • Type 3, to launch the TestApp Peripheral DIMM1 design – View on COM2; takes several minutes to complete Note: MicroBlaze DIMM1 Design...
  • Page 21 CF4 – VxWorks DIMM1 • Type 4, to launch the VxWorks on the BSB DIMM1 design Note: PPC440 DIMM1 Design...
  • Page 22 CF5 – Dual VxWorks • Type 5, to launch the Dual Processor VxWorks design – Set jumpers for RGMII Note: Dual PPC440 Design...
  • Page 23 CF6 – My ACE • Type 6, to launch the placeholder design, my_ace – Same message appears on the Monitor Note: PPC440 Pcore DIMM0 Design...
  • Page 24 CF7 – Slideshow • Type 7, to launch the slideshow application • The slideshow loads the presentation into memory then presents it Note: Presentation applies to the ML510...
  • Page 25 Slideshow • The slideshow app will present a series of slides on the Monitor: Note: Presentation applies to the ML510...
  • Page 26 Documentation • Virtex-5 – Silicon Devices http://www.xilinx.com/products/silicon_solutions – Virtex-5 Multi-Platform FPGA http://www.xilinx.com/products/silicon_solutions/fpgas/virtex/virtex5 – Virtex-5 Family Overview: LX, LXT, SXT, and FXT Platforms http://www.xilinx.com/support/documentation/data_sheets/ds100.pdf – Virtex-5 FPGA DC and Switching Characteristics Data Sheet http://www.xilinx.com/support/documentation/data_sheets/ds202.pdf...
  • Page 27 Documentation • Virtex-5 – Virtex-5 FPGA User Guide http://www.xilinx.com/support/documentation/user_guides/ug190.pdf – Virtex-5 FPGA Configuration User Guide http://www.xilinx.com/support/documentation/user_guides/ug191.pdf – Virtex-5 System Monitor User Guide http://www.xilinx.com/support/documentation/user_guides/ug192.pdf – Virtex-5 Packaging and Pinout Specification http://www.xilinx.com/support/documentation/user_guides/ug195.pdf...
  • Page 28 Documentation • Virtex-5 RocketIO – RocketIO GTP Transceivers http://www.xilinx.com/products/silicon_solutions/fpgas/virtex/virtex5/ capabilities/RocketIO_GTP.htm – RocketIO GTX Transceivers http://www.xilinx.com/products/silicon_solutions/fpgas/virtex/virtex5/ capabilities/RocketIO_GTX.htm – RocketIO GTP Transceiver User Guide – UG196 http://www.xilinx.com/support/documentation/user_guides/ug196.pdf – RocketIO GTX Transceiver User Guide – UG198 http://www.xilinx.com/support/documentation/user_guides/ug198.pdf...
  • Page 29 Documentation • Design Resources – ISE Development Tools and IP http://www.xilinx.com/ise – Integrated Software Environment (ISE) Foundation Resources http://www.xilinx.com/ise/logic_design_prod/foundation.htm – ISE Manuals http://www.xilinx.com/support/software_manuals.htm – ISE Development System Reference Guide http://toolbox.xilinx.com/docsan/xilinx10/books/docs/dev/dev.pdf – ISE Development System Libraries Guide http://toolbox.xilinx.com/docsan/xilinx10/books/docs/virtex5_hdl/virtex5_hdl.pdf...
  • Page 30 Documentation • Additional Design Resources – Customer Support http://www.xilinx.com/support – Xilinx Design Services: http://www.xilinx.com/xds – Titanium Dedicated Engineering: http://www.xilinx.com/titanium – Education Services: http://www.xilinx.com/education – Xilinx On Board (Board and kit locator): http://www.xilinx.com/xob...
  • Page 31 Documentation • Platform Studio – Embedded Development Kit (EDK) Resources http://www.xilinx.com/edk – Embedded System Tools Reference Manual http://www.xilinx.com/support/documentation/sw_manuals/edk10_est_rm.pdf – EDK Concepts, Tools, and Techniques http://www.xilinx.com/support/documentation/sw_manuals/edk_ctt.pdf...
  • Page 32 Documentation • PowerPC 440 – PowerPC 440 Processor http://www.xilinx.com/powerpc – Embedded Processor Block in Virtex-5 FPGAs Reference Guide – UG200 http://www.xilinx.com/support/documentation/user_guides/ug200.pdf – PPC440 Virtex-5 Wrapper – DS621 http://www.xilinx.com/support/documentation/ip_documentation/ ppc440_virtex5.pdf – DDR2 Memory Controller for PowerPC 440 Processors – DS567 http://www.xilinx.com/support/documentation/data_sheets/ds567.pdf...
  • Page 33 Documentation • MicroBlaze – MicroBlaze Processor http://www.xilinx.com/microblaze – MicroBlaze Processor Reference Guide – UG081 http://www.xilinx.com/support/documentation/sw_manuals/mb_ref_guide.pdf...
  • Page 34 – Xilinx Memory Corner http://www.xilinx.com/products/design_resources/mem_corner – Additional Memory Resources http://www.xilinx.com/support/software/memory/protected/index.htm – Xilinx Memory Interface Generator (MIG) 2.2 User Guide http://www.xilinx.com/support/documentation/ip_documentation/ug086.pdf – Memory Interfaces Made Easy with Xilinx FPGAs and the Memory Interface Generator http://www.xilinx.com/support/documentation/white_papers/wp260.pdf Memory Interface Solutions with Xilinx FPGAs –...
  • Page 35 Documentation • ChipScope Pro – ChipScope Pro 10.1i Serial IO Toolkit User Manual http://www.xilinx.com/ise/verification/chipscope_pro_siotk_10_1_ug213.pdf – ChipScope Pro 10.1i ChipScope Pro Software and Cores User Guide http://www.xilinx.com/ise/verification/chipscope_pro_sw_cores_10_1_ug029.pdf...
  • Page 36 Documentation • Ethernet – Virtex-5 Embedded Tri-Mode Ethernet MAC Wrapper Data Sheet http://www.xilinx.com/support/documentation/ip_documentation/ v5_emac_ds550.pdf – Virtex-5 Embedded Tri-Mode Ethernet MAC Wrapper Getting Started Guide http://www.xilinx.com/support/documentation/ip_documentation/ v5_emac_gsg340.pdf – Virtex-5 Tri-Mode Ethernet Media Access Controller User Guide http://www.xilinx.com/support/documentation/user_guides/ug194.pdf – LightWeight IP (lwIP) Application Examples – XAPP1026...
  • Page 37 Documentation • PLB v4.6 IP – Processor Local Bus (PLB) v4.6 Data Sheet – DS531 http://www.xilinx.com/support/documentation/ip_documentation/plb_v46.pdf – Multi-Port Memory Controller (MPMC) – DS643 http://www.xilinx.com/support/documentation/ip_documentation/mpmc.pdf – XPS Multi-CHannel External Memory Controller (XPS MCH EMC) – DS575 http://www.xilinx.com/support/documentation/ip_documentation/ xps_mch_emc.pdf – XPS LocalLink TEMAC – DS537 http://www.xilinx.com/support/documentation/ip_documentation/xps_ll_temac.pdf...
  • Page 38 Documentation • PLB v4.6 IP – XPS IIC Bus Interface – DS606 http://www.xilinx.com/support/documentation/ip_documentation/xps_iic.pdf – XPS SYSACE (System ACE) Interface Controller – DS583 http://www.xilinx.com/support/documentation/ip_documentation/xps_sysace.pdf – XPS Timer/Counter – DS573 http://www.xilinx.com/support/documentation/ip_documentation/xps_timer.pdf – XPS Interrupt Controller – DS572 http://www.xilinx.com/support/documentation/ip_documentation/xps_intc.pdf – Using and Creating Interrupt-Based Systems Application Note...
  • Page 39 Documentation • PLB v4.6 IP – XPS General Purpose Input/Output (GPIO) – DS569 http://www.xilinx.com/support/documentation/ip_documentation/xps_gpio.pdf – XPS External Peripheral Controller (EPC) – DS581 http://www.xilinx.com/support/documentation/ip_documentation/xps_epc.pdf – XPS 16550 UART – DS577 http://www.xilinx.com/support/documentation/ip_documentation/ xps_uart16550.pdf – PLBV46 to DCR Bridge Data Sheet – DS578 http://www.xilinx.com/support/documentation/ip_documentation/...
  • Page 40 Documentation • IP – Local Memory Bus Data Sheet – DS445 http://www.xilinx.com/support/documentation/ip_documentation/lmb_v10.pdf – Block RAM Block Data Sheet – DS444 http://www.xilinx.com/support/documentation/ip_documentation/bram_block.pdf – Microprocessor Debug Module Data Sheet – DS641 http://www.xilinx.com/support/documentation/ip_documentation/mdm.pdf – LMB Block RAM Interface Controller Data Sheet – DS452 http://www.xilinx.com/support/documentation/ip_documentation/...
  • Page 41 Documentation • IP – JTAGPPC Controller Data Sheet – DS298 http://www.xilinx.com/support/documentation/ip_documentation/jtagppc_cntlr.pdf – Processor System Reset Module Data Sheet – DS402 http://www.xilinx.com/support/documentation/ip_documentation/ proc_sys_reset.pdf – Clock Generator v2.0 Data Sheet – DS614 http://www.xilinx.com/support/documentation/ip_documentation/ clock_generator.pdf – Util Bus Split Operation Data Sheet – DS484 http://www.xilinx.com/support/documentation/ip_documentation/...
  • Page 42 Documentation • ML510 – ML510 Overview http://www.xilinx.com/ml510 – ML510 Evaluation Platform User Guide – UG356 http://www.xilinx.com/support/documentation/boards_and_kits/ug356.pdf – ML510 Reference Design User Guide – UG355 http://www.xilinx.com/support/documentation/boards_and_kits/ug355.pdf – ML510 Quickstart Tutorial http://www.xilinx.com/products/boards/ml510/docs/ml510_quickstart.pdf...
  • Page 43 Documentation • ML510 – ML510 Schematics http://www.xilinx.com/support/documentation/boards_and_kits/ ml510_schematics.pdf – ML510 Bill of Material http://www.xilinx.com/support/documentation/boards_and_kits/ml510_bom.xls...
