Component Locations, and Designations
Call Out
1
2
3
4
See Also
"Memory and DIMM Reference" on page 158
■

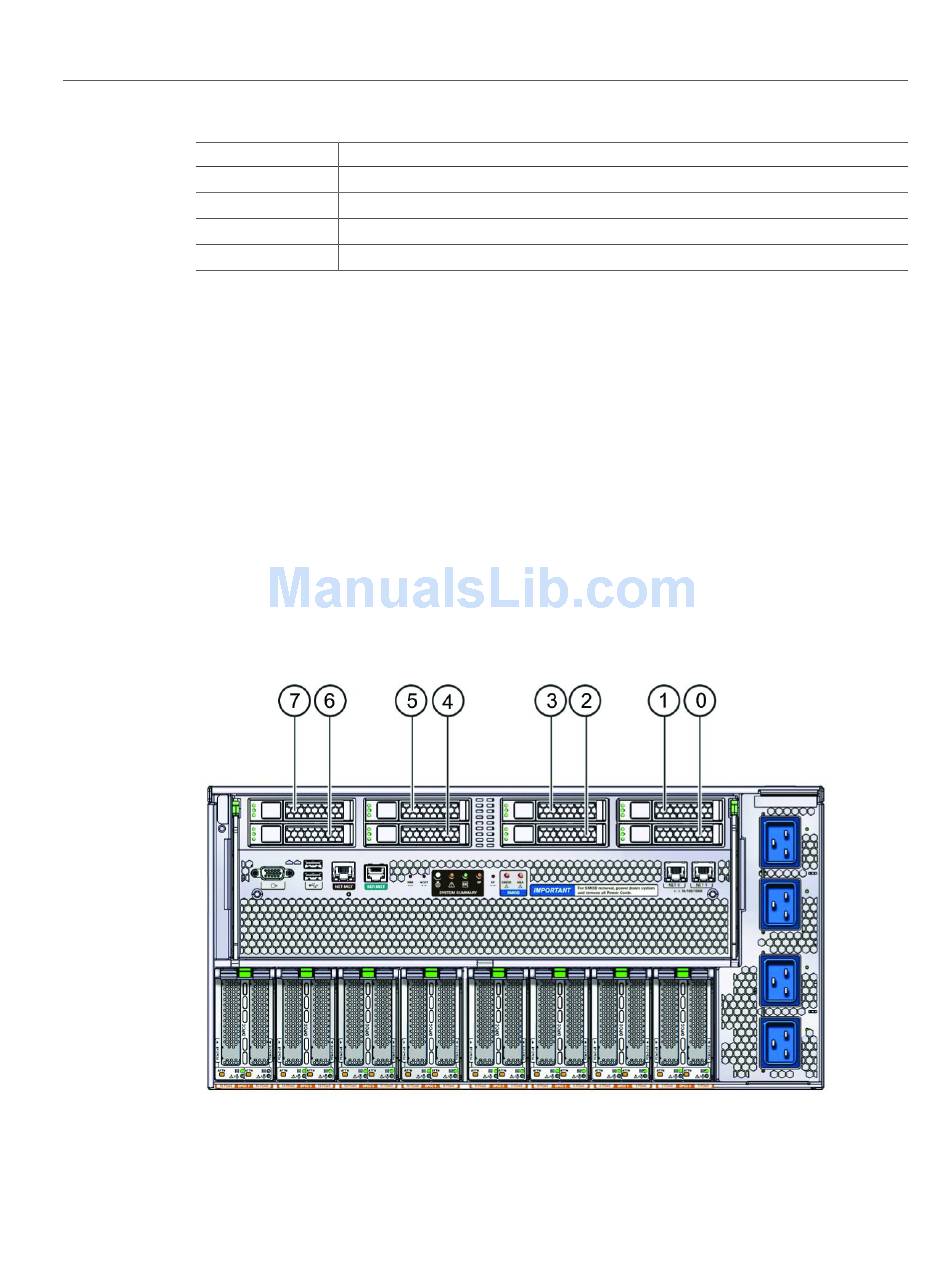

Storage Drive Slot Designations
The eight storage drive slots are in the system module (SMOD) and directly accessible at the
back of the server. Slots are arranged in two stacked rows of four slots and designated from
right to left.
The top row contains slots 0, 2, 4, and 6.
■
The bottom row contains slots 1, 3, 5, and 7
■
86
Oracle Server X5-8 Service Manual • December 2015
Description
Slots D12–D17
Slots D18–D23
Slots D6–D11
Slots D0–D5
