Prepare the Server for Cold Service

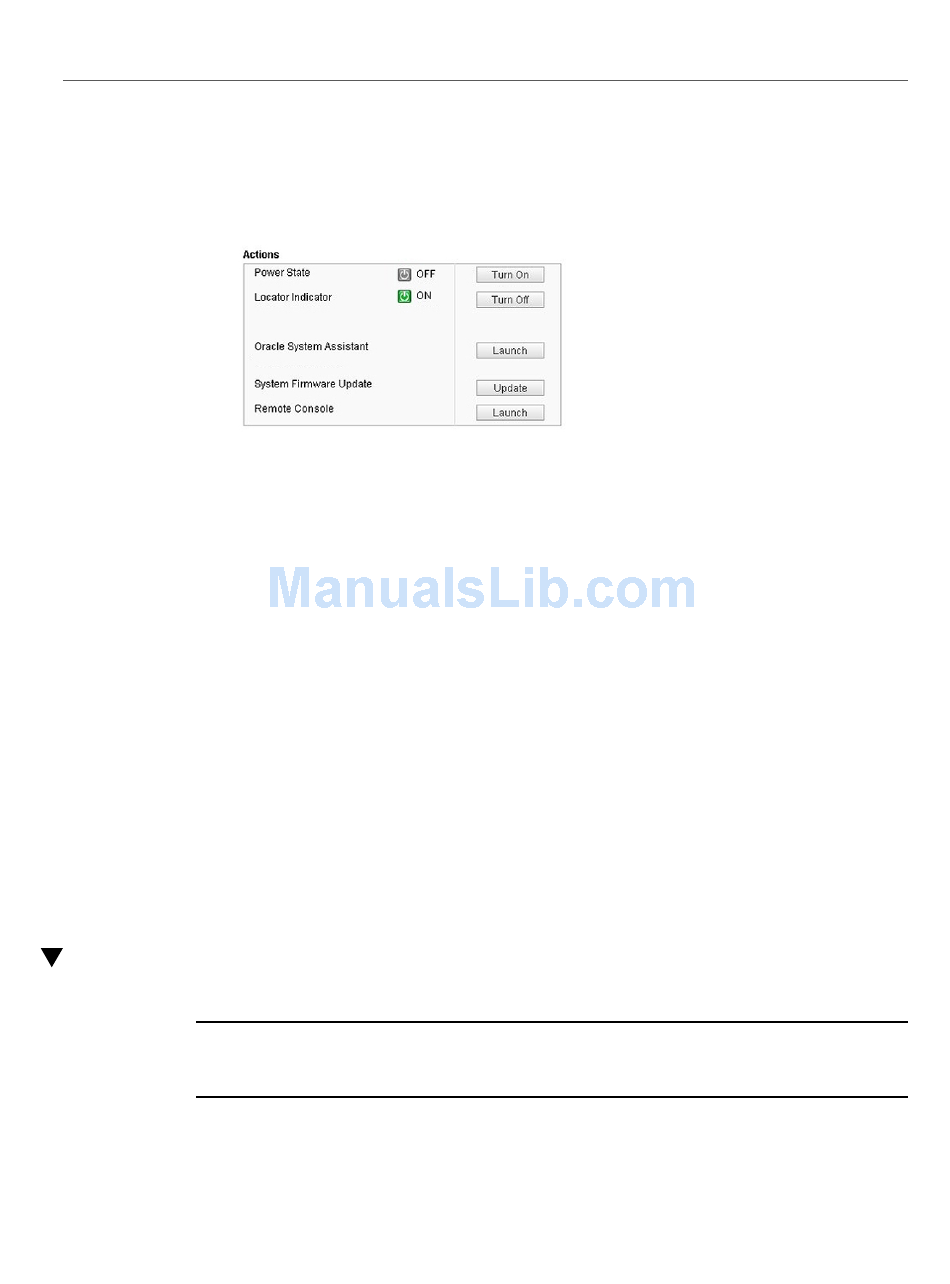

This action activates the Locator indicator on the server front and back panel. For other
options, see
When at the server, set up an ESD-safe service space where you can place
2.
components.
See "Performing Electrostatic Discharge and Static Prevention Measures" on page
3. Press the Locator indicator button to deactivate the indicator. For more
information, see
Begin the CMOD removal procedures. For details, see
4.
Module (CMOD) Components" on page
The server transitions to warm service mode by removing power from the CMODs when it
senses one of the following events:
On an eight-CMOD system, when both fans in a single column are removed.
■
On a four CMOD system, when both fans in a single column are removed from the left-
■
hand fan frame (CMODs 0 through 3), or when a CMOD is inserted into an unoccupied
CMOD slot (4 through 7).
"Servicing the Server" on page 79
Next Steps ■
"Servicing Components" on page 113
■
Prepare the Server for Cold Service
Note -
However, the procedure can be performed using only the Oracle ILOM CLI interface (for more
information, refer to the Oracle ILOM documentation).
98 Oracle Server X5-8 Service Manual • December 2015
"Managing the Locator Indicator" on page
"Control the Locator Indicator Locally" on page
This procedure uses a combination of the Oracle ILOM web and CLI interfaces.
108.
"Servicing the CPU
136.
90.
110.
