Component Locations, and Designations

Component Designations

These sections show the location and designation of CRU and FRU components:
"Fan Module Designations" on page 82
■
"Power Supply Slot Designations" on page 83
■
"CMOD Slot Designations" on page 84
■
"Memory Slot Designations" on page 85
■
"Storage Drive Slot Designations" on page 86
■
"DPCC and PCIe Card Slot Designations" on page 87
■
"AC Input Power Block" on page 88
■
Fan Module Designations

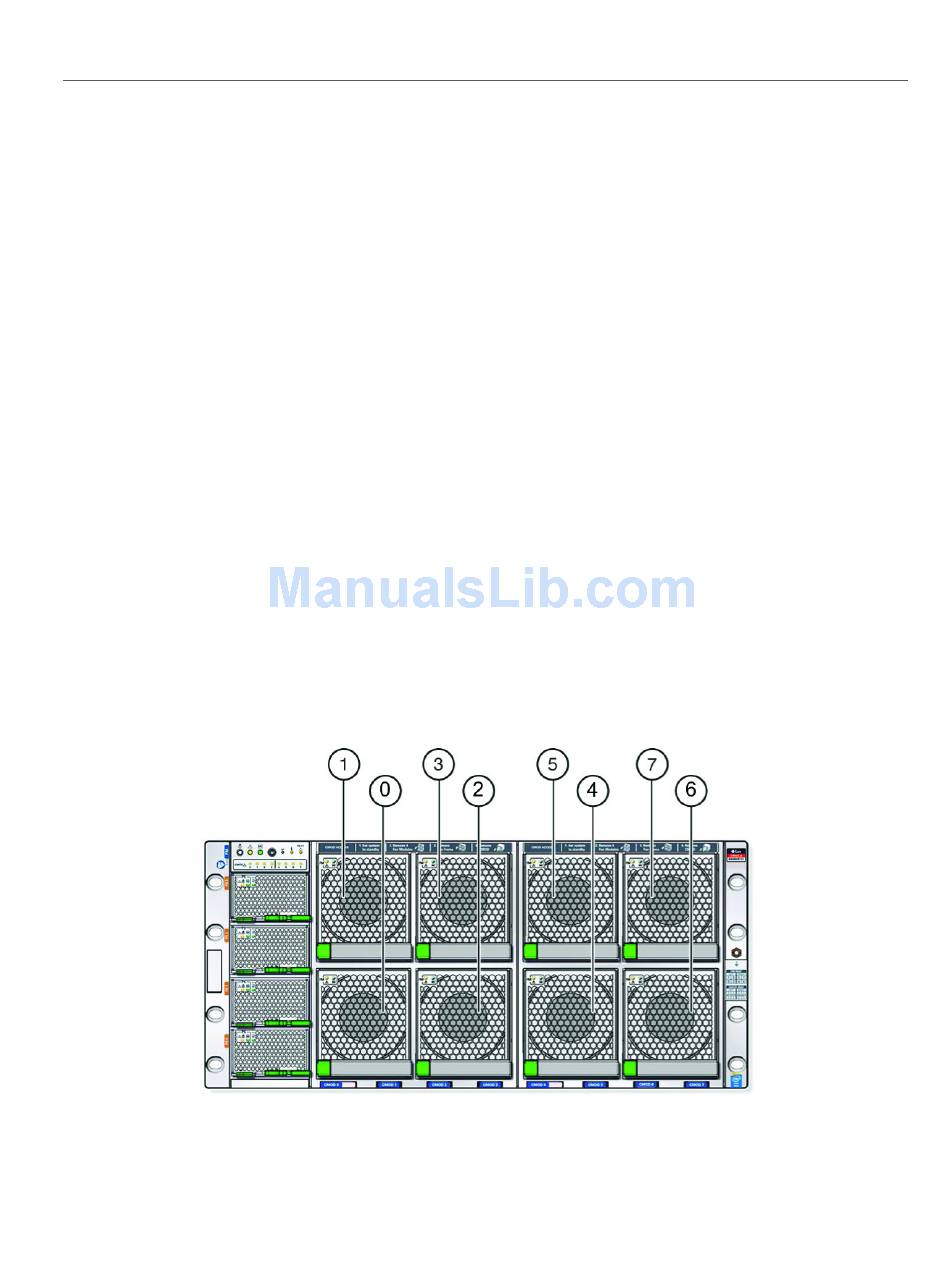

The eight fan modules (FMs) are directly accessible at the front of the server and are arranged
in two stacked rows of four FMs.
Bottom row from left to right: FM 0, FM 2, FM 4, and FM 6.
■
Top row from left to right: FM 1, FM 3, FM 5, and FM 7.
■
