Front Indicator Module (FIM) Panel

The front indicator module (FIM) panel is located at the top left corner of the server (as viewed
from the front of the server). It contains indicators and buttons that allow you to manage the
server and determine its status.

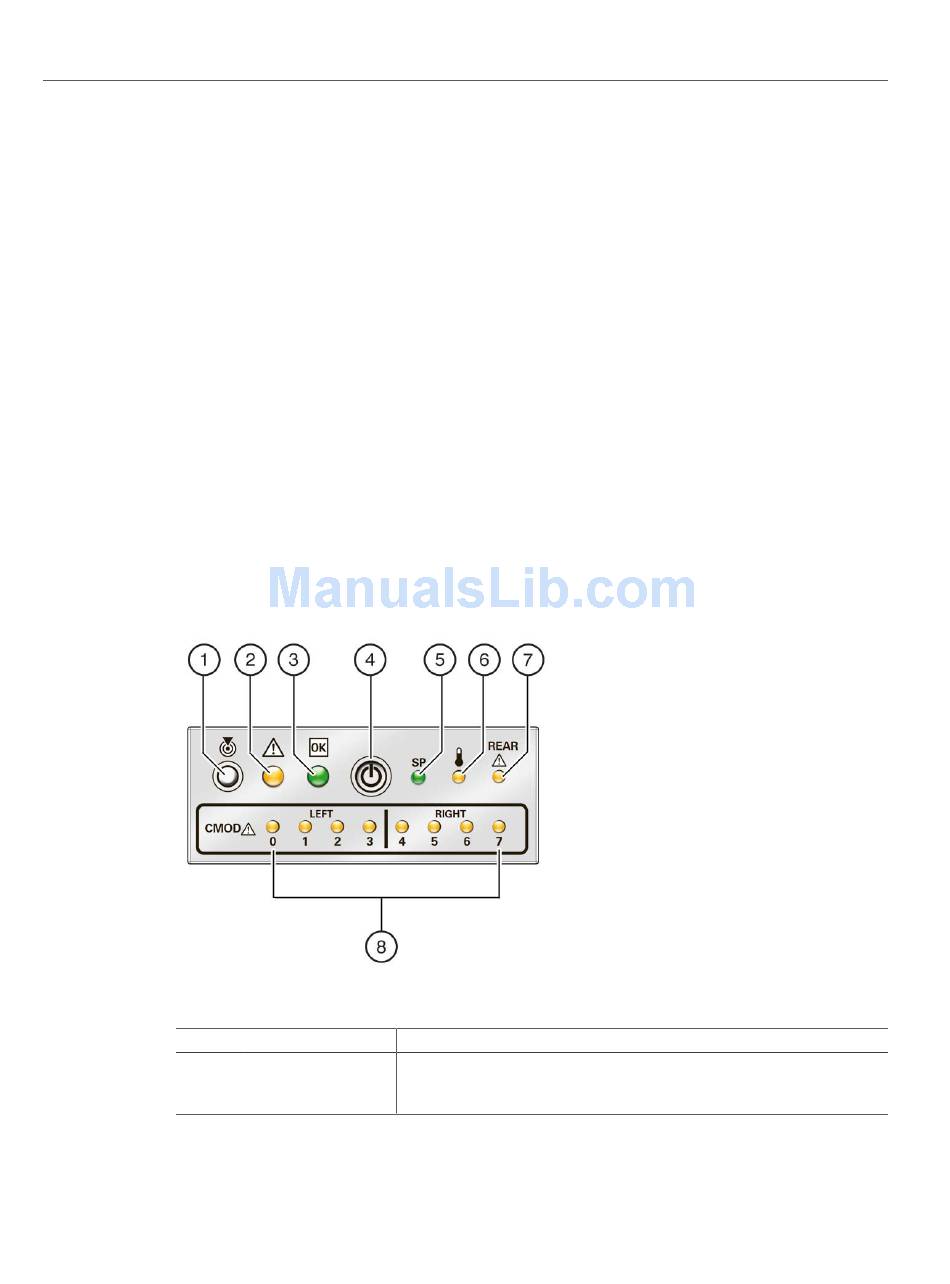

The following illustration shows the buttons and indicators on the FIM.
Call Out Description
1 Locator indicator and
button
Details
When activated remotely, it helps you find the server in a rack or room of
servers. For more information about managing the Locator indicator remotely
and locally, see "Managing the Locator Indicator" on page
Server Subsystems
108.
