Upgrade the Server from Four to Eight CMODs
d. To install the CMOD cover, align the standoffs on the inside of the cover with
the slots in the CMOD chassis.
e. Lower the cover onto the CMOD.
This position leaves a gap between the lead edge of the cover and the front edge of the
CMOD.

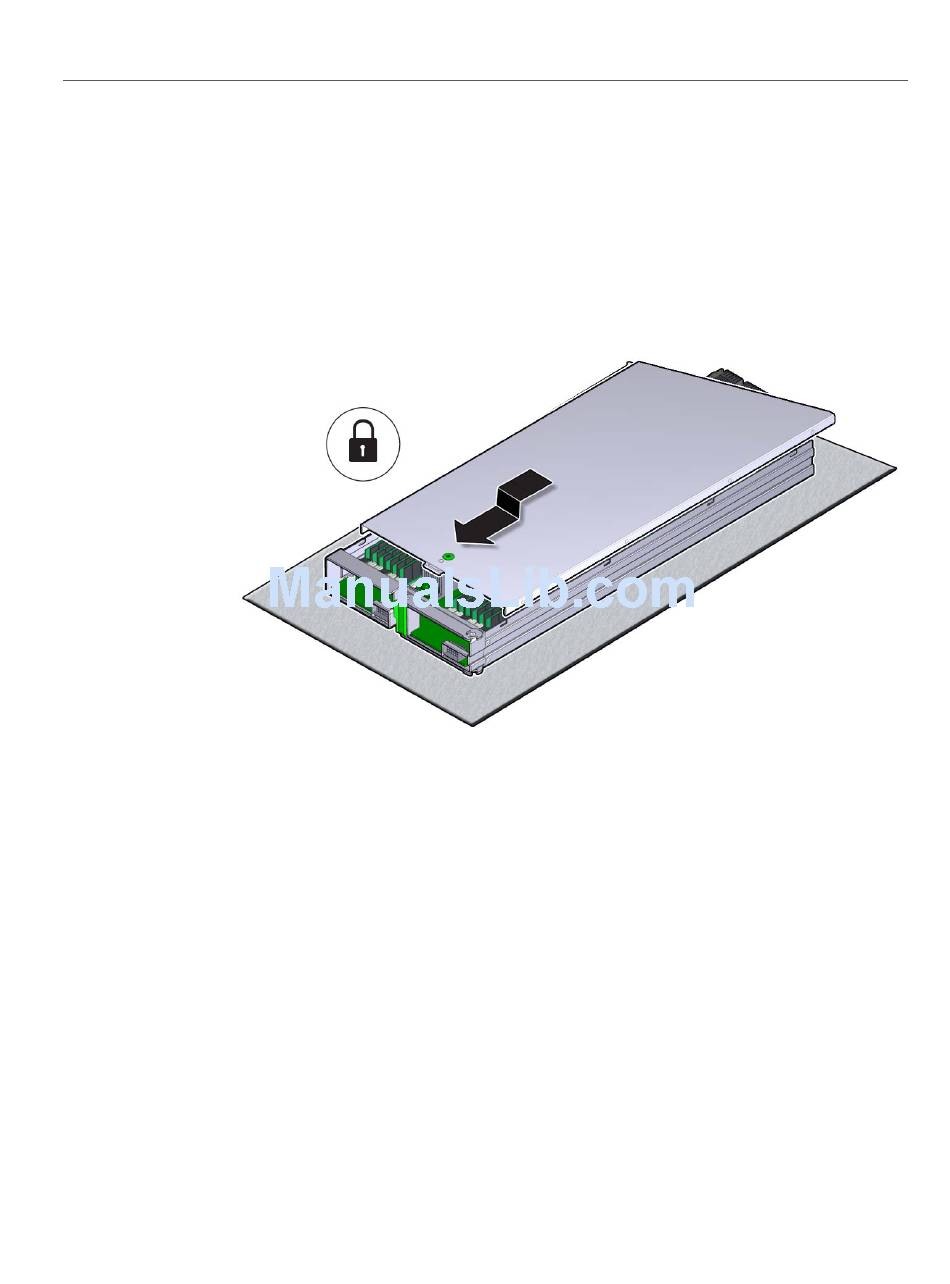

f. Slide the cover toward the front of the CMOD until it locks in place.
5. To upgrade the server, do the following:
Install a CMOD in the first vacant leftmost slot. See
a.
CMOD" on page
Repeat the above step for the remaining three slots.
b.
Install both fan frames. See
6.
Install all eight fan modules. See
7.
116 Oracle Server X5-8 Service Manual • December 2015
143.
"Install a Fan Frame" on page
"Install a Fan Module" on page
"Install a
124.
120.
