Storage Drive Unit Indicators

Storage drives are installed in carriers. Each storage drive carrier has three indicators arranged
in a single stacked row and from bottom to top.

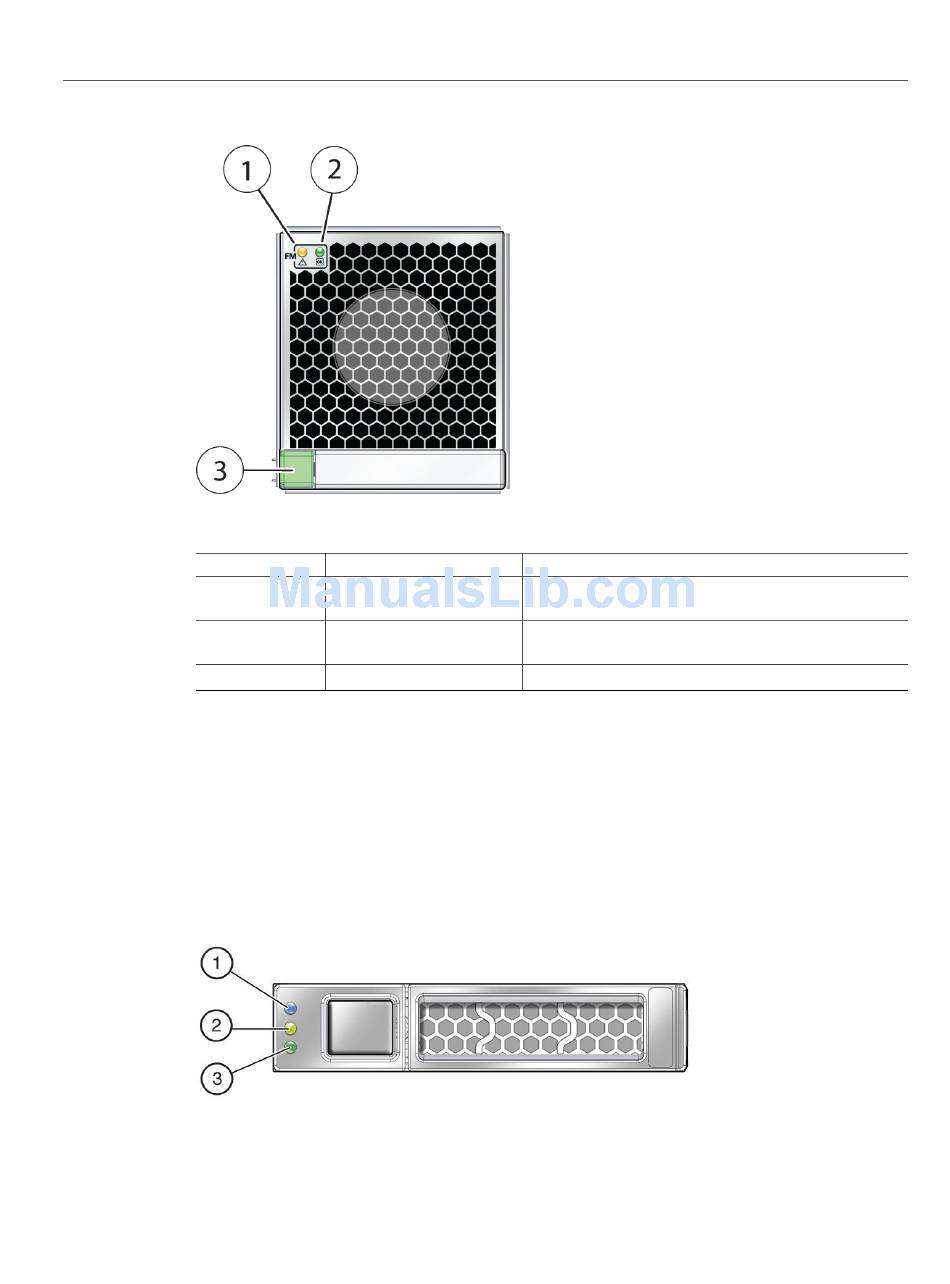

The following illustration shows the front of the storage drive carrier and the storage drive
indicators.
38
Oracle Server X5-8 Service Manual • December 2015
Description
Service Action Required
indicator (amber)
Status OK indicator (green)
Release button
Function
Lights steady on when the FM is in a fault state.
Lights steady on when the FM is powered on and functioning
properly.
Press to release the fan module so you can remove it.
