For component serviceability, locations, and designations, see
Designations" on page
79.
SMOD Motherboard

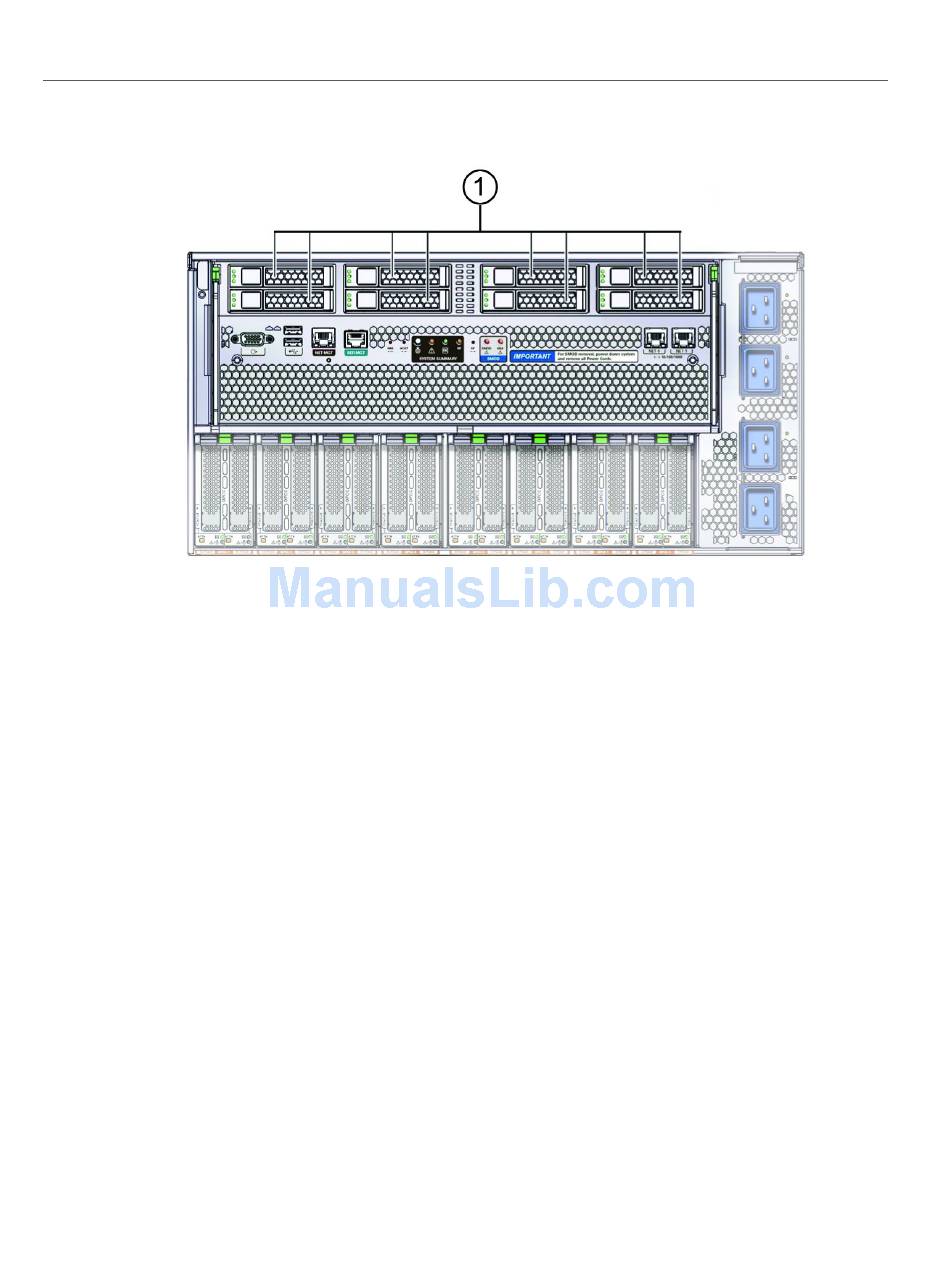

The SMOD motherboard hosts the service processor (SP), two disk backplanes (for the
externally accessible server storage drives), the system real time clock battery, and an energy
storage module for the HBA. It also has a PCIe riser for the server storage HBA, and two
internal USB ports. The PCIe riser and the internal USB ports are located on the bottom of the
SMOD.
For component serviceability, locations, and designations, see
Designations" on page
79.
Service Processor (SP)
The system Emulex Pilot 3 service processor (SP) is located on the SMOD motherboard and is
accessible locally and remotely through management ports on the front of the SMOD. The SP
contains Oracle ILOM, an embedded server management tool. The SP is not removable.
System Module (SMOD) Overview
"Component Locations, and
"Component Locations, and
Server and Components Overview
31
