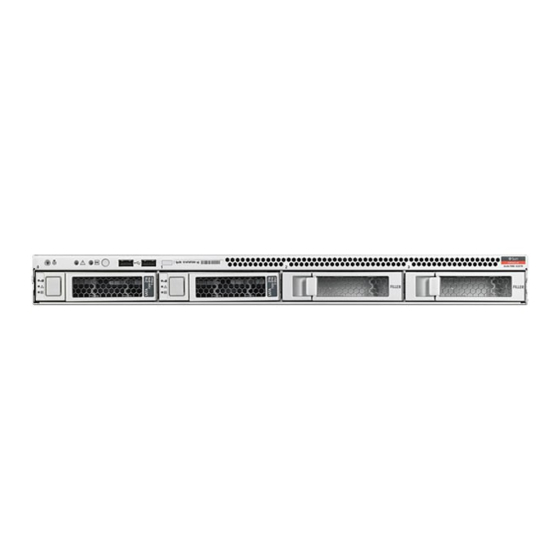

Sun Fire X2270 M2 Server Service Manual
Part No: 821–1345
January, 2012, –12

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Sun Fire X2270 M2 and is the answer not in the manual?

Questions and answers

Summary of Contents for Oracle Sun Fire X2270 M2

  • Page 1 Sun Fire X2270 M2 Server Service Manual Part No: 821–1345 January, 2012, –12...
  • Page 2 émanant de tiers. Oracle Corporation et ses affiliés déclinent toute responsabilité ou garantie expresse quant aux contenus, produits ou services émanant de tiers. En aucun cas, Oracle Corporation et ses affiliés ne sauraient être tenus pour responsables des pertes subies, des coûts occasionnés ou des dommages causés par l’accès à...
  • Page 3: Table Of Contents

    Powering On and Powering Off the Server ................27 Component Replacement Procedures and Topic ..............29 Sun Fire X2270 M2 Server Service Procedures and Information ..........77 Using the Tools and Drivers CD ....................77 How to Backup Motherboard FRUID Information ..............78 LED Locations and Meanings ....................
  • Page 5: Preface

    “Download Server System Tools and Drivers” on page 7 ■ “Documents History” on page 8 ■ Related Books The following is a list of documents related to Oracle's Sun Fire X2270 M2 server. These and additional support documents are available on the library page http://www.oracle.com/pls/topic/lookup?ctx=sfx2270m2&id=homepage. Document Group...
  • Page 6 How to use ILOM through the web (ILOM) 3.0 Web Interface Procedures interface. Guide Oracle Integrated Lights Out Manager How to use ILOM through commands. (ILOM) 3.0 CLI Procedures Guide Sun Fire X2270 M2 Server Service Manual • January, 2012, –12...
  • Page 7: About This Documentation (Pdf And Html)

    In the Search screen, click Product or Family (Advanced Search). The screen appears with search fields. In the Product field, select the product from the drop-down list. Alternatively, type a full or partial product name (for example, Sun Fire X2270 M2) until a match appears.
  • Page 8: Documents History

    Oracle Solaris Operating System Installation Guide revised for document errata. Service Manual revised for document errata. September 2011, Product Notes and OS Installation Guides updated for SW v1.3.0 release. ■ Sun Fire X2270 M2 Server Service Manual • January, 2012, –12...
  • Page 9: Sun Fire X2270 M2 Server Service Manual Organization

    Sun Fire X2270 M2 Server Service Manual Organization This Sun Fire X2270 M2 Server Service Manual provides information and procedures for maintaining your server. The following table describes how this content is organized. Section Link General server feature and component “...
  • Page 11: Sun Fire X2270 M2 Server Overview

    “Front and Rear External Features and Components ” on page 15 ■ Components and Features “Components List” on page 11 ■ “Supported Operating Systems and the Preinstalled Oracle Solaris OS Option” on page 13 ■ “System Management” on page 14 ■ “Tools and Drivers CD Software” on page 14 ■...
  • Page 12 90 degree angle PCIe riser External I/O Serial/RJ-45 and USB 2.0 ■ One RJ-45 serial port ■ Five USB 2.0 ports (2 front, 2 rear, and 1 internal) Sun Fire X2270 M2 Server Service Manual • January, 2012, –12...
  • Page 13 OS with your site-specific parameters. For instructions on configuring the preinstalled OS, refer to the Sun Fire X2270 M2 Server Installation Guide. You can also install one of the supported versions of the Solaris OS, Oracle VM, Linux, Windows, or VMware ESX. Supported Operating Systems...
  • Page 14: System Management

    Next:“Tools and Drivers CD Software” on page 14 Tools and Drivers CD Software The Sun Fire X2270 M2 Server Tools and Drivers CD, which is available both online and separately in the optional Sun Fire X2270 M2 Server Media and Documentation Kit, contains drivers for OS installation and Intel NIC and Intel RAID/AHCI.
  • Page 15: Front And Rear External Features And Components

    Next:“Front and Rear External Features and Components ” on page 15 Front and Rear External Features and Components This section shows the locations of external features and components of both the front and rear of the Sun Fire X2270 M2 Server. “Front Panel Features and Components” on page 15 ■...
  • Page 16 See also: “Locations of Internal Server Components” on page 30 ■ “Rear Panel System Status LEDs” on page 80 ■ “Front Panel Features and Components” on page 15 ■ Sun Fire X2270 M2 Server Service Manual • January, 2012, –12...
  • Page 17: Maintaining The Sun Fire X2270 M2 Server

    Maintaining the Sun Fire X2270 M2 Server This section contains information that describes how to add, replace, and configure components in the Sun Fire X2270 M2 Server after it has been set up: “Preparing for Service and Operation” on page 17 ■...
  • Page 18 Equipment damage possible. The covers must be in place for proper air flow. Caution – For your protection, observe the following safety precautions when setting up your equipment: Follow all Oracle cautions, warnings, and instructions marked on the equipment and ■ described in Important Safety Information for Sun Hardware Systems.
  • Page 19 The following is a list of customer-replaceable units (CRUs) and field-replaceable units (FRUs) for the Sun Fire X2270 M2 Server. CRU and FRU designations refer to serviceability. For reasons of safety and complexity, a component designated as a FRU must be serviced by an Oracle Service Technician.
  • Page 20: Tools And Supplies Needed

    Front I/O cable kit Riser card, PCIe x16 slot Next:“Tools and Supplies Needed” on page 20 Tools and Supplies Needed You need the following tools and supplies to perform Sun Fire X2270 M2 Server maintenance procedures: #2 Phillips screwdriver (6 inches) ■...
  • Page 21 Tools and Supplies Needed ▼ How to Prepare for Service Review the Sun Fire X2270 M2 Server Sun Fire X2270 M2 Server Product Notes. The Product Notes contain update information about issues related to hardware and software. Review the safety information. See “Important Safety Information”on page...
  • Page 22 This action releases the server from the rack allowing it to slide freely. Do not leave the server unattended. Caution – Slide the server away from the rack until the mounting brackets on the side of the server clear the rails. Sun Fire X2270 M2 Server Service Manual • January, 2012, –12...
  • Page 23: How To Install The Server Into The Rack

    Tools and Supplies Needed Set the server on a flat stable surface. If necessary, push the extended rails into the rack. “How to Install the Server Into the Rack” on page 23 See Also “How to Remove the Server Cover” on page 25 Next Steps ▼...
  • Page 24 You will hear a click. Verify that the server is securely mounted in the rack and that the slide rails locks are Caution – engaged with the mounting brackets before continuing. Sun Fire X2270 M2 Server Service Manual • January, 2012, –12...
  • Page 25 Tools and Supplies Needed “How to Prepare for Operation” on page 26 Next Steps “Rear Panel Features and Components” on page 16 See Also ▼ How to Remove the Server Cover Prepare the server for service. See “How to Prepare for Service”on page Loosen the captive screw that secures the cover to the chassis.
  • Page 26 Connect all external cables to the system. To apply AC power, connect the AC power cords to the server. When the AC power is applied, the server enters standby mode. Sun Fire X2270 M2 Server Service Manual • January, 2012, –12...
  • Page 27: Powering On And Powering Off The Server

    “How to Power On the Server” on page 28 ■ Power Modes The Sun Fire X2270 M2 Server has two power modes, full-power mode and standby-power mode. In full-power mode, power is supplied to all the server components (for example, CPU, hard drives, fans).
  • Page 28 In standby power mode, the Power/OK LED on the front panel blinks, indicating that the service processor is working and the system is ready to be fully powered on to full-power mode (see“Power Modes” on page 27). Sun Fire X2270 M2 Server Service Manual • January, 2012, –12...
  • Page 29: Component Replacement Procedures And Topic

    “Replacing a Blower Module (CRU)” on page 54 SP module “Removing and Installing the SP Module (CRU)” on page 59 Internal cabling “Sun Fire X2270 M2 Server Internal Cabling” on page 61 Cable harness “Replacing the SATA Cable Harness (CRU)” on page 62 I/O cable “Replacing the Front I/O Cable (CRU)”...
  • Page 30 CPU 1 PCIe riser and card Unsupported component SP board CPU 0 DIMM slots (6) for CPU 0 Power supply Air duct 10 System battery (located under the air duct) Sun Fire X2270 M2 Server Service Manual • January, 2012, –12...
  • Page 31 Replacing the System Battery (CRU) Legend 11 Blower modules (3) 12 HD/SSD backplane 13 Removable SATA HD/SSD 3 14 Removable SATA HD/SSD 2 15 Removable SATA HD/SSD 1 16 Removable SATA HD/SSD 0 17 I/O board See also: “CRU and FRU List” on page 19 ■...
  • Page 32 Do not dispose of the battery with regular waste. Discard used batteries according to Caution – the manufacturer’s instructions or in accordance with your facility or local waste-disposal agency. Sun Fire X2270 M2 Server Service Manual • January, 2012, –12...
  • Page 33 Removing and Installing DIMMs (CRU) Insert the new system battery into the battery holder with the side labeled“+”facing upward. Replace the battery only with the identical model. Note – Install the air duct. See “How to Install the Air Duct”on page Prepare the server for operation.
  • Page 34 “Error Correction and Parity” on page 36 ■ “DIMM Slot Designations” on page 37 ■ “DIMM Population Rules” on page 38 ■ “Removing and Installing DIMMs (CRU)” on page 33 ■ Sun Fire X2270 M2 Server Service Manual • January, 2012, –12...
  • Page 35 Removing and Installing DIMMs (CRU) ▼ How to Install a DIMM As an ESD precaution, do not remove the DIMM from its packaging until you are ready to Tip – install it. See: Before You Begin “Locations of Internal Server Components” on page 30 ■...
  • Page 36 Advanced ECC corrects up to 4 bits in error on nibble boundaries, if they are all in the same DRAM. If a DRAM fails, the DIMM continues to function. Refer to the Oracle Integrated Lights Out Manager 3.0 User’s Guide for information about how to access the error log.
  • Page 37 DIMM Slot Designations See also: “Removing and Installing DIMMs (CRU)” on page 33 ■ “DIMM Slot Designations” on page 37 ■ “DIMM Population Rules” on page 38 ■ DIMM Slot Designations The following illustrations show the DIMM slot designations for CPU 0 and CPU 1 respectively.
  • Page 38: Dimm Population Rules

    1 x DIMM per channel = 1066 MHz (if using 1066 MHz DIMMs) These are the acceptable DIMM configurations. DIMM SLOT Location DIMM CPU 0 CPU 1 configuration not allowed D5, D3 Sun Fire X2270 M2 Server Service Manual • January, 2012, –12...
  • Page 39 DIMM Population Rules DIMM SLOT Location DIMM CPU 0 CPU 1 D5, D3, D1 D5, D3 D5, D3, D1, D4 D5, D3 D5, D3 D5, D3, D1, D4, D2 D5, D3, D1 D5, D3 D5, D3, D1, D4, D2, D0 D5, D3, D1 D5, D3, D1 configuration not allowed...
  • Page 40 “How to Install the Air Duct”on page Prepare the server for operation. See “How to Prepare for Operation”on page “How to Install a PCIe Card” on page 41 ■ See Also Sun Fire X2270 M2 Server Service Manual • January, 2012, –12...
  • Page 41 Removing and Installing a PCIe Card (CRU) “Removing and Installing a PCIe Card (CRU)” on page 40 ■ ▼ How to Install a PCIe Card See: Before You Begin “Locations of Internal Server Components” on page Prepare the server for service. See “How to Prepare for Service”on page Remove the air duct.
  • Page 42 How to Install the PCIe Riser See: Before You Begin “Locations of Internal Server Components” on page Prepare the server for service. See “How to Prepare for Service”on page Sun Fire X2270 M2 Server Service Manual • January, 2012, –12...
  • Page 43 Removing and Installing the PCIe Riser (CRU) Remove the air duct. See “How to Remove the Air Duct”on page Align the riser card in the PCIe slot on the motherboard. To install the riser card, gently push the card downward into the slot. If you are installing a PCIe card, see “How to Install a PCIe Card”on page Install the air duct.
  • Page 44 “How to Prepare for Operation”on page “How to Install the PCIe Riser” on page 42 See Also ■ “Removing and Installing a PCIe Card (CRU)” on page 40 ■ Sun Fire X2270 M2 Server Service Manual • January, 2012, –12...
  • Page 45 ■ ▼ How to Remove the Power Supply See: Before You Begin “Sun Fire X2270 M2 Server Internal Cabling” on page 61 ■ “Locations of Internal Server Components” on page 30 ■ Prepare the server for service. See “How to Prepare for Service”on page Remove the air duct.
  • Page 46 Loosen the captive screw that secures the power supply to the chassis (3). Lift the power supply out of the chassis (4). “How to Install the Power Supply” on page 47 Next Steps Sun Fire X2270 M2 Server Service Manual • January, 2012, –12...
  • Page 47 How to Install the Power Supply See: Before You Begin “How to Remove the Power Supply” on page ■ “Sun Fire X2270 M2 Server Internal Cabling” on page ■ “Locations of Internal Server Components” on page 30 ■ Reference the following illustration for this procedure.
  • Page 48 Thermal over-temperature potential. Do not operate the server without all drive slots Caution – populated with either a drive of a filler. If your server contains a filler panel, remove the filler panel before installing a hard drive. Sun Fire X2270 M2 Server Service Manual • January, 2012, –12...
  • Page 49 Removing and Installing a Hard Drive Filler and Hard Drive Assembly (CRU) For the drive slot in which you want to install a removable hard drive, rotate the release lever on the front of the filler to disengage the hook and extend the handle. Use the handle to pull the filler out of the slot.
  • Page 50 On the drive you want to remove, push the release button to open the latch and extend the latch to its fully-open position. The latch is not an ejector. Do not bend it too far to the right. Doing so may damage the Note – latch. Sun Fire X2270 M2 Server Service Manual • January, 2012, –12...
  • Page 51 Removing and Installing a Hard Drive Filler and Hard Drive Assembly (CRU) To remove the drive, us the handle to pull the drive out of the drive slot. If you are replacing the drive, go to “How to Install a Removable Hard Drive Assembly”on page If you are not replacing the drive, install a filler panel.
  • Page 52 Removing and Installing the Air Duct (CRU) This section contains the following topics: “How to Remove the Air Duct” on page 53 ■ “How to Install the Air Duct” on page 53 ■ Sun Fire X2270 M2 Server Service Manual • January, 2012, –12...
  • Page 53 Removing and Installing the Air Duct (CRU) ▼ How to Remove the Air Duct Thermal over-temperature potential. The air duct is an important server-cooling Caution – component. Do not operate the server without the air duct installed . See: Before You Begin “Locations of Internal Server Components”...
  • Page 54 How to Remove a Blower Module See: Before You Begin “Sun Fire X2270 M2 Server Internal Cabling” on page 61 ■ “Locations of Internal Server Components” on page 30 ■ Sun Fire X2270 M2 Server Service Manual • January, 2012, –12...
  • Page 55 “How to Install a Blower Module” on page 55 See Also ■ ▼ How to Install a Blower Module See: Before You Begin “Locations of Internal Server Components” on page 30 ■ “Sun Fire X2270 M2 Server Internal Cabling” on page 61 ■...
  • Page 56 Oracle Service Technician. This section contains the following topics: “How to Remove the Hard Drive Backplane” on page 57 ■ “How to Install the Hard Drive Backplane” on page 58 ■ Sun Fire X2270 M2 Server Service Manual • January, 2012, –12...
  • Page 57 See: Before You Begin “Locations of Internal Server Components” on page 30 ■ “Sun Fire X2270 M2 Server Internal Cabling” on page 61 ■ Prepare the server for service. See “How to Prepare for Service”on page Remove all hard drives. See “How To Remove a Removable Hard Drive Assembly”on page...
  • Page 58 “How to Install the Air Duct”on page Prepare the server for operation. See “How to Prepare for Operation”on page “How to Remove the Hard Drive Backplane” on page 57 See Also Sun Fire X2270 M2 Server Service Manual • January, 2012, –12...
  • Page 59 Removing and Installing the SP Module (CRU) Removing and Installing the SP Module (CRU) This section contains the following topics: “How to Remove the SP Module” on page 59 ■ “How to Install the SP Module” on page 60 ■ ▼...
  • Page 60 Gently push down on the SP module to engage the connector on the module with the connector on the motherboard. Tighten the captive screw to secure the SP module. Sun Fire X2270 M2 Server Service Manual • January, 2012, –12...
  • Page 61 Sun Fire X2270 M2 Server Internal Cabling Install the air duct. See “How to Install the Air Duct”on page Prepare the server for operation. See “How to Prepare for Operation”on page “How to Remove the SP Module” on page 59...
  • Page 62 Match the color-coded SATA cables with their associated backplane connection and connect the SATA cable connectors to the backplane. Secure the SATA cable to the tie-down points. Check the routing of all cables for obstructions. Sun Fire X2270 M2 Server Service Manual • January, 2012, –12...
  • Page 63 ▼ How to Install the Front I/O Cable See: Before You Begin “Sun Fire X2270 M2 Server Internal Cabling” on page 61 ■ “How to Remove the Front I/O Cable” on page 63 ■ Connect the two I/O cable connections to the motherboard.
  • Page 64 “How to Remove the Front I/O Cable” on page 63 See Also Replacing the Front I/O Board (FRU) The front I/O board is a field-replaceable unit. It must be replaced by a certified Oracle Note – Service Technician. This section contains the following topics: “How to Remove the I/O Board”...
  • Page 65 Replacing the Front I/O Board (FRU) Remove the three screws securing the I/O board to the hard drive (HD) cage. To remove the I/O board, lift the board high enough to clear the standoffs and then slide the board toward the rear of the server until the connectors are clear. Remove the cable connected to the I/O board.
  • Page 66 “How to Install the Air Duct”on page Prepare the server for operation. See “How to Prepare for Operation”on page “How to Remove the I/O Board” on page 64 See Also Sun Fire X2270 M2 Server Service Manual • January, 2012, –12...
  • Page 67 Note – certified Oracle Service Technician. The following procedure describes how to replace a CPU. The Sun Fire X2270 M2 Server supports both single-CPU and dual-CPU configurations. The procedures in this section include removal and installation procedures, as well as a procedure for adding a second CPU to a single-CPU configuration.
  • Page 68 “Locations of Internal Server Components” on page 30 ■ “How to Remove a CPU and Heatsink” on page 67 ■ Ensure that the socket release lever and the CPU cover are in their fully-open position. Sun Fire X2270 M2 Server Service Manual • January, 2012, –12...
  • Page 69 Removing, Installing, and Adding a CPU and Heatsink (FRU) Unpack the new CPU. ESD component damage. The CPU is highly sensitive to static electricity. Observe ESD Caution – precautions before handling the CPU. See “Antistatic Procedures and Precautions” on page Align the small triangle on the upper-left corner of the CPU with the alignment triangle on the socket.
  • Page 70 “Locations of Internal Server Components” on page 30 Prepare the server for service. See “How to Prepare for Service”on page Remove the air duct. See “How to Remove the Air Duct”on page Sun Fire X2270 M2 Server Service Manual • January, 2012, –12...
  • Page 71 Removing, Installing, and Adding a CPU and Heatsink (FRU) To unlock the CPU cover, gently push downward on the CPU retaining lever and move it slightly away from the CPU. This action releases the lever from the retaining clip. Lift the lever to its fully open and upright position. Lift the CPU cover to its fully open position.
  • Page 72 Alternately turn each screw one full turn until all the screws are tightened fully. Install the air duct. See “How to Install the Air Duct”on page Prepare the server for operation. Sun Fire X2270 M2 Server Service Manual • January, 2012, –12...
  • Page 73 “How to Remove a DIMM”on page Disconnect all cables attached to the motherboard and keep them clear of the motherboard. “Sun Fire X2270 M2 Server Internal Cabling”on page If necessary label the cables. Remove the CPU and heatsink assemblies. See “How to Remove a CPU and Heatsink”on...
  • Page 74 Position the new motherboard so that the ports on the motherboard face the rear of the server. Align the motherboard in the chassis so that the screw holes align with the threaded standoffs on the chassis. Sun Fire X2270 M2 Server Service Manual • January, 2012, –12...
  • Page 75 To secure the motherboard, fully tighten the eight screws. Install the CPU and heatsink. See “How to Install a CPU and Heatsink”on page Connect the cables to the motherboard. See “Sun Fire X2270 M2 Server Internal Cabling”on page Install the DIMMs. See “How to Install a DIMM”on page Install the PCIe riser.
  • Page 76 MAC address of the new motherboard. Backup the MB FRUID information. See “How to Backup Motherboard FRUID Information”on page Prepare the server for operation. See “How to Prepare for Operation”on page Sun Fire X2270 M2 Server Service Manual • January, 2012, –12...
  • Page 77: Sun Fire X2270 M2 Server Service Procedures And Information

    The Tools and Drivers CD contains several software applications and utilities for use with your Sun Fire X2270 M2 Server. The Tools and Drivers CD is available online as an ISO image, which you can download and mount as a virtual CD or use to burn a physical CD. Use the following table to locate the documents that contain a description and explanation of the applications and utilities that are on the Sun Fire X2270 M2 Server Tools and Drivers CD.
  • Page 78: How To Backup Motherboard Fruid Information

    Front Panel System Status LEDs The Sun Fire X2270 M2 Server has three system status LEDs on both the front and rear panels of the server. The LEDs are the Power LED, the Service Action Required LED, and the Locate LED.
  • Page 79: Hard Drive Leds

    Hard Drive LEDs LED Name Color Activity Server Locate LED White Use to identify a server in a rack. Activate locally by pressing the Locate button or activate remotely using the ILOM. ■ Off: Normal ■ On: Blinking Server Service Action Amber The SP monitors the health of the system and activates the Service Required LED...
  • Page 80 3 Activity Green ■ Blink: Disk activity, standby ■ Off: Power is off or no disk activity Rear Panel System Status LEDs The rear panel LEDs: Sun Fire X2270 M2 Server Service Manual • January, 2012, –12...
  • Page 81 Rear Panel System Status LEDs Name Color Activity NET MGT 10/100 Green and Table 1 Ethernet LED Amber 2,3,4 GigabitEthernet LED Green and Table 2 Amber Server Locate LED White Use to identify a server in a rack. Activate locally by pressing the Locate button or activate remotely using the ILOM.
  • Page 82: Bios Booting And Setup Considerations

    The options or fields that you can configure on a menu appear in color. For instructions on how to navigate and change settings in the BIOS Setup utility, refer to the online instructions provided on the menu. Sun Fire X2270 M2 Server Service Manual • January, 2012, –12...
  • Page 83 Default BIOS Power-On Self Test (POST) Events BIOS-Supported POST Hot Keys Key or Key Sequence Function Availability Enter BIOS Setup utility During POST Toggle the logo screen to POST screen While Log screen appears Bypass memory test During memory count Continue from nonfatal BIOS error During POST when prompt message is shown...
  • Page 84 Each power-on-self-test (POST) diagnostic is a low-level test designed to pinpoint faults in a specific hardware component. If a POST diagnostic discloses an F1 or F2 error, it typically reports the following information about the error: Sun Fire X2270 M2 Server Service Manual • January, 2012, –12...
  • Page 85 BIOS POST F1 and F2 Errors Type of error detected ■ When or where the error occurred ■ The following table lists some of the F1 and F2 error messages that could appear during the POST diagnostics and instructions for how to possibly resolve the error reported. BIOS POST Error Message Error Type Resolution...
  • Page 86 CMOS Checksum Bad ■ Press F2 to enter BIOS Setup utility to load ■ CMOS Date/Time Not Set system defaults. ■ Check the SP event log in ILOM for more details. Sun Fire X2270 M2 Server Service Manual • January, 2012, –12...
  • Page 87 BIOS POST Memory Testing Sequence BIOS POST Error Message Error Type Resolution Password check failed Password ■ Press F1 to continue. check error ■ Check the SP event log in ILOM for more details. This type of error indicates a password Note –...
  • Page 88: Service Procedures

    Install the server cover. See “How to Install the Server Cover”on page Prepare the server for operation. See “How to Prepare for Operation”on page Reinsert the AC power cord. Sun Fire X2270 M2 Server Service Manual • January, 2012, –12...
  • Page 89 Updating BIOS and SP Firmware Updating BIOS and SP Firmware If you want to use the Sun Installation Assistant to update the BIOS and SP firmware, Note – refer to “System BIOS and ILOM Upgrade” in the Sun Installation Assistant for Windows and Linux User’s Guide.
  • Page 90: Web Interface

    Ensure that the OS on the platform is shut down. Log in to the SP ILOM web interface with Administrator privileges. Select Maintenance --> Firmware Upgrade tabs. The Firmware Upgrade page appears. Sun Fire X2270 M2 Server Service Manual • January, 2012, –12...
  • Page 91 Recovering the SP and BIOS Firmware Click Enter Upgrade Mode. A dialog box appears asking you to confirm to enter Upgrade mode. Click OK to enter Upgrade mode or Cancel to exit the process. ILOM stops its normal operation and prepares for a flash upgrade. Enter the path to the new ILOM flash image file in the Select Image File to Upload field or click Browse to locate and select the firmware update file.
  • Page 92 CD into the CD/DVD drive and the bootable USB flash drive into an available USB port. Copy the contents of the /firmware/USBFlash/SPREcovery/* directory from the Tools and Drivers CD to a bootable MS-DOS USB flash drive. Sun Fire X2270 M2 Server Service Manual • January, 2012, –12...
  • Page 93: Ordering Components

    ILOM and BIOS settings. Ordering Components You can order additional components and replacement parts for the Sun Fire X2270 M2 Server. Contact your local Oracle sales representative for more information. For the most up-to-date component information, refer to the components list on the following web site: http://sunsolve.sun.com/handbook_pub/validateUser.do?target=Systems/index...
  • Page 95: Sun Fire X2270 M2 Server Specifications

    Sun Fire X2270 M2 Server Specifications The section contains the following topics: “Physical Specifications” on page 95 ■ “Power Specifications” on page 95 ■ “Environmental Specifications” on page 96 ■ “Acoustic Noise Specifications” on page 96 ■ Physical Specifications Specification...
  • Page 96: Environmental Specifications

    Altitude Operating 0 to 10,000 feet 0 to 3,048 m Acoustic Noise Specifications 23° C Idle 23° C Operating 7.0 B 7.5 B LpAm 60 dba 70 dba Sun Fire X2270 M2 Server Service Manual • January, 2012, –12...
  • Page 97: Index

    Index cable locations, internal, 61 acoustic specifications, server, 96 CD/DVD drive, recovering SP and BIOS firmware, 92 adding a CPU to the server, 70–72 CLI (command-line interface), updating BIOS and air duct ILOM firmware, 89–90 installing, 53–54 CMOS internal location, 30 battery (type CR2032), 31 removing, 53 clearing, 88...
  • Page 98 Integrate Lights Out Manager, See ILOM installing, 58 Integrated Lights Out Manager, See ILOM removing, 57 internal cable, locations, 61 hard drive filler internal components, list, 11 installing, 49–50 Sun Fire X2270 M2 Server Service Manual • January, 2012, –12...
  • Page 99 Index POST (Continued) memory testing sequence, 87 LEDs power modes, 27 10/100/1000 Ethernet, 82 power-on self test, See POST 10/100 Ethernet, 81–82 power-on self test (POST), 83 front panel system status, 78 power specifications, server, 95 hard drive, 79 power supply rear panel, 80 installing, 47–48 internal location, 30...
  • Page 100 14 tools, list of required, 20 Tools and Drivers CD overview, 14 using, 77 updating firmware CLI, 89–90 Web interface, 90–91 USB drive, recovering SP and BIOS firmware, 92–93 Sun Fire X2270 M2 Server Service Manual • January, 2012, –12...
