Remove the FIM

Access this component directly from the front of the server. Remove the FIM when you need to
replace it.
For component serviceability, locations, and designations, see
■
Before You Begin
Designations" on page
Prepare the server for cold service. See
1.
Service" on page
2. Remove the topmost power supply (PSU 3). See

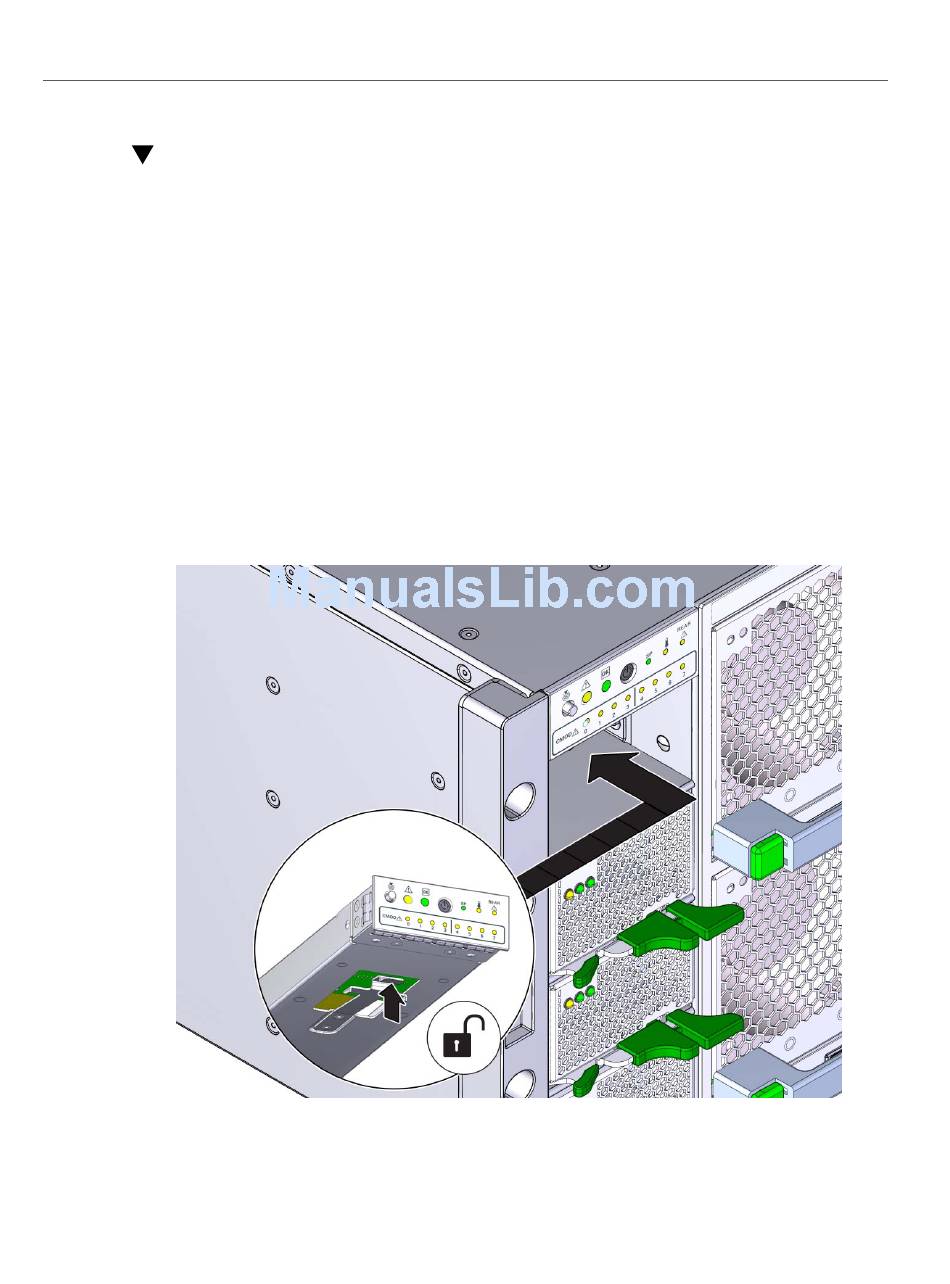

3. To unlock the FIM, reach into the vacant power supply slot, locate the release
latch on the underside of the FIM, and push the latch upward.
79.
98.
"Component Locations, and
"Prepare the Server for Cold
"Remove a PSU" on page
Servicing Components
Remove the FIM
126.
133
