a.
To unlock the SMOD handles, squeeze together the release latches on the
end of both handles.
To open, rotate both handles downward to their fully-open position.
b.
2.

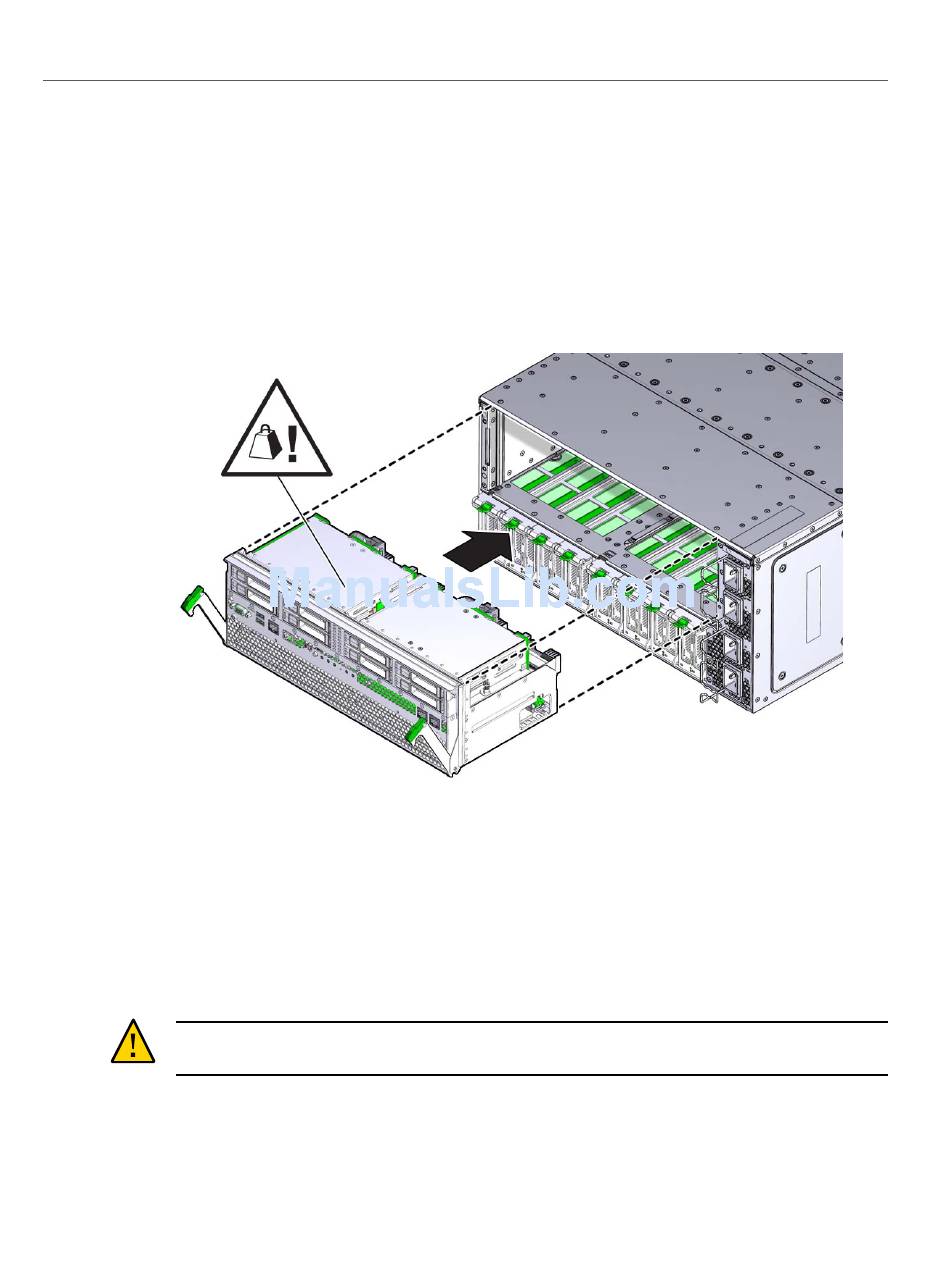

Orient the SMOD with the handles facing away from the server and the
connectors facing toward the open slot in the server.
Align the SMOD in the slot.
3.
4.
Slide the SMOD into the slot until it stops.
This leaves the SMOD protruding slightly from the back of the server. Do not attempt push the
SMOD inward beyond this point.
5.
To install the SMOD, simultaneously rotate both handles upward until they lock
into place.
Pinch point. When operating the lever, keep your fingers clear of the back side and
Caution -
hinged end of the lever.
Install the SMOD
Servicing Components
201
