Install a PCIe Card
7.
Orient the PCIe card with the edge (or bus) connector facing downward and the
IO (or cable connector) facing to the left.
8.

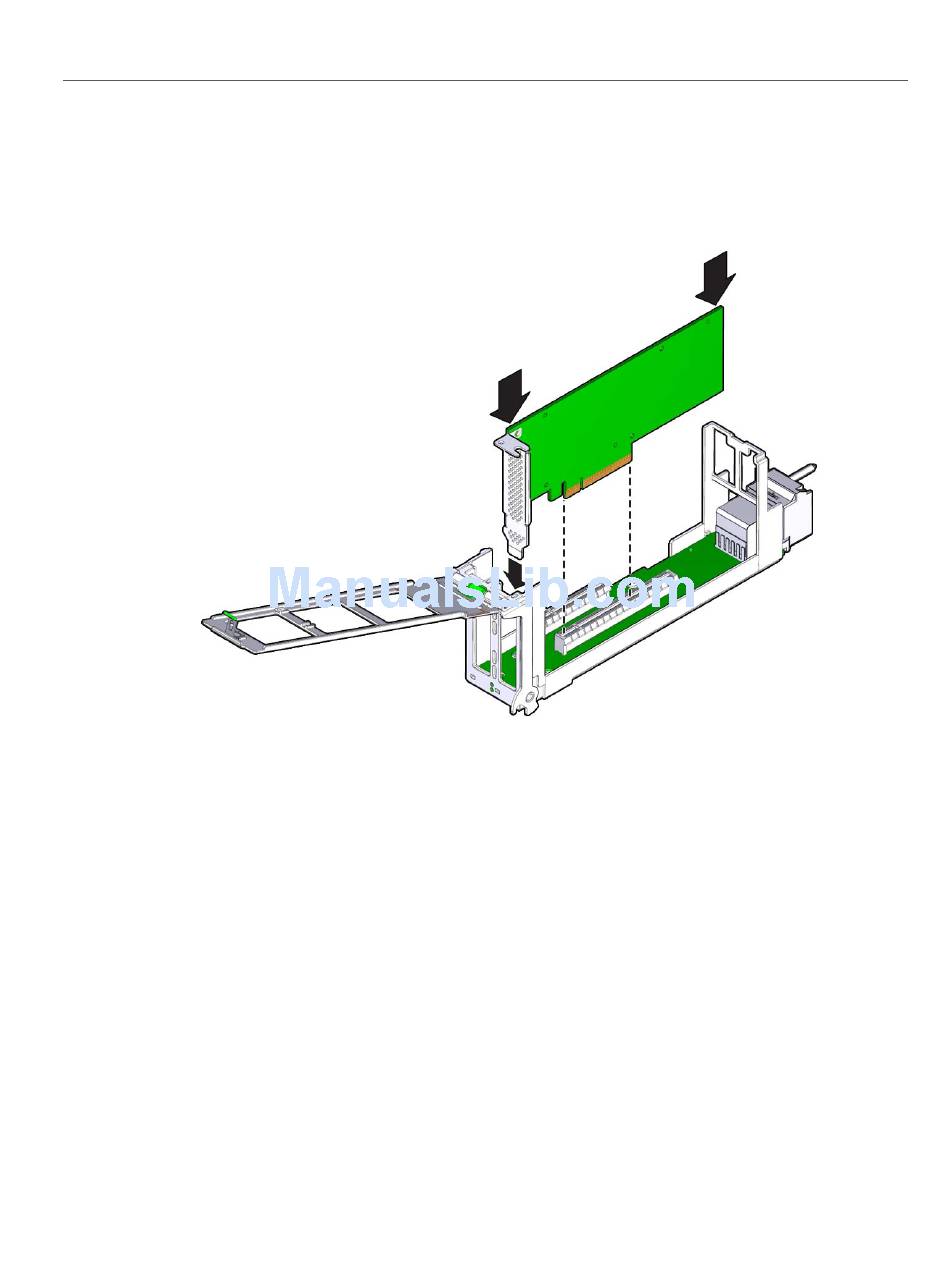

To install the card, align the edge connector with the slot in the DPCC and push
the card downward into the slot.
9.
To close the top of the DPCC, rotate it to the right ensuring the clip on the edge
of the top is secured over the unhinged edge of the DPCC.
192
Oracle Server X5-8 Service Manual • December 2015
