Chassis Cooling Subsystem

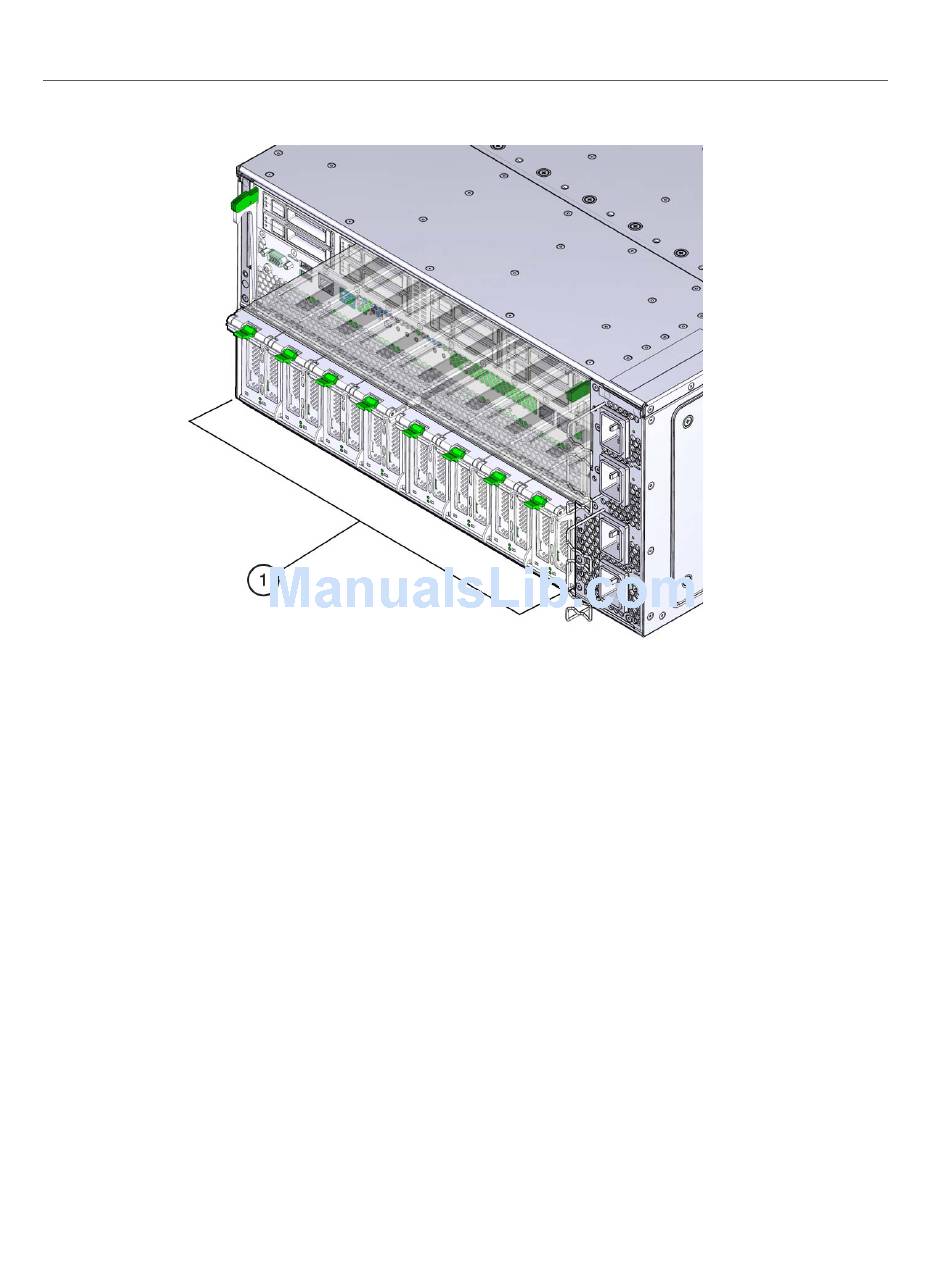

System cooling air flows from front to back. Primary cooling is provided by eight redundant
front-side accessible 100 watt hot-swappable cooling fan modules. To maintain the integrity of
the cooling system, ensure that:
All CMOD processors have a heat sink.
■
Each drive bay contains a storage device or a drive slot filler.
■
Every DPCC is installed regardless of whether it contains a card or not.
■
Both fan frames are populated with fan modules.
■
