Replace the Midplane Assembly
4.
Remove the eight screws that secure the server to the rack at the front of the
server.
Use a lift to remove the server from the rack.
5.

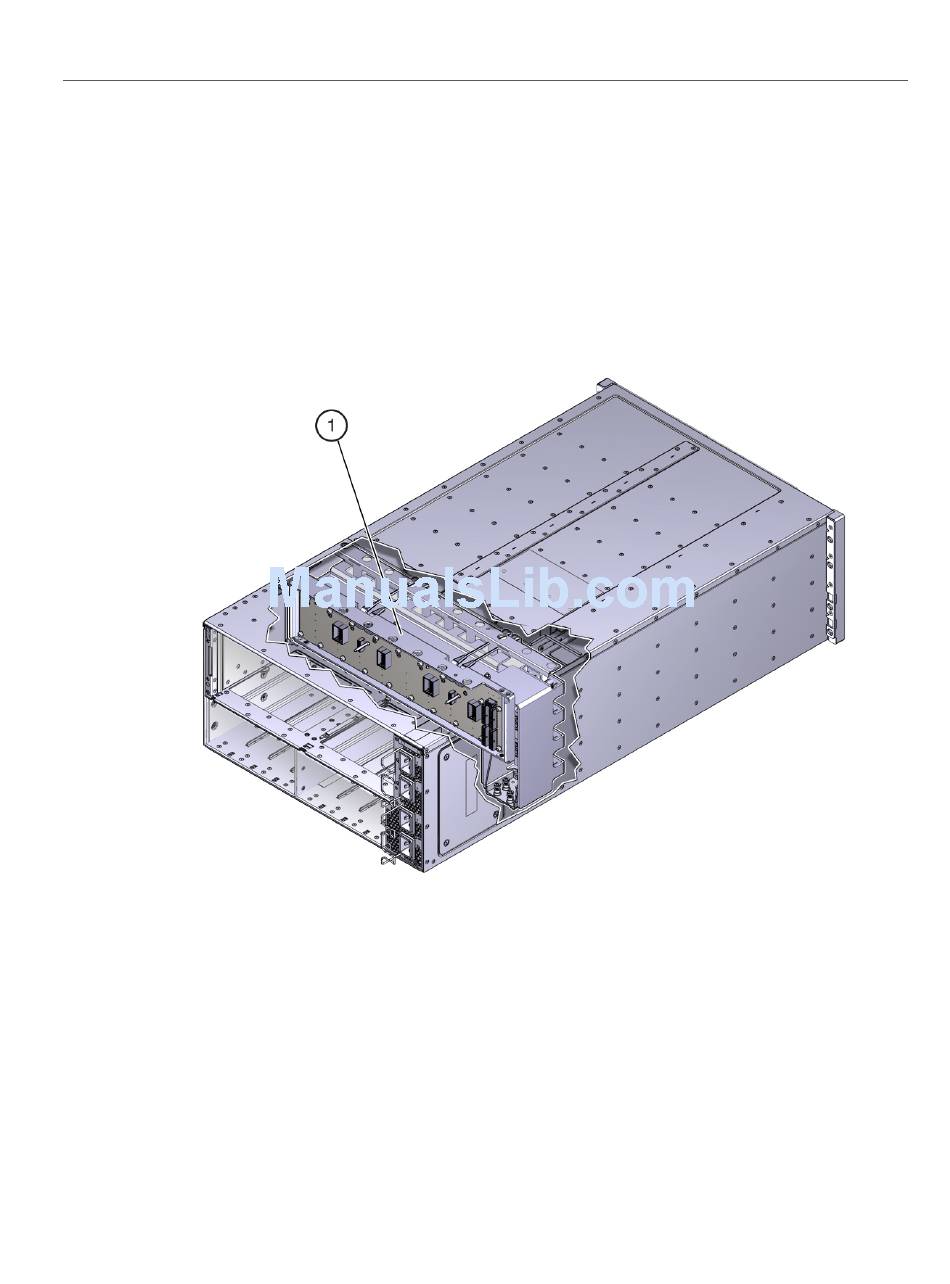

The midplane assembly is located inside the server. In the following illustration, call out 1
shows the location of the midplane assembly.
224
Oracle Server X5-8 Service Manual • December 2015
