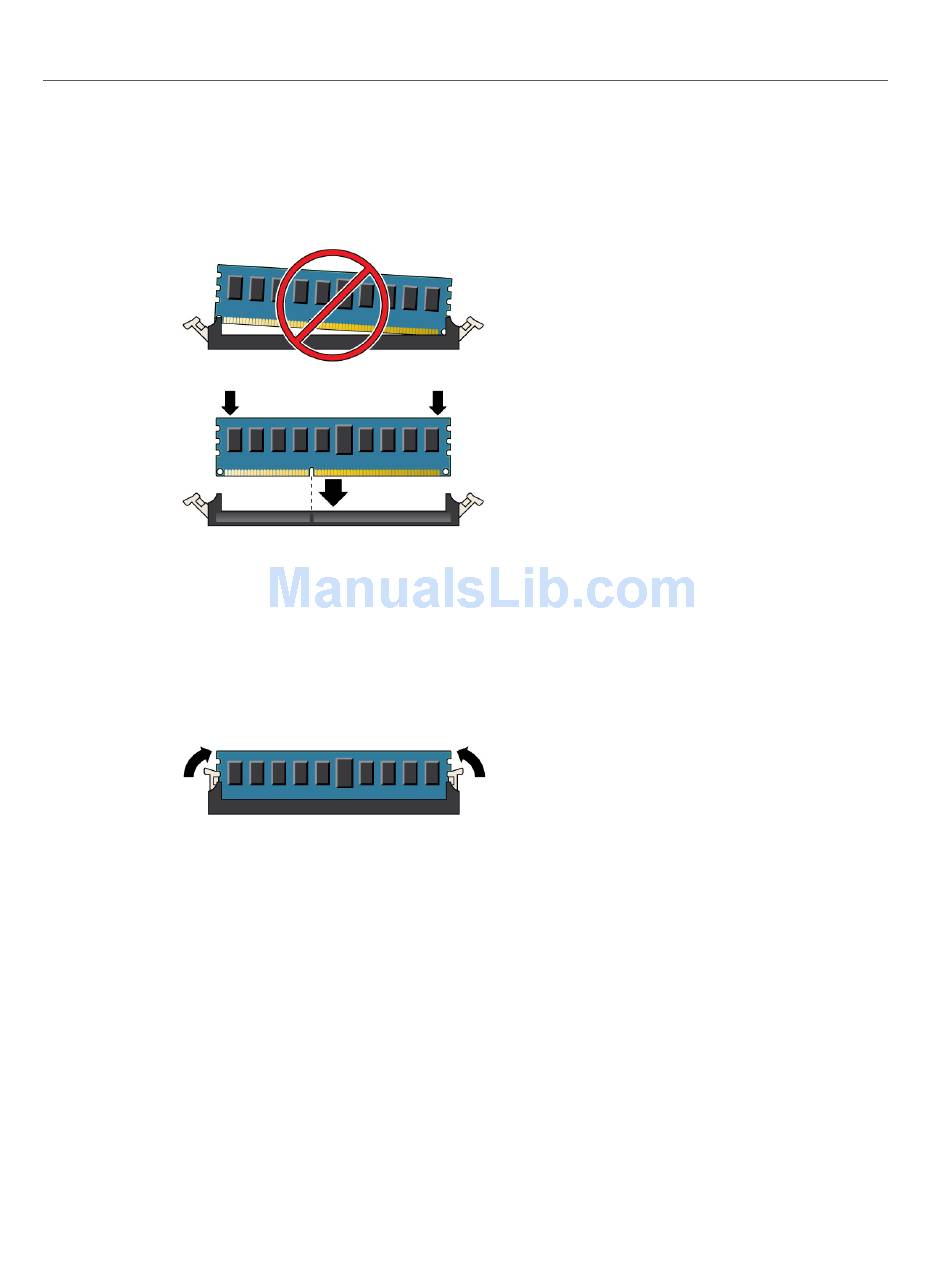

To install the DIMM in the slot, simultaneously press down on both edges of the
DIMM, so the DIMM enters the slot evenly.
This action forces the DIMM into the slot and causes the two slot levers to rise and lock the
DIMM in the slot.
11.
Verify that the DIMM sits evenly in the slot and is locked.
Both levers should be in their fully closed and vertical position. In this position, the levers lock
the DIMM in the slot.
To align the CMOD cover, position it over the CMOD with the lip end of the cover
12.
toward the front of the CMOD.
13.
Set the cover on the CMOD so that the edges of the cover encapsulate the edges
of the CMOD.
When correctly seated, the cover extends slightly over the back end of the CMOD.
Replace a Failed DIMM
