Component Locations, and Designations
Call Out
0
1
2
3

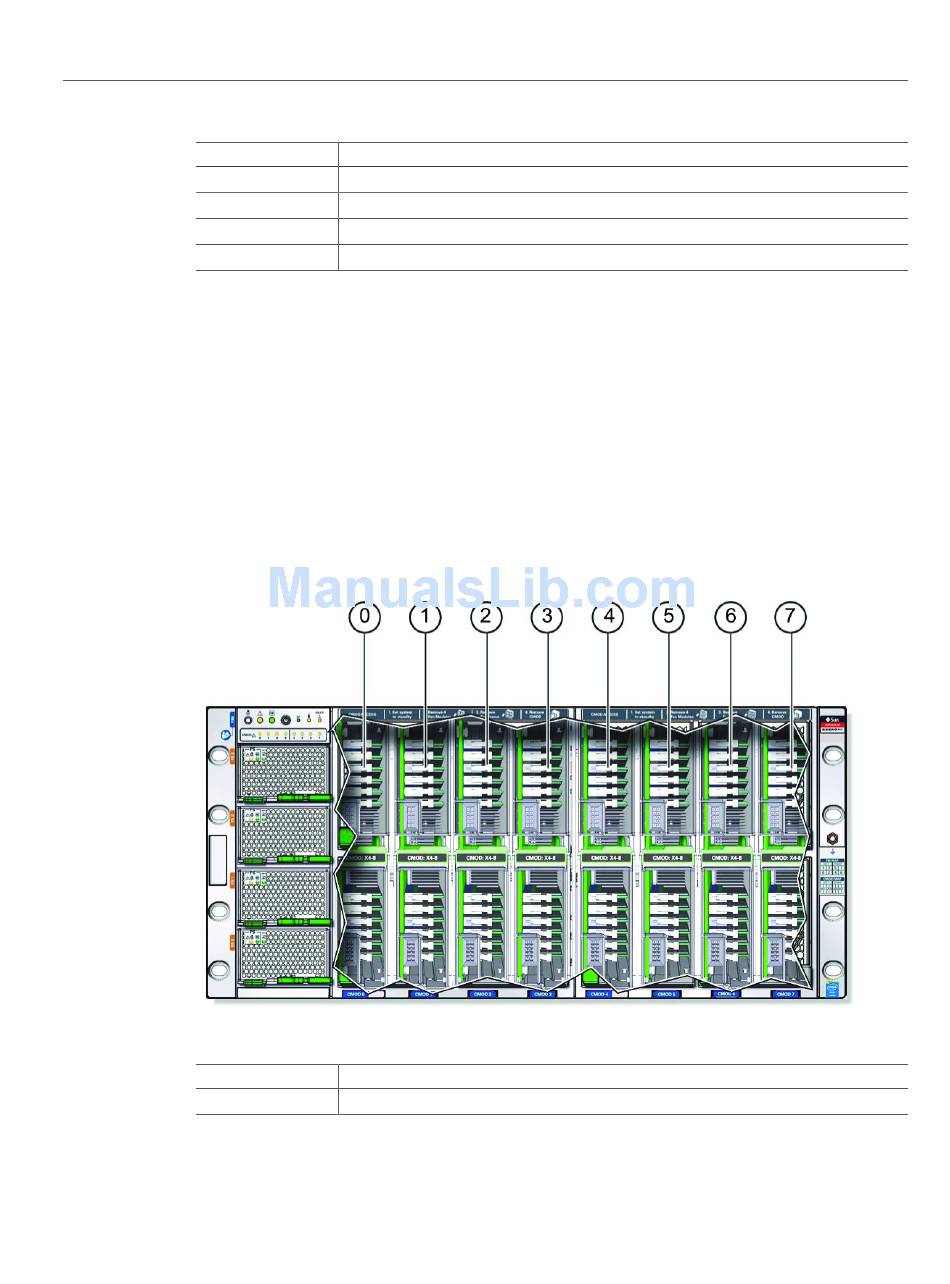

CMOD Slot Designations
CPU module slots are arranged in a single row and are designated from left to right as, CMOD
0–CMOD 7. The CMOD slots are accessible from the front of the server by removing the FMs
and frames.
The server is available with four CMODs or eight CMODs. Four-CMOD systems have CMODs
in CMOD 0–CMOD 3, and filler panels in CMOD 4–CMOD 7.
For more information, see
Call Out
0
84 Oracle Server X5-8 Service Manual • December 2015
Description
PSU 0
PSU 1
PSU 2
PSU 3
"CPU Module (CMOD) Overview" on page
Description
CMOD 0
23.
