Call Out Description
1 CMOD 1
2 CMOD 2
3 CMOD 3
4 CMOD 4
5 CMOD 5
6 CMOD 6
7 CMOD 7
Memory Slot Designations

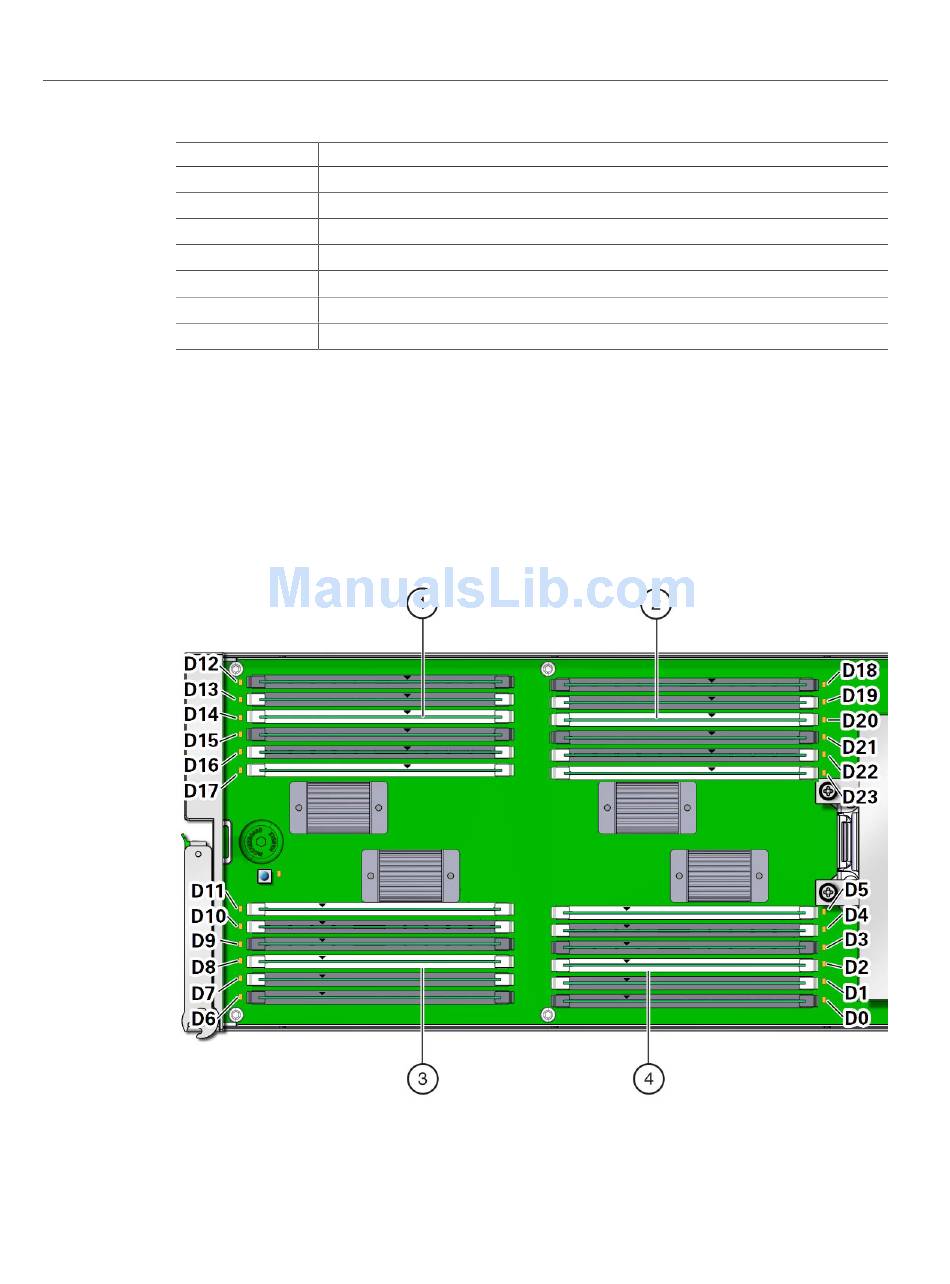

Each CMOD contains 24 DIMM slots arranged in four groups of six slots. The following
illustration shows the groups and their slot designations.
Component Locations, and Designations
