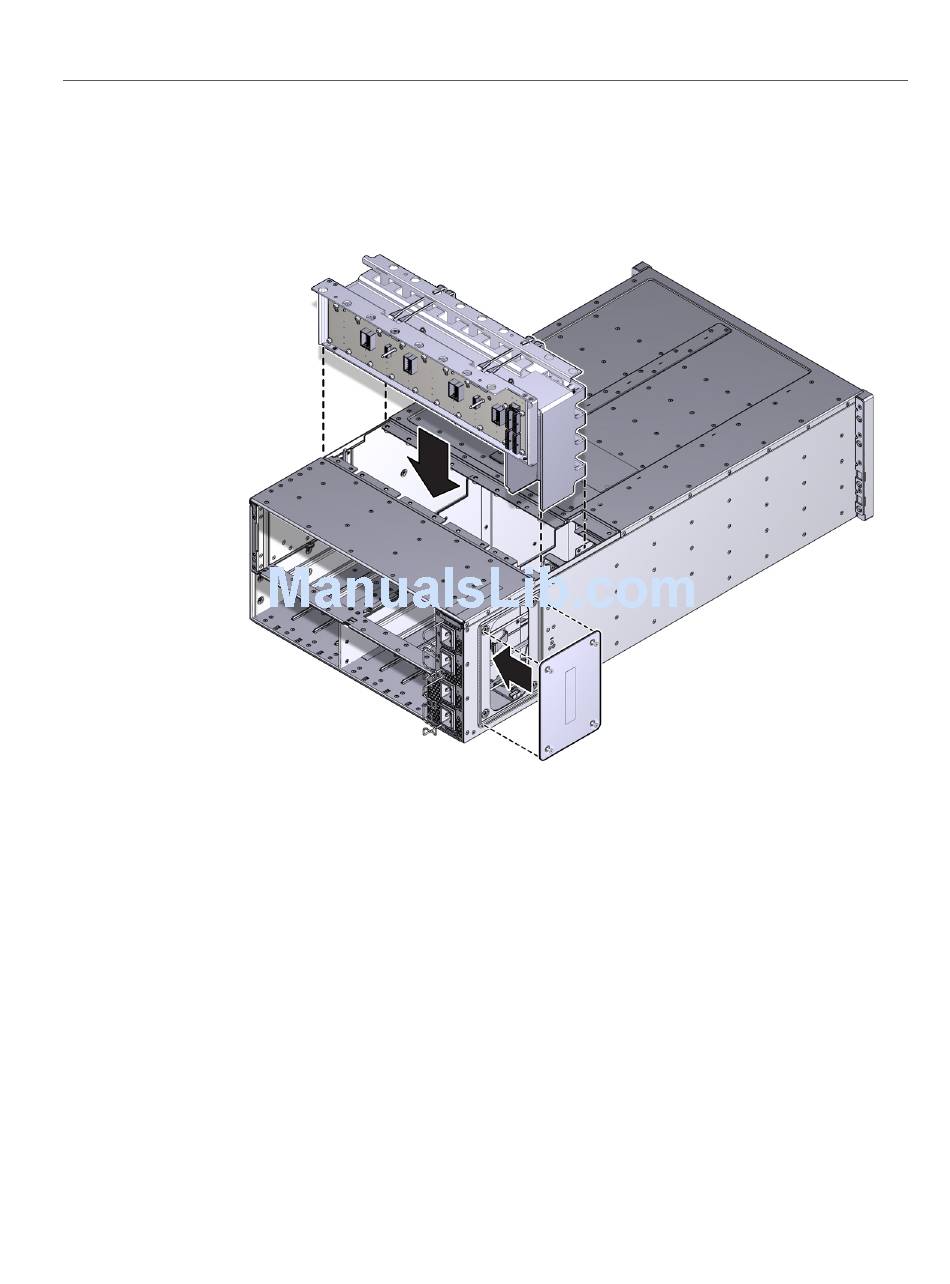

Replace the Midplane Assembly
Take care not to damage the cables and connectors when lowering the midplane assembly into
the server.
14.
Connect the five cables to the connectors on the back of the midplane assembly.
Ensure that the connectors are positioned correctly, so the key (protrusion) on the side of the
connector is aligned with the notch in the connector on the midplane assembly. For best access
230
Oracle Server X5-8 Service Manual • December 2015
