Remove a Fan Frame

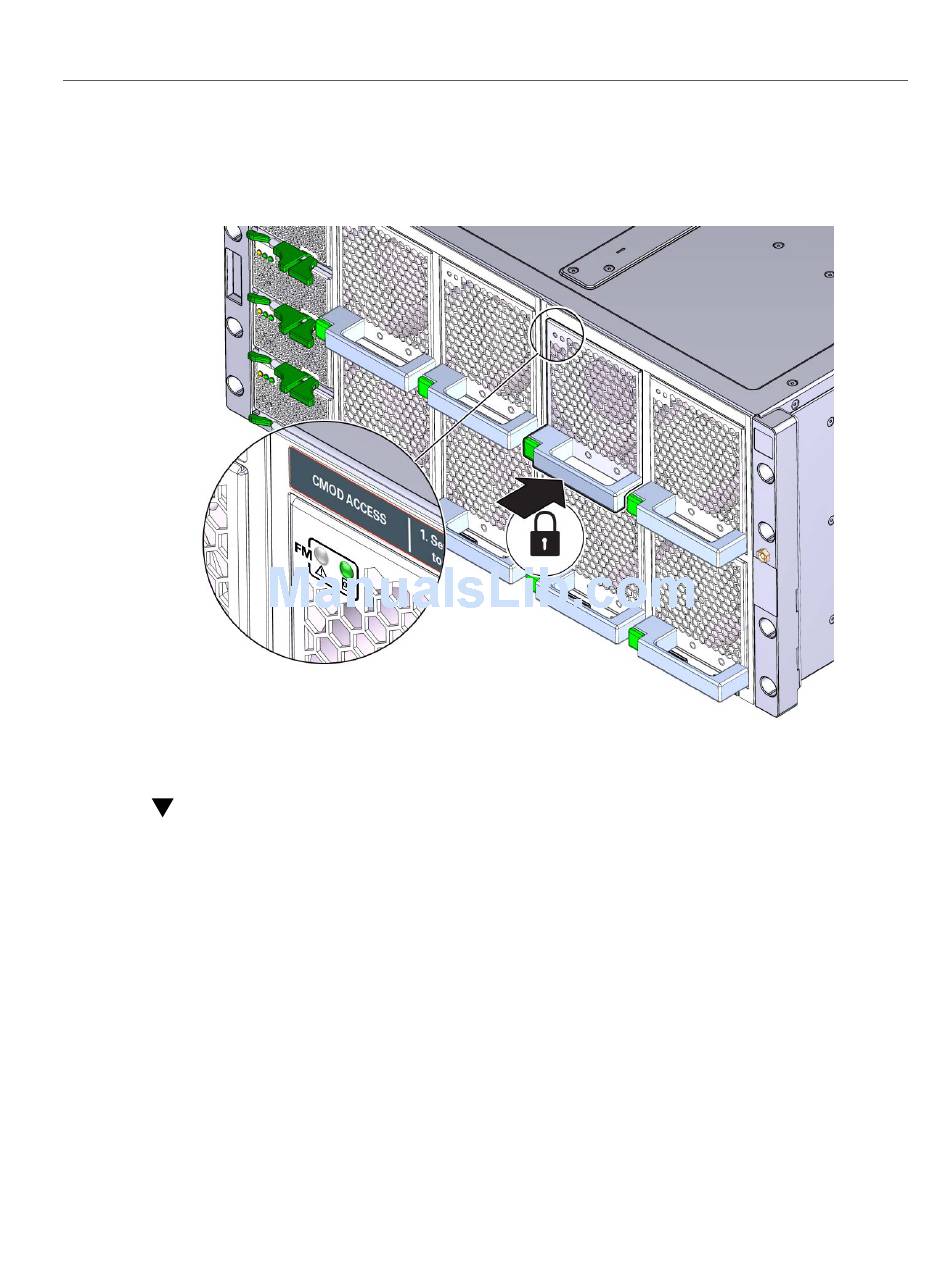

3. Verify that the green Fan OK indicator on the fan module lights and is on steady.
Remove a Fan Frame
The server has two fan frames which are accessible from the front of the server. Each frame
contains four fans. You need to remove the fan frame to access the CMODs behind it.
For component serviceability, locations, and designations, see
Before You Begin
Designations" on page
1. Prepare the server for cold or warm service. See
Service" on page 98
2. Remove the fans associated with the fan frame.
122 Oracle Server X5-8 Service Manual • December 2015
79.
or "Prepare the Server for Warm Service" on page
"Component Locations, and
"Prepare the Server for Cold
96.
