Back Indicator Panel - Oracle X5-8 Service Manual

Call Out Description
1 Ready to Remove indicator (blue)
2 Service Action Required indicator
(amber)
3 OK indicator (green)

Back Indicator Panel

The back indicator panel located on the SMOD allows you manage the server and determine its
status. It includes some indicators and buttons not found on the front indicator module (FIM),
including reset switches and indicators for SMOD components.

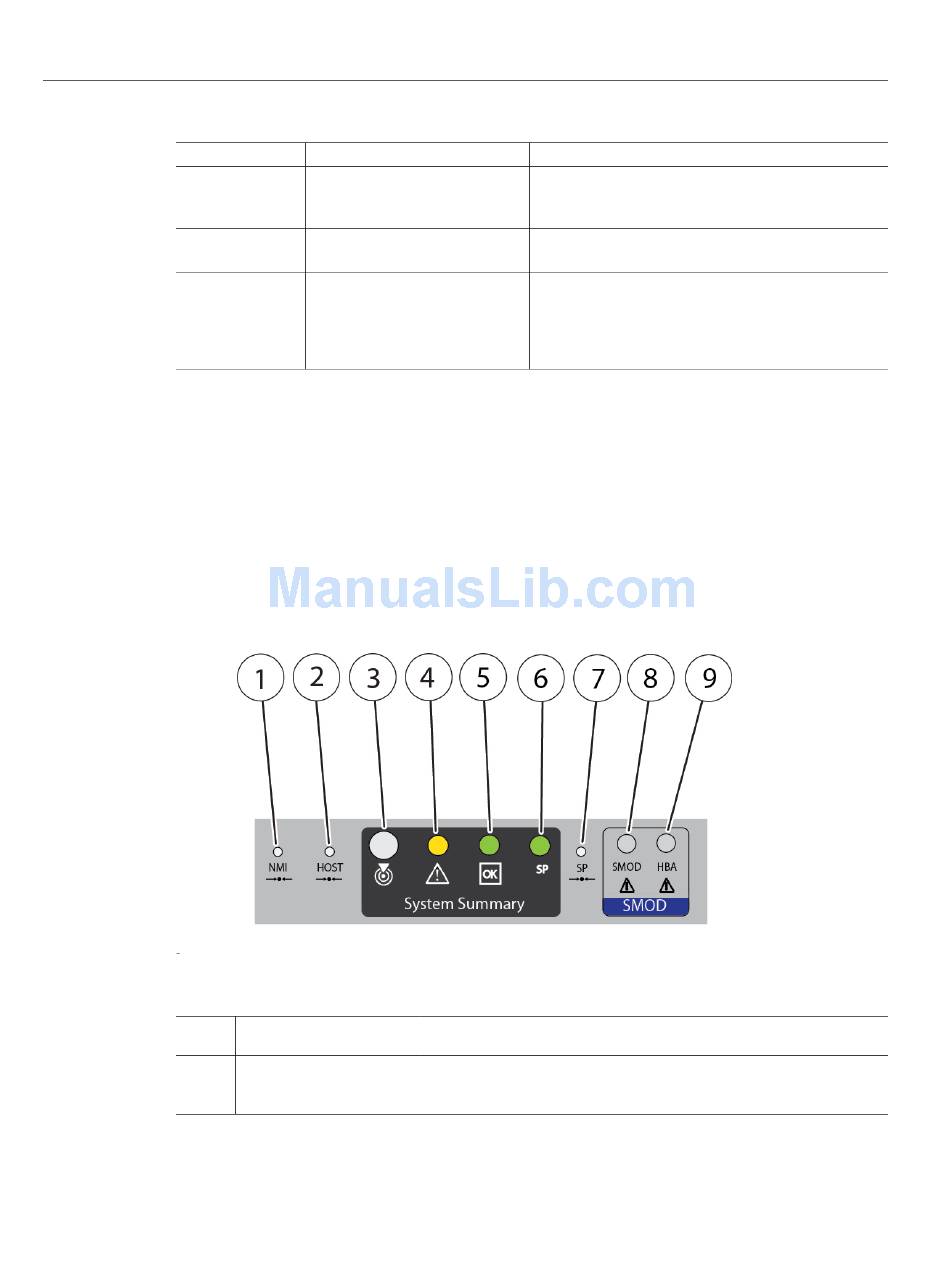

The following figure shows the back inidcator panel:
Call Description
Out
1 Non-Maskable Interrupt
(NMI) button
Function
Lights when the storage drive is ready to be removed
from the server in response to an action initiated from the
server OS.
Lights steady on when the drive is in a fault state.
Lights when the storage drive is functioning normally and
blinks to show activity.
The storage drive indicators blink at various rates
Note -
depending on the activity. For more information on blink
rates, see "Indicator Blink Rates" on page
Details
Service personnel only. Do not press.
This button requires a stylus.
Server Subsystems
62.
Server and Components Overview 39
