Component Designations - Oracle Sun Server X4-4 Service Manual

Call Out Description
8 Memory riser card

Component Designations

This section shows the slot naming designations for internal and external slots:
"Fan Module Slot Designations" on page 69
■
"CPUs and Memory Riser Card Slots Designations" on page 70
■
"DIMM Slot Designations" on page 71
■
"Power Supply Designations" on page 72
■
"PCIe Slot Designations" on page 72
■
"DVD, Storage Drive, and USB Designations" on page 73
■
Fan Module Slot Designations

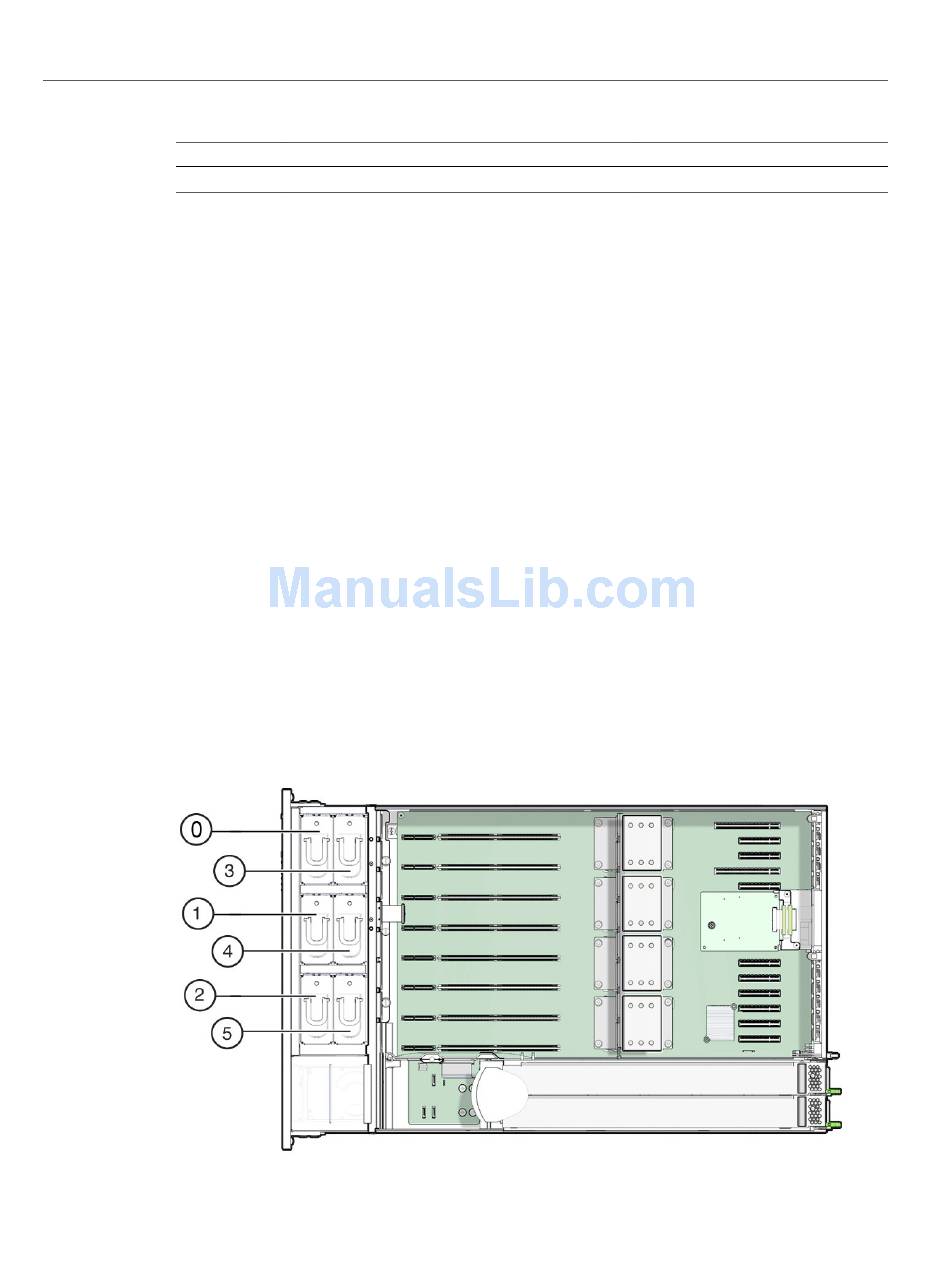

The six fan module slots are at the front of the server and are set in two rows of three slots. The
slots are designated from left to right. As pictured in the illustration below, the three front row
slots are designated as: FM0, FM1, and FM2. The three back row slots are: FM3, FM4, and
FM5.
Component Serviceability, Locations, and Designations
Call Out Description
16 Server chassis
Servicing the Server 69
