Customizing the Core
The AXI Bridge for PCI Express core customization parameters are described in the
following sections.
Basic Parameter Settings
The initial customization screen shown in
for the core, including the component name, reference clock frequency, and silicon type.
X-Ref Target - Figure 4-1
AXI Bridge for PCI Express v2.4
PG055 June 4, 2014
[Ref 9].
[Ref 8].
Figure 4-1

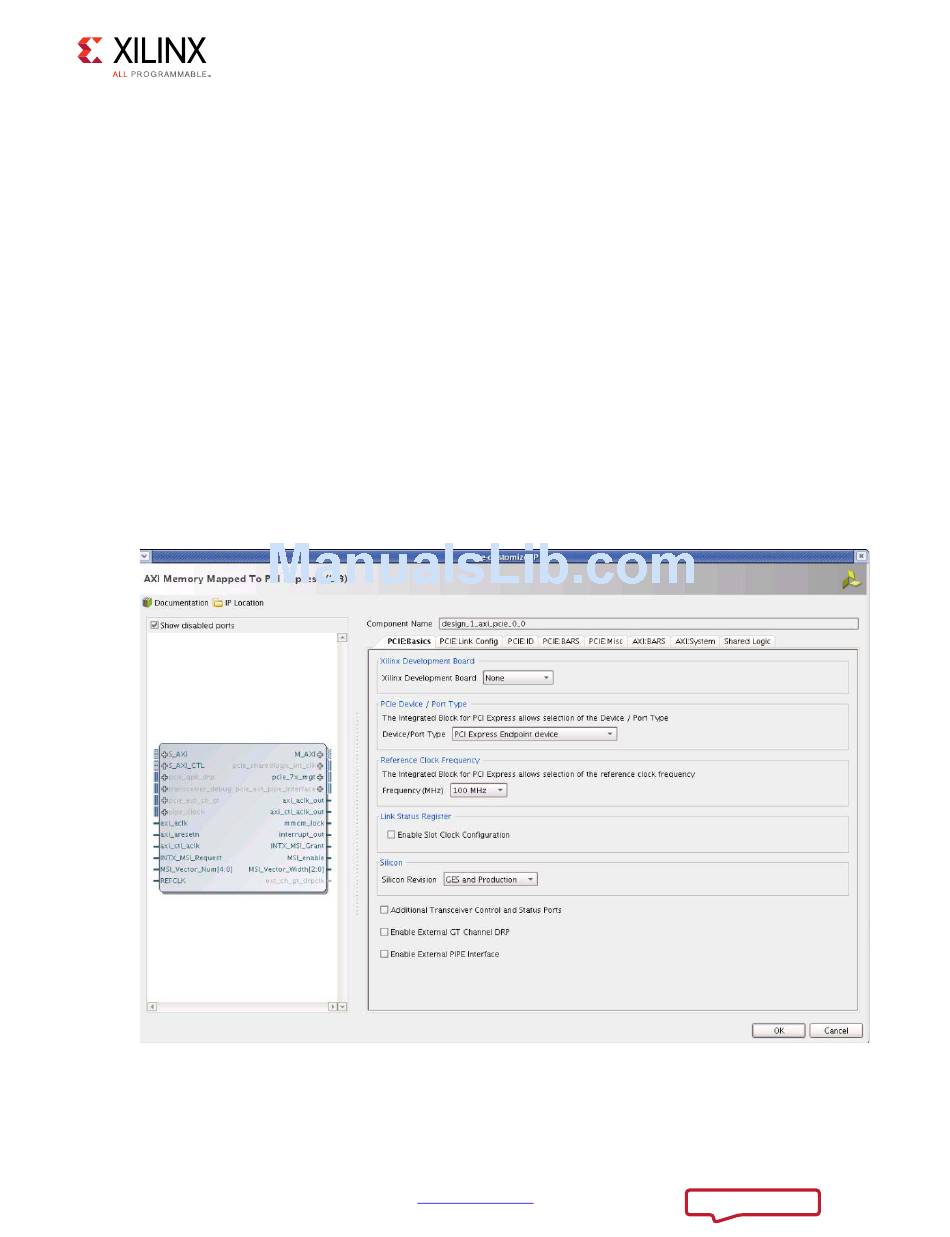

Figure 4-1: Basic Parameter Settings
