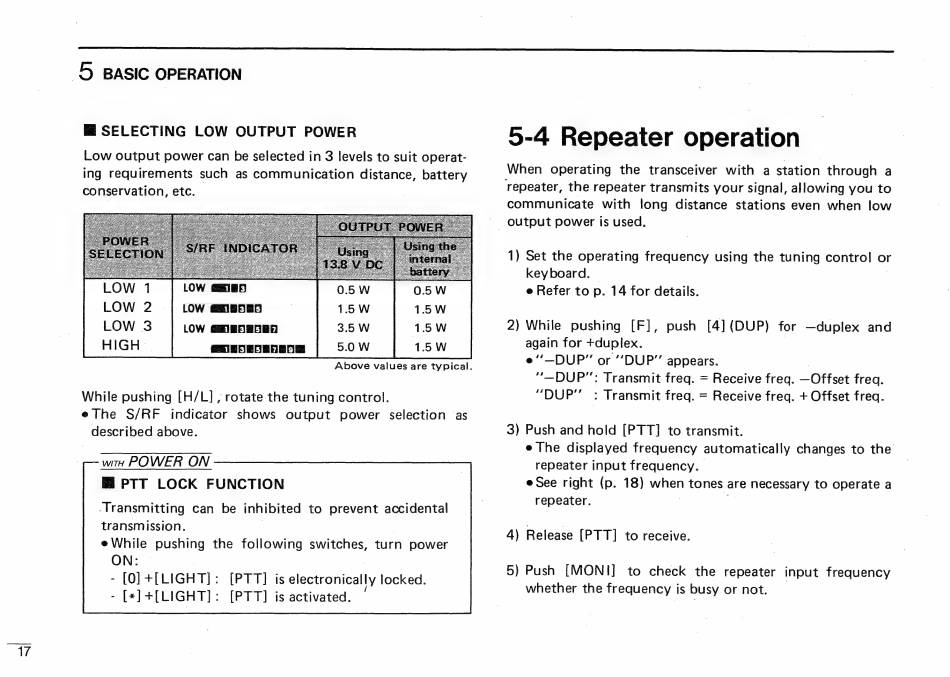

.D) BASIC OPERATION
E SELECTING LOW OUTPUT POWER
Low output power can be selected in 3 levels to suit operat-
ing requirements such as communication distance, battery
conservation, etc.
LOW &BDBD
LOW 1882080
GEIBOBDEBDBDE
Above values are typical.
While pushing [H/L] , rotate the tuning control.
eThe S/RF indicator shows output power selection as
described above.
witu POWER ON
E PTT LOCK FUNCTION
'Transmitting can be inhibited to prevent accidental
transmission.
e While pushing the following switches, turn power
ON: |
- [O] -K[LIGH T] : [PTT] is electronically locked.
- [*]+[LIGHT]: [PTT] is activated.
5-4 Repeater operation
When operating the transceiver with a station through a
repeater, the repeater transmits your signal, allowing you to
` output power is used.
1) Set the operating frequency using the ш. control or
key board.
e Refer to D. 14 for details.
2) While pushing [F], push [4] (DUP) for —duplex and
again for +duplex.
e''—DUP" or "DUP" appears.
""—DUP"": Transmit freq. = Receive freq. —Offset freq.
"DUP" : Transmit freq. = Receive freq. + Offset freq.
3) Push and hold [PTT] to transmit.
e The displayed frequency automatically changes to the
repeater input frequency.
e See right (p. 18) winen tones are necessary to operate a
repeater.
4) Release [PTT] to receive.
5) Push [MONI] to check the repeater input frequency
whether the frequency is busy or not.
