BASIC OPERATION

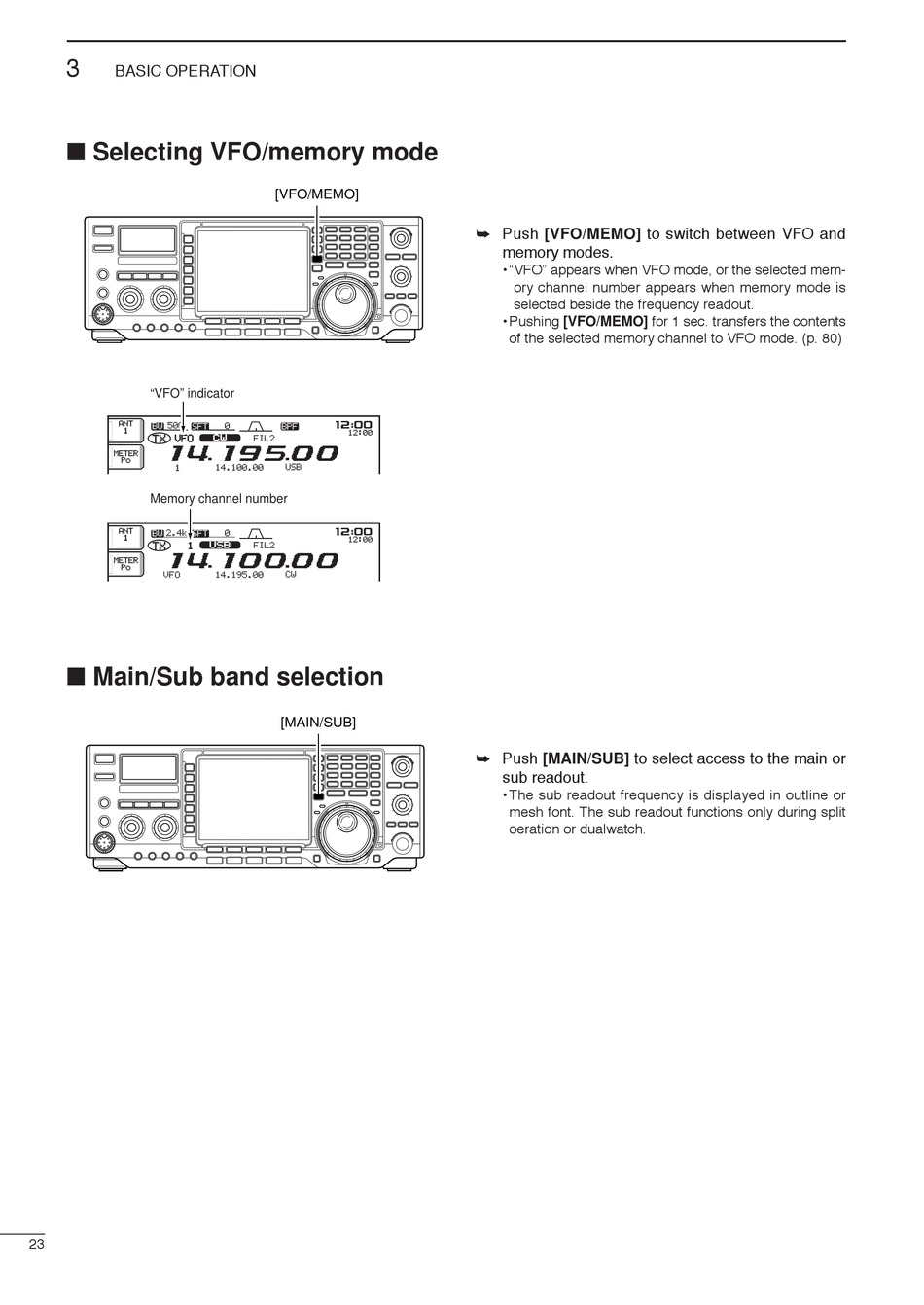

■ Selecting VFO/memory mode

"VFO" indicator
ANT ANT
BW BW 500 500 SFT SFT
1
TX T X VFO VFO
qr.qot.pp
METER METER
Po Po
1
Memory channel number
ANT ANT
BW BW 2.4k 2.4k
SFT SFT
1
1
TX T X
qr.qpp.pp
METER METER
Po Po
V F O VFO

■ Main/Sub band selection

23
[VFO/MEMO]
qw:pp
0 BPF BPF
12:00
C W C W
FIL2 FIL2
USB USB
14.100.00 14.100.00
qw:pp
0
12:00
U S B U S B
FIL2 FIL2
14.195.00 14.195.00 CW CW
[MAIN/SUB]
➥ Push [VFO/MEMO] to switch between VFO and
memory modes.
• "VFO" appears when VFO mode, or the selected mem-
ory channel number appears when memory mode is
selected beside the frequency readout.
• Pushing [VFO/MEMO] for 1 sec. transfers the contents
of the selected memory channel to VFO mode. (p. 80)
➥ Push [MAIN/SUB] to select access to the main or
sub readout.
• The sub readout frequency is displayed in outline or
mesh font. The sub readout functions only during split
oeration or dualwatch.
