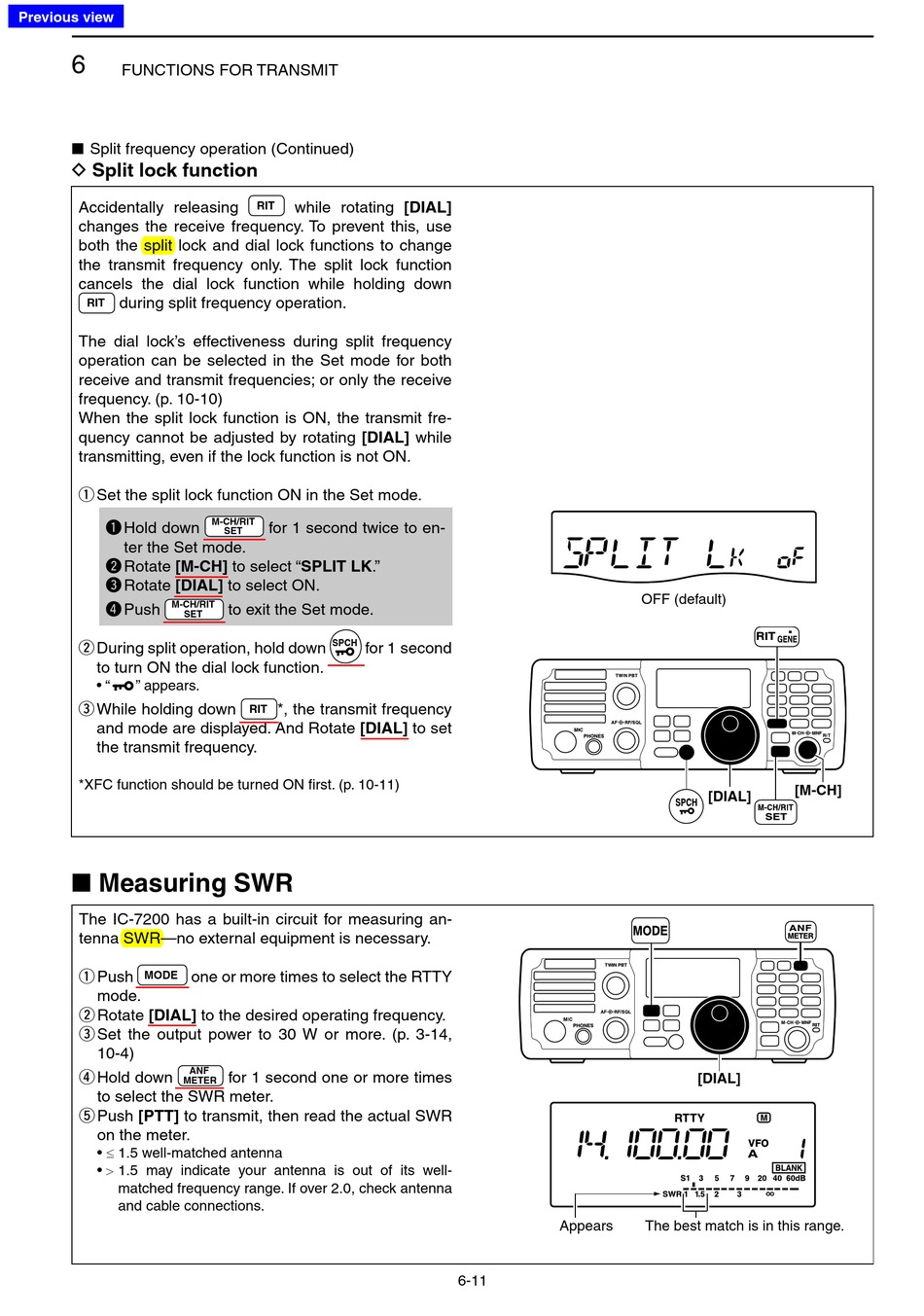

6
FUNCTIONS FOR TRANSMIT
Split frequency operation (Continued)
■
D Split lock function
Accidentally releasing
changes the receive frequency. To prevent this, use
both the split lock and dial lock functions to change
the transmit frequency only. The split lock function
cancels the dial lock function while holding down
during split frequency operation.
RIT
The dial lock's effectiveness during split frequency
operation can be selected in the Set mode for both
receive and transmit frequencies; or only the receive
frequency. (p. 10-10)
When the split lock function is ON, the transmit fre-
quency cannot be adjusted by rotating [DIAL] while
transmitting, even if the lock function is not ON.
Set the split lock function ON in the Set mode.
q
q Hold down
ter the Set mode.
w Rotate [M-CH] to select "SPLIT LK."
e Rotate [DIAL] to select ON.
M-CH/RIT
r Push
SET
During split operation, hold down
w
to turn ON the dial lock function.
• " " appears.
While holding down
e
and mode are displayed. And Rotate [DIAL] to set
the transmit frequency.
*XFC function should be turned ON first. (p. 10-11)

■ Measuring SWR

The IC-7200 has a built-in circuit for measuring an-
tenna SWR—no external equipment is necessary.
Push one or more times to select the RTTY
MODE
q
mode.
Rotate [DIAL] to the desired operating frequency.
w
Set the output power to 30 W or more. (p. 3-14,
e
10-4)
ANF
Hold down
r
METER
to select the SWR meter.
[PTT] to transmit, then read the actual SWR
Push
t
on the meter.
• ≤ 1.5 well-matched antenna
• > 1.5 may indicate your antenna is out of its well-
matched frequency range. If over 2.0, check antenna
and cable connections.
while rotating [DIAL]
RIT
M-CH/RIT
for 1 second twice to en-
SET
to exit the Set mode.
SPCH
for 1 second
*, the transmit frequency
RIT
for 1 second one or more times
Appears
6-11
OFF (default)
[M-CH]
[DIAL]
[DIAL]
The best match is in this range.
