Commissioning
7.3

Filling the device with water

CAUTION
Risk of injury due to pump start-up
Hand injuries may occur when the pump starts up if you turn the pump motor at
the impeller using a screwdriver.
•
Switch the pump to a zero-volts state before turning the pump at the fan
wheel with a screwdriver.
ATTENTION
Device damage due to pump start-up
Pump damage may occur when the pump starts up if you turn the pump motor
at the impeller using a screwdriver.
•
Switch the pump to a zero-volts state before turning the pump at the fan
wheel with a screwdriver.

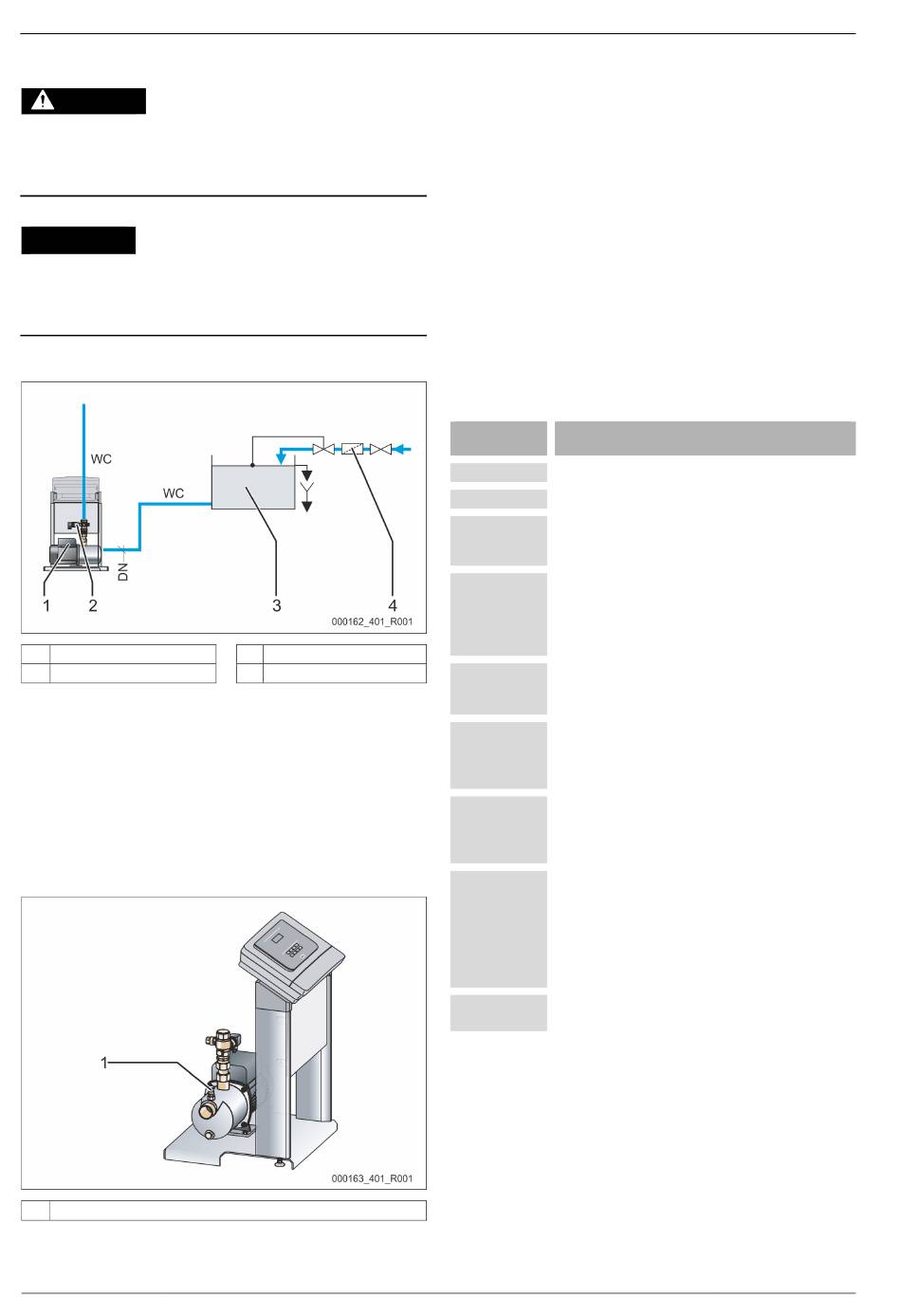

Fill water into the device:
1 Pump "PU"
2 "PIS" pressure transducer
1. Open the shut-off valve to the mains water supply.
–
The "BT" system separator vessel is filled with water from the public
water system.
2. Check the proper closing of the float valve in the system separator vessel.
–
Water must not flow from the device overflow.
3. Slowly open the "BV" shut-off valve in the intake line from the system
separator vessel to the pump.
–
The intake line and the pump are filled with water from the system
separator vessel.
Vent the pump:
1 "AV" vent screw
4. Remove the vent screw from the pump and vent the pump until bubble-free
water escapes.
28 — English
3 "BT" system separator vessel
4 "ST" dirt trap
Fillcontrol Auto —29.07.2024
–
If necessary, manually turn the pump using a screwdriver at the fan
wheel until bubble-free water escapes.
5. Tighten the vent screw and ensure that is does not leak.
The device is filled with water.
7.4

Modifying the controller's start routine


Note!
During commissioning, you must once execute the start routine.
•
For information about controller operation,  9.1 "Operator panel",
 30.
The start routine is used to set the required parameters for the device
commissioning. It commences with the first activation of the controller and can be
run only once. Parameter changes or checks are possible after the start routine in
the customer menu is exited,  9.2.1 "Customer menu",  31.

Note!
Plug in the mains plug to provide power (230 V) to the controller.
You are now in Stop mode. The "Auto" LED on the operator panel has
extinguished.
Indication on the Meaning
display
Fillcontrol A Device name
Language Standard software in various languages.
Read the Prior to commissioning, read all of the operating instructions
operating and verify the proper assembly.
instructions
Min. op. pressure Specify the value for the minimum operating pressure (only
with "Magcontrol" make-up variant).
•
Calculation of the minimum operating pressure,  7.2
"Determining the P0 minimum operating pressure for
the controller",  27.
Safety valve Enter the value for the release pressure of the safety valve.
•
pressure
This value may be the same as the release pressure
of the system circuit safety valve.
Time Change the flashing display items for "Hour", "Minute", and
"Seconds" to the current time.
•
The time of an alarm will be stored in the fault
memory.
Date Change the flashing display items for "Day", "Month", and
"Year" to the current date.
•
The date of an alarm will be stored in the fault
memory.
Terminate The system displays this message after a successfully
routine? completed start routine.
Select "Yes" or "No" on the controller display and confirm
Yes
with "OK" on the controller operator panel.
•
Yes: The start routine is terminated, the device
automatically switches to Stop mode.
•
No: The start routine restarts.
2.0 bar The pressure is displayed only in "Magcontrol" make-up
mode.
STOP

Note!
After successful conclusion of the start routine, you are in Stop mode. Do
not yet switch to Automatic mode.

Note!
Set the "Magcontrol" or "Levelcontrol" make-up variant in the Customer
menu,  9.2.1 "Customer menu",  31.
7.5

Parametrising the controller in the Customer menu

Use the Customer menu to display or correct system-specific values. In the course
of commissioning, the factory settings must be adjusted for the system-specific
conditions.
–
For adjusting the default settings,  9.2 "Configuring settings in the
controller",  30.
