Description of the device

3.6

Residual risks

This device has been manufactured to the current state of the art. However, some
residual risk cannot be excluded.
CAUTION
Risk of burns on hot surfaces
Hot surfaces in heating systems can cause burns to the skin.
•
Wear protective gloves.
•
Please place appropriate warning signs in the vicinity of the device.
CAUTION
Risk of injury due to pressurised liquid
If installation, removal or maintenance work is not carried out correctly, there is
a risk of burns and other injuries at the connection points, if pressurised hot
water or hot steam suddenly escapes.
•
Ensure proper installation, removal or maintenance work.
•
Ensure that the system is de-pressurised before performing installation,
removal or maintenance work at the connection points.
WARNING
Risk of injury due to heavy weight
The devices are heavy. Consequently, there is a risk of physical injury and
accidents.
•
Use suitable lifting equipment for transportation and installation.
4 Description of the device
4.1

Description

The device is a make-up unit that is intended to maintain the water pressure and
provide mains make-up water in a system circuit.
•
The pump draws water from a mains water supply via a system separator
tank and pumps it into the system circuit.
•
The controller regulates and monitors the make-up process.
The device is designed for these system circuits:
•
Heating water systems
•
Cooling water systems
•
Solar circuits
The device is used in combination with a user-supplied open system separator
tank.

Note!
An application without system separator tank is possible.
–
For customised design and adjustment,  12.1 "Reflex Customer
Service",  35.

Note!
In a solar circuit, you must have installed a system separator tank to
ensure a water/glycol mixture for the circuit.

Note!
It is possible to use the device for the initial filling with mains water into the
system circuit.
22 — English
4.2

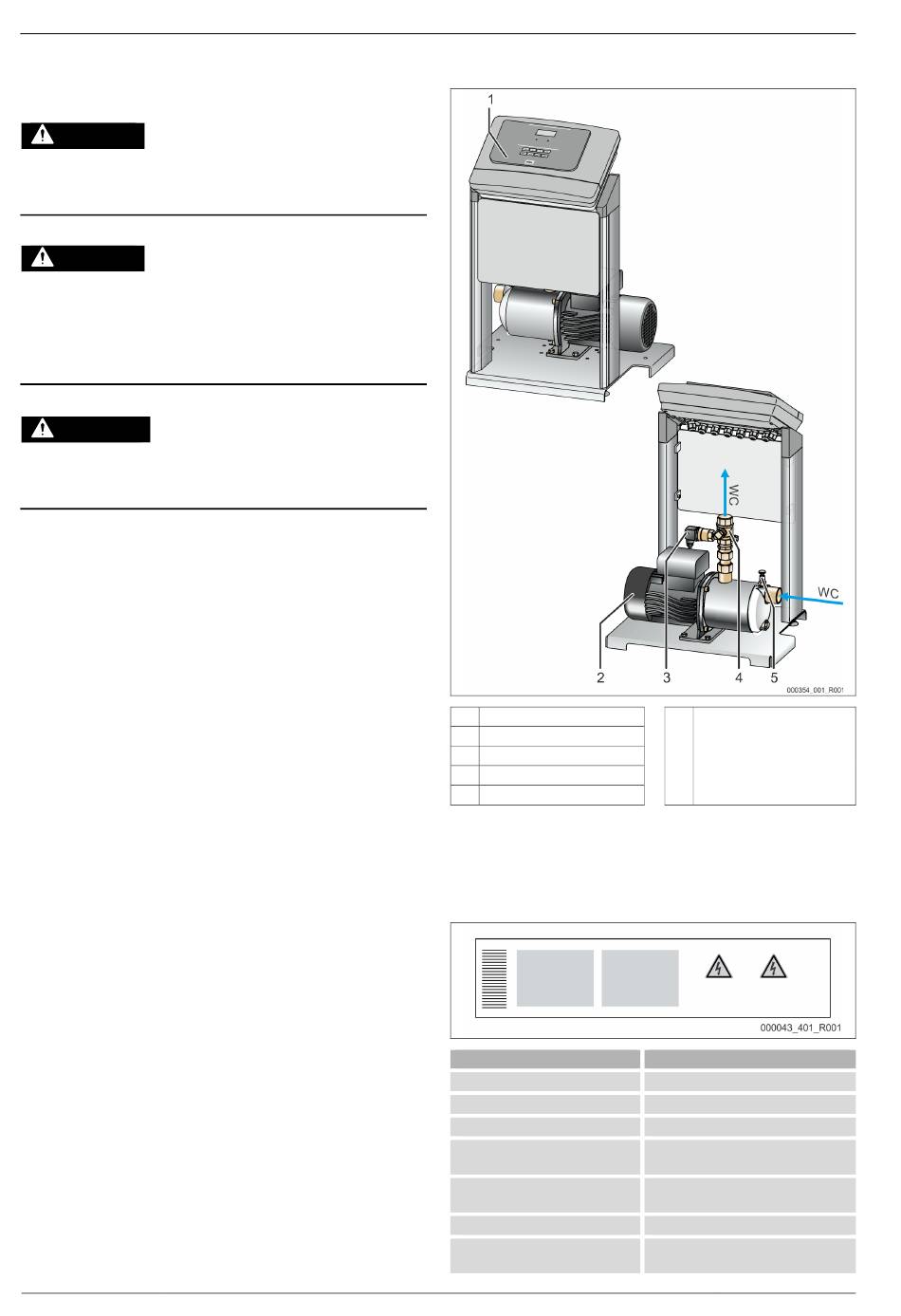

Overview

1 Control Basic controller
2 "PIS" pressure transducer
3 Shut-off valve to "BV" system
4 "AV" venting screw
5 Pump
4.3

Identification

4.3.1

Type plate

The nameplate provides information about the manufacturer, the year of
manufacture, the manufacturing number and the technical data.
Information on the type plate
Type
Serial No.
min. / max. allowable pressure P
max. continuous operating
temperature
min. / max. allowable temperature /
flow temperature TS
Year built
min. operating pressure set up on
shop floor
Fillcontrol Auto —29.07.2024
WC Connections for the mains
water make-up lines
•
Intake line to pump
•
Pressure line to the
system circuit
Meaning
Device name
Serial number
Minimum/maximum permissible pressure
Maximum temperature for continuous
operation
Minimum / maximum permissible
temperature / TS flow temperature
Year of manufacture
Factory set minimum operating pressure
