VVM (Vector Voltmeter) Mode - Option 308
A/B and B/A Measurements
A/B and B/A Measurements
These measurements allow you to use the FieldFox A and B receivers, along
with an external source, to make ratioed measurements.
These measurements require the "Full 2-port S-parameters" option.

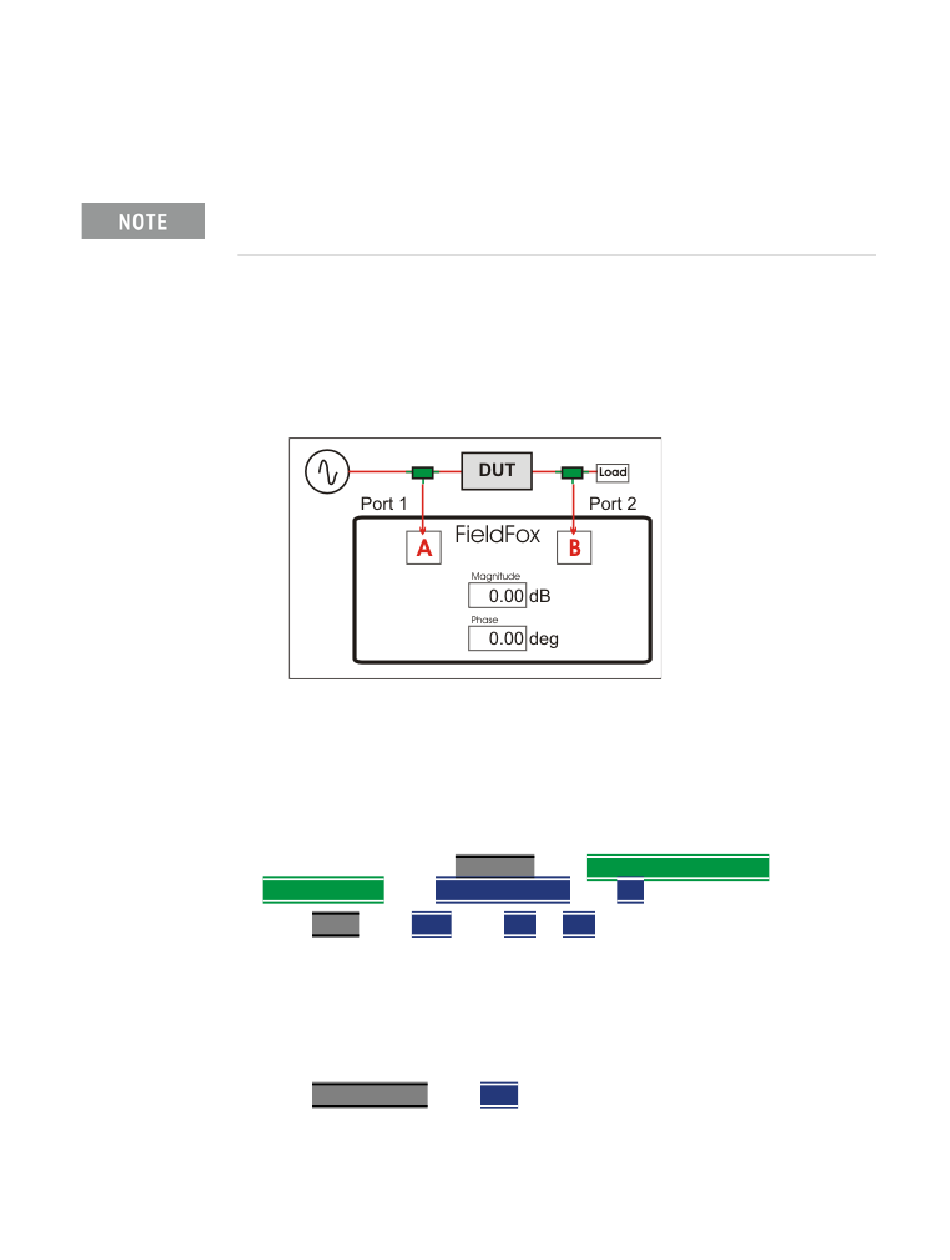

The image below shows a typical configuration for a B/A magnitude and phase
measurement of a 2-port DUT. This DUT can be an antenna / probe setup.
Using network analyzer terms, the image shows the A receiver as the reference
receiver which measures the signal that is applied to the DUT. The B receiver is
the test port receiver which measures the DUT response.
Figure 25-4
B/A Transmission measurement with external source
Procedure
1. Connect the external source's frequency reference output to the FieldFox
2. On the FieldFox, select System 7, then
3. Press Mode, then VVM, then
4. The FieldFox internal source is NOT used, so the output power setting is
5. To calibrate, replace the DUT with a THRU connection, preferably by
6. Press Meas Setup 4, then Zero.
7. Connect the DUT and measure.
620
Freq Ref IN on the top panel. If you are unable to use a common frequency
reference, then increase the IFBW to ensure you are measuring the peak of
the correct signal. After locating and tuning to the signal, you may be able
to lower the IFBW to reduce noise.
Frequency
Ref, then
Freq Ref Source
not relevant.
connecting together the two Power Splitters (shown in green). For low
frequency measurements, TEEs can be used.
System
Configuration, then
then Ext.
B/A
or
A/B
Keysight N9915-90020 User's Guide
