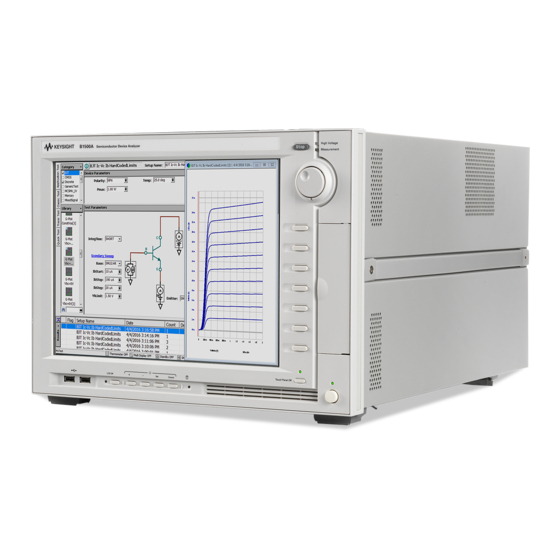

Keysight Technologies B1500A Configuration Manual

Semiconductor device analyzer
Hide thumbs Also See for B1500A:
Table of Contents

Advertisement

Quick Links

Download this manual See also: User Manual
Keysight Technologies
B1500A Semiconductor Device Analyzer
Configuration Guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the B1500A and is the answer not in the manual?

Questions and answers

Related Manuals for Keysight Technologies B1500A

Summary of Contents for Keysight Technologies B1500A

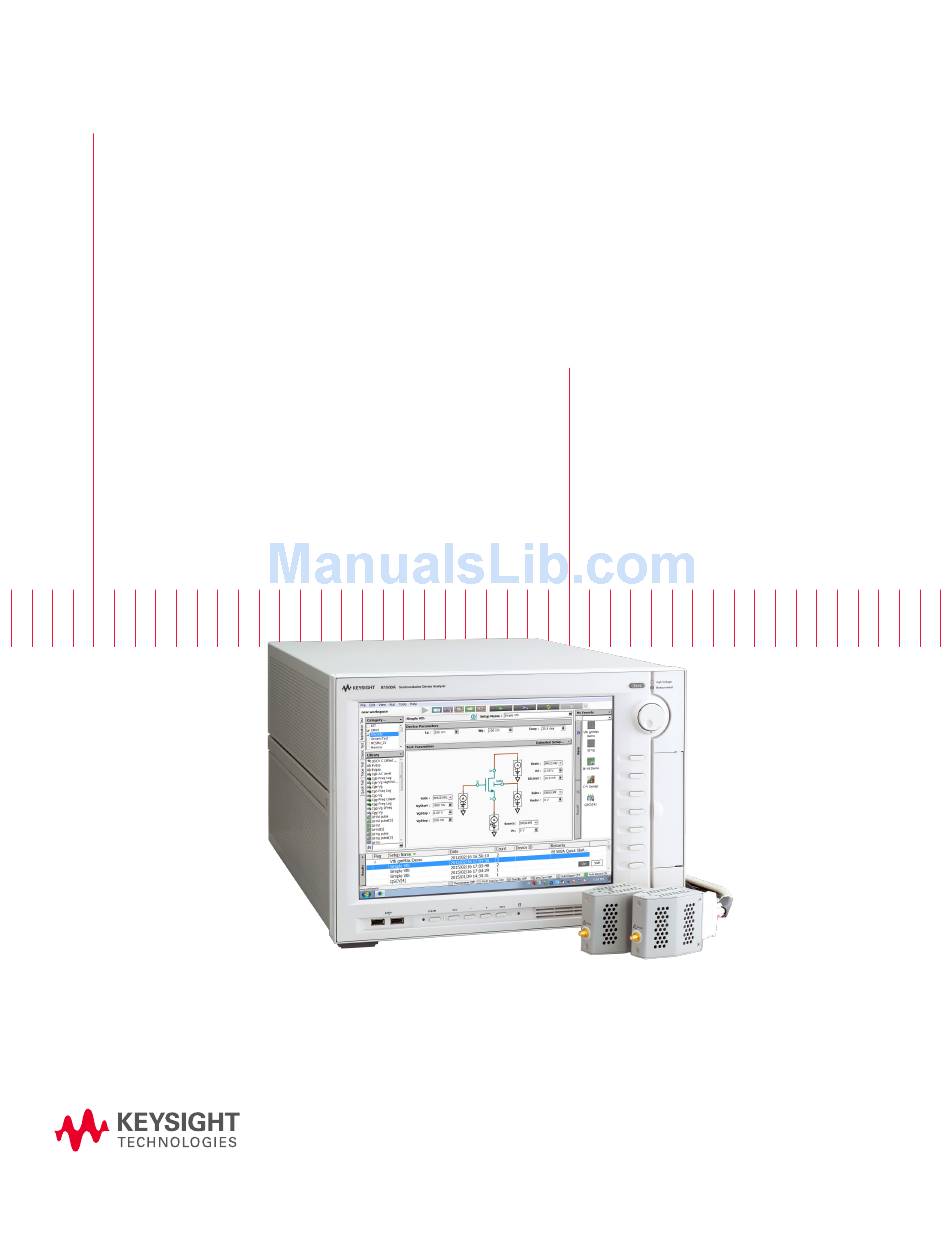

  • Page 1 Keysight Technologies B1500A Semiconductor Device Analyzer Configuration Guide...

  • Page 2: Table Of Contents

    Keysight EasyEXPERT group+ GUI based characterization software is available either on the B1500A’s embedded Windows 7 platform with 15-inch touch screen or on your PC to accelerate the characterization tasks. It supports efficient and repeatable device characterization in the entire...

  • Page 3: Supported Plug-In Modules

    03 | Keysight | B1500A Semiconductor Device Analyzer - Configuration Guide Supported Plug-in Modules The B1500A supports ten slots for plug-in modules. Slots Module Name Key Features occupied B1510A High power – Range up to 200 V/1 A with 4-quadrant operation source/monitor unit –...

  • Page 4: Maximum Module Configuration

    – Up to 4 HPSMUs – Up to 4 MCSMUs Only one single-slot MFCMU can be installed per B1500A mainframe. Up to five single- slot HV-SPGUs can be installed per mainframe. Up to five single-slot WGFMUs can be installed per mainframe.

  • Page 5: Mpsmu

    05 | Keysight | B1500A Semiconductor Device Analyzer - Configuration Guide B1500A Configuration Options and Contents Model/Option Description Contents Additional Information B1500A Semiconductor Device Analyzer B1500A mainframe Mainframe USB keyboard and mouse Stylus pen Interlock cable Triaxial cable Triaxial cable x 1, GNDU cable x 1...

  • Page 6: Hpsmu

    06 | Keysight | B1500A Semiconductor Device Analyzer - Configuration Guide B1500A Configuration Options and Contents, continued Model/Option Description Contents Additional Information Select package options (mandatory and mutually exclusive) - continued B1500A-A04 Standard Pack 4 - Flash Pack(Mid MPSMU Installed MPSMU module...

  • Page 7: B1500A Configuration Options And Contents

    07 | Keysight | B1500A Semiconductor Device Analyzer - Configuration Guide B1500A Configuration Options and Contents, continued Model/Option Description Contents Additional Information Select add-on packages (optional) - continued B1500A-A25 Add-on Package - Pulse HV-SPGU Installed HV-SPGU module Generator Unit (B1525A) 1ea,...
  • Page 8 08 | Keysight | B1500A Semiconductor Device Analyzer - Configuration Guide B1500A Configuration Options and Contents, continued Model/Option Description Contents Additional Information Select add-on packages (optional) - continued B1500A-A31 Add-on Package - B1530A 1ea, WGFMU Installed WGFMU module Connector Adaptor, Remote...
  • Page 9 09 | Keysight | B1500A Semiconductor Device Analyzer - Configuration Guide B1500A Configuration Options and Contents, continued Model/Option Description Contents Additional Information Select add-on packages (optional) - continued B1500A-A5F Add-on Pack - Test Fixture for Test Fixture Test fixture for packaged device (16442B)

  • Page 10: Wgfmu

    10 | Keysight | B1500A Semiconductor Device Analyzer - Configuration Guide B1500A Configuration Options and Contents, continued Model/Option Description Contents Additional Information WGFMU learning kit (optional) B1530A-0KN Self-paced Sample Program Sample devices Sample device is the assembly made from two SMA (female) Learning Kit for B1530A connectors, a printed circuit board, and a discrete device.

  • Page 11: B1500A Upgrade Options And Contents

    B1500A Upgrade Options and Contents The B1500AU allows to upgrade the B1500A mainframe and/or installed modules. Upgrade and installation must be performed at the service center. The serial number and the configured module information are needed to order the upgrade. In addition to the selected upgrade options, a few mainframe components can be required to replace for the prerequisite of the upgrade.
  • Page 12 EXPERT software revision 5.5 or later. If you do not have it, it is required to document order option SWS when you upgrade software revision 5.5 or later. B1500A mainframe upgrade/modification - It is required to upgrade/modify the mainframe at the service center. B1500AU-WN7 OS upgrade from Windows XP to Embedded OS...

  • Page 13: Accessories

    13 | Keysight | B1500A Semiconductor Device Analyzer - Configuration Guide Accessories SMU accessories Triaxial cable: Triaxial cable has three leads, a central conductor for the signal, an encapsulating conductor that shields the center signal by employing the same voltage thus decreasing a possible leakage current, and an outer conductor that serves as common.

  • Page 14: Cmu Accessories

    14 | Keysight | B1500A Semiconductor Device Analyzer - Configuration Guide Ground Unit cable and accessory GNDU has triaxial type connector as well as SMU. However the terminal assignment is different from SMU. Force and sense are integrated into a single terminal. A central conductor is Sense, the inner shield is Force, and the outer shield is Common. 16493L GND unit cable is designed for the GNDU that can sink the current up to 4.2 A.
  • Page 15 15 | Keysight | B1500A Semiconductor Device Analyzer - Configuration Guide CMU Accessories, continued SMU CMU Unify Unit (SCUU): The SCUU multiplexes the output from two SMUs (MPSMUs and/or HRSMUs) and the CMU. The SCUU outputs are two sets of Kelvin triaxial ports for IV measurement, and a pair of CMU-H and CMU-L of the shielded two terminal pair configuration for CV measurement. The SCUU also allows the SMUs to act as DC bias source in conjunction with the CMU.

  • Page 16: Hv-Spgu Accessories

    16 | Keysight | B1500A Semiconductor Device Analyzer - Configuration Guide HV-SPGU Accessories SPGU cable Model/Option Description Contents Qty Additional Information 16493P SPGU Cable (SMA-to-Coaxial) Order with the option. Select cable length option 16493P-001 SPGU Cable (1.5 m) SPGU cable...

  • Page 17: Wgfmu Accessories

    17 | Keysight | B1500A Semiconductor Device Analyzer - Configuration Guide WGFMU Accessories Model/Option Description Contents Qty Additional Information 16493R Order with the option. WGFMU to RSU cable length option 16493R-001 WGFMU to RSU cable (0.6 m) WGFMU to RSU cable 16493R-002 WGFMU to RSU cable (2.4 m)

  • Page 18: Other Accessories

    18 | Keysight | B1500A Semiconductor Device Analyzer - Configuration Guide Other Accessories Test fixture: Keysight 16442B test fixture is designed for testing packaged devices and electronic components. You can mount the suitable socket module on the 16442B, which allows you to easily connect various devices to measurement units. The 16442B has 6 triaxial, 6 BNC, 1 GNDU input ports and interlock connector.

  • Page 19: Stylus Pen

    19 | Keysight | B1500A Semiconductor Device Analyzer - Configuration Guide Other Accessories, continued Test fixture accessories Model/Option Description Contents Additional Information N1254A Accessories for instruments and fixtures Order with the options. Extra module options N1254A-200 Socket module for 4-pin TO package...

  • Page 20: Interlock Cable

    20 | Keysight | B1500A Semiconductor Device Analyzer - Configuration Guide Other Accessories, continued Interlock cable and accessory Model/Option Description Contents Additional Information 16493J Interlock cable Order with the option. Select cable length option 16493J-001 Interlock cable (1.5 m) Interlock cable...
  • Page 21 21 | Keysight | B1500A Semiconductor Device Analyzer - Configuration Guide Other Accessories, continued BNC cable: The maximum voltage is 40 V, and Maximum current is 200 mA. Model/Option Description Contents Additional Information 16493B Coaxial Cable Order with the option.
  • Page 22 22 | Keysight | B1500A Semiconductor Device Analyzer - Configuration Guide Other Accessories, continued Connector Plate: Connector plate can be used to feed the cable through a shielding box. Model/Option Description Contents Additional Information 16495F Connector Plate with 12 Order with the option.
  • Page 23 23 | Keysight | B1500A Semiconductor Device Analyzer - Configuration Guide Other Accessories, continued Connector Plate , continued Model/Option Description Contents Additional Information 16495H Connector Plate with 6 Order with the option. Triax., 6 BNC, Interlock and GNDU connectors Select connector type option...
  • Page 24 24 | Keysight | B1500A Semiconductor Device Analyzer - Configuration Guide B1500A Configuration Example-1. For IV characterization of 2-terminal device Model/Option Description B1500A Semiconductor Device Analyzer Mainframe B1500A-015/030 1.5 m or 3 m length of bundled cables B1500A-A00 Empty package for custom...
  • Page 25 25 | Keysight | B1500A Semiconductor Device Analyzer - Configuration Guide B1500A Configuration, continued Example-3. For IV characterization of 4-terminal device with ASU Model/Option Description B1500A Semiconductor Device Analyzer Mainframe B1500A-015/030 1.5 m or 3 m length of bundled cables...
  • Page 26 26 | Keysight | B1500A Semiconductor Device Analyzer - Configuration Guide B1500A Configuration, continued Example-5. For 50µs pulse using one MCSMU for 4-terminal device Model/Option Description B1500A Semiconductor Device Analyzer Mainframe B1500A-015/ 030 1.5 m or 3 m length of...
  • Page 27 27 | Keysight | B1500A Semiconductor Device Analyzer - Configuration Guide B1500A Configuration, continued Example-7. For flash memory cell characterization (2 pulse channels) Model/Option Description B1500A Semiconductor Device Analyzer Mainframe B1500A-015/ 030 1.5 m or 3 m length of bundled cables...
  • Page 28 28 | Keysight | B1500A Semiconductor Device Analyzer - Configuration Guide B1500A Configuration, continued Example-9. For NBTI measurement using WGFMU with DC probe Model/Option Description B1500A Semiconductor Device Analyzer Mainframe B1500A-015/ 030 1.5 m or 3 m length of bundled cables...
  • Page 29 29 | Keysight | B1500A Semiconductor Device Analyzer - Configuration Guide Evolving Since 1939 For more information on Keysight Technologies’ products, applications or services, please contact your local Keysight Our unique combination of hardware, software, services, and people can help you office.
